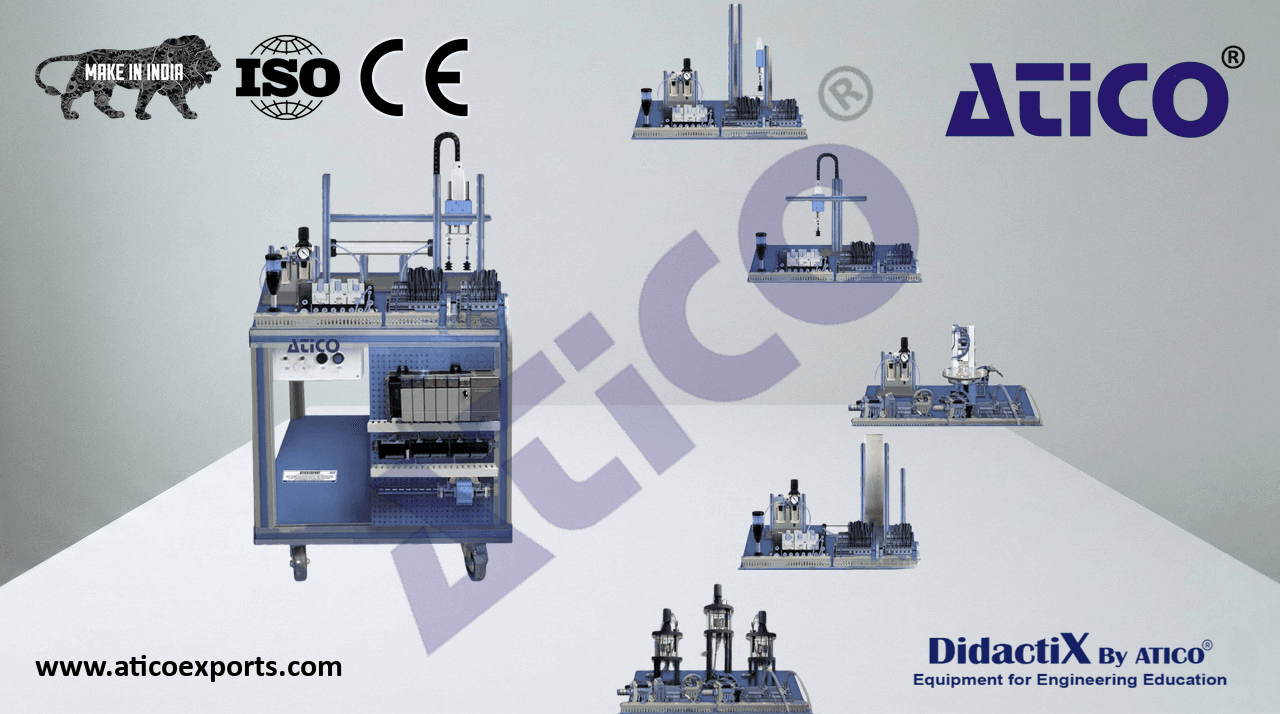

Mounting Workstation

The is a mounting workstation commanded by a PLC that provides pieces to the system and mount them inside of the base pieces.

ATENG 12542 — Mounting Workstation

Mounted with aluminum profiles.

15 pieces.

Vertical storage for pieces.

• Electrical panel:
  Differential magneto-thermal switch.
• Power supply of 24 VDC.
• Control panel:
  Mushroom head emergency stop push button switch.
  Start and Stop pushbuttons.
  Switch for manual or automatic operation.
  Light indicator.
  Led stack light.
  Terminal block to connect the individually identified inputs and outputs of the unit.
• Pneumatic circuit:
• Air treatment unit:
  Filter-regulator with water trap.
  Manometer with double scale indicator.
  Shut-off valve.
  2 Simple acting pneumatic actuators.
  Rodless pneumatic actuator with bands.
  2 Pneumatic double acting inside grip clamps.
  Rotary pneumatic actuator.
• Rotary pneumatic actuator with 50 mm stroke rod.
  2 Pneumatic monoestable 3/2 solenoid valves.
  4 Pneumatic bistable 5/2 solenoid valves.
  Spring centered pneumatic 5/3 solenoid valve.
  Individually identified tubes and push in fittings.
• Sensors:
• Linear potentiometer of 20 mm stroke.
  Inductive effect sensor.
  2 limit switches.
  10 reed effect limit switches.
• Fault generation module:
  Box with lock (with key).
  Allows to generate 20 different faults.
  Each fault is generated through toggle switches.
  2

Specifications

• Recommended accessories: (Not included)
• AE-PLCB. Basic PLC Trainer (optional).
  The AE-PLCB is available with different PLC manufacturer models.
• N-ALI02: is the Main power supply.
• N-CPU: is the PLC CPU that contain the digital In/Out terminals. All CPUs types allow to connect with the PC (for programming and
  monitoring) and the other modules of the trainer through an Ethernet network.
• N-ESA: is the analog In/Out module used to acquire and generate analog signals.
• N-HMIB: is the Human Machine Interface module with a touch screen.
• N-MT: is the test module with switches, push buttons and potentiometers to generate digital and analog signals.
  Software to program the PLC and the HMI device.
• AE-CP. Air compressor module (optional).
• Low noise level: 40 dB maximum.
• Capacity of the boiler: 9 l.
• Power: 340 W.
• Air intake: 50 l/min.
• Maximum pressure: 8 bar or 0.8 MPa.
  It includes hoses to easy connect with the units.
  Cables and Accessories, for normal operation.
