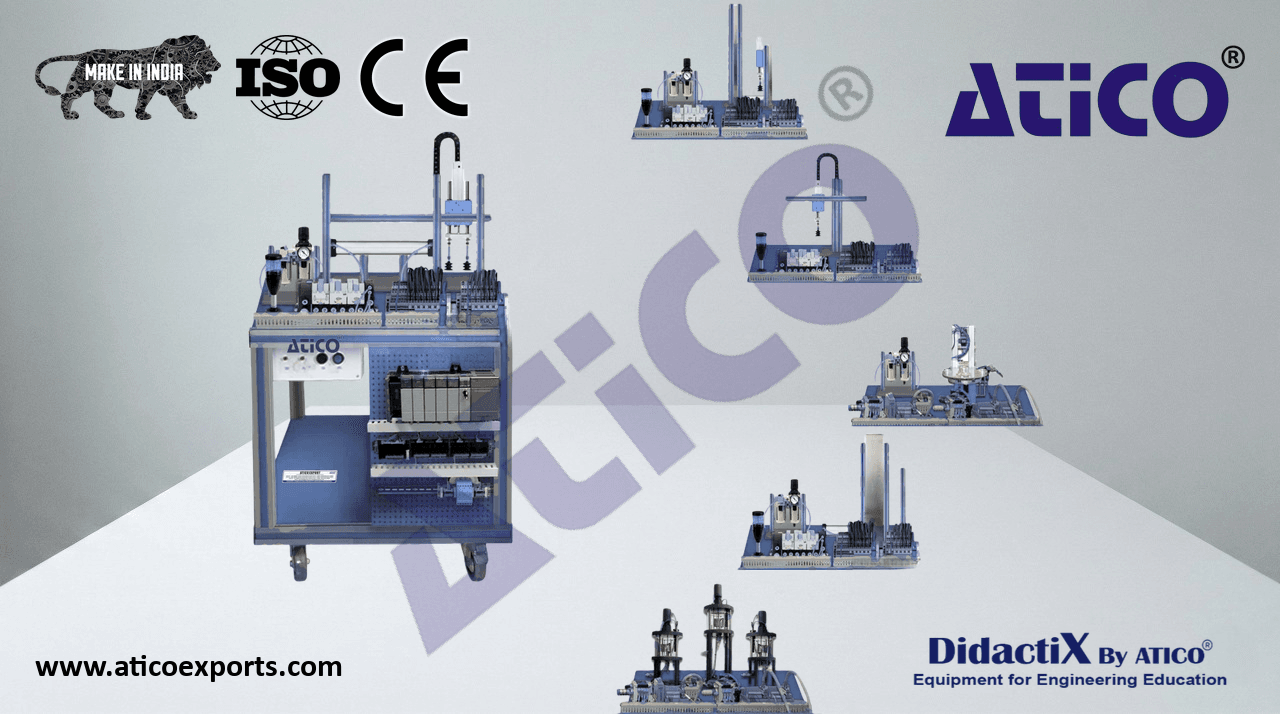

Multi-Part Feeding Workstation

The is a Multiple Pieces Feeder Workstation commanded by a PLC, which provides three different types of pieces to be assembled in one piece by the industrial robot of the "ATENG 12583" unit.

ATENG 12539 — Multi-Part Feeding Workstation

Mounted with aluminum profiles.

15 pieces made of aluminum and plastic of different colors.

Vertical storage for pieces.

• Control panel:
  Emergency pushbutton.
  Start/Stop pushbuttons.
  Manual/automatic switch.
  Light indicators.
  Terminal block to connect the individually identified inputs and outputs of the unit.
• Pneumatic circuit:
• Air treatment unit:
  Filter-regulator with water trap.
  Manometer with double scale indicator.
  Shut-off valve.
  3 Double acting pneumatic actuators.
  3 Pneumatic monostable 5/2 solenoid valves.
• Sensors:
  3 IR beam detectors.
  6 reed effect limit switches.
• Fault generation module:
  Box with lock with key.
  Allows generating 20 different faults.
  Each fault is generated through toggle switches.
  2

Specifications

• Recommended accessories: (Not included)
• AE-PLCB. Basic PLC Trainer (optional).
• The AE-PLCB is available with different PLC manufacturer models. All models contain the following modules:
• N-ALI02: is the Main power supply.
• N-CPU: is the PLC CPU that contain the digital In/Out terminals. All CPUs types allow to connect with the PC (for programming and
  monitoring) and the other modules of the trainer through an Ethernet network.
• N-ESA: is the analog In/Out module used to acquire and generate analog signals.
• N-HMIB: is the Human Machine Interface module with a touch screen.
• N-MT: is the test module with switches, push buttons and potentiometers to generate digital and analog signals.
  Software to program the PLC and the HMI device.
• AE-CP. Air compressor module (optional).
• Low noise level: 40 dB maximum.
• Capacity of the boiler: 9 l.
• Power: 340 W.
• Air intake: 50 l/min.
• Maximum pressure: 8 bar or 0.8 MPa.
  It Includes hoses to easy connect with the units.
• ATENG 12583. Robotic Arm Workstation (optional).
  Six degrees of liberty robotic arm.
  Console to program the robotic arm.
  Electric drill to install in the robotic arm.
  Pneumatic double acting gripper to install in the robotic arm.
  Cables and Accessories, for normal operation.
