Multipoints Engine with Electronic Injection and Gas/LPG Feeding System

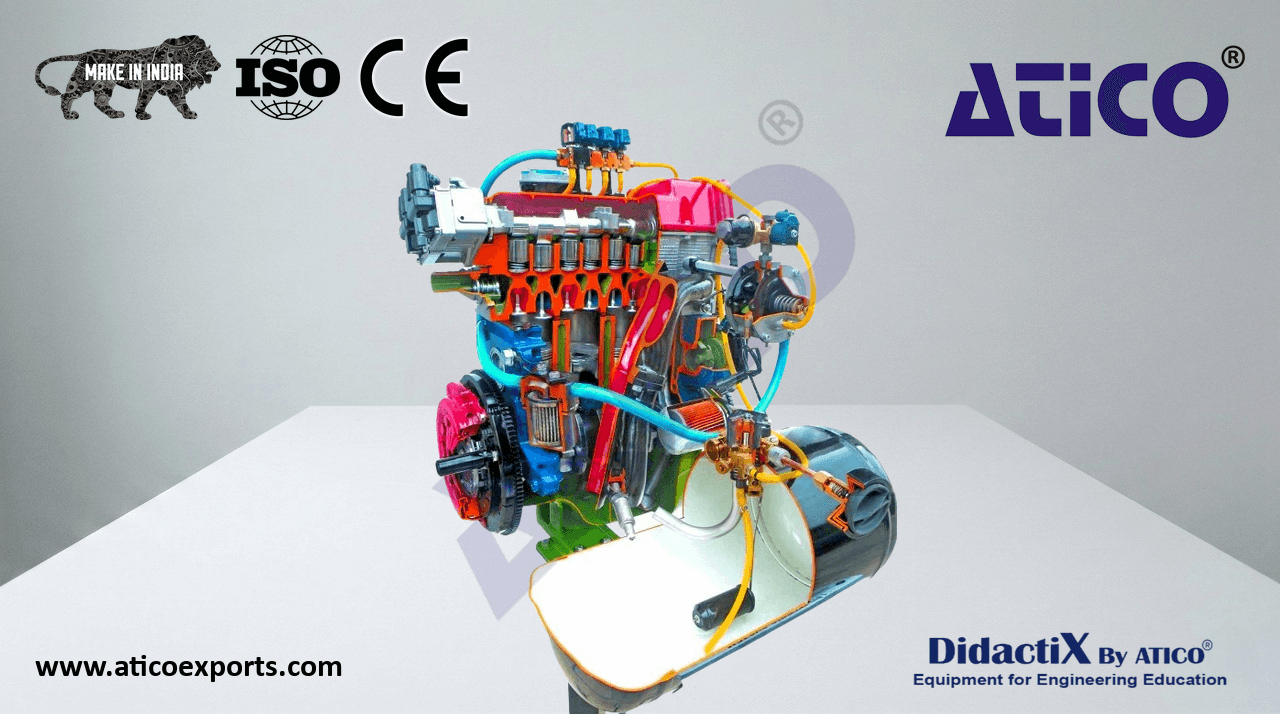

This is an accurate cut-away of an engine with the main components of two different feeding circuits — Gas and LPG. **Gas Feeding Circuit

Specifications

**

• Electro-Injectors
• Throttle Body
• Rail
• Sensors / Phonic Wheel
• Lambda Probe
• Electronic Ignition

LPG Feeding Circuit Specifications:

• Reducer
• LPG Electrovalve
• LPG Tank with Float Device for Charge Level
• Charge Socket
• Filter
• Rail and LPG Electro-Injectors

Engine Specifications:

• 4 cylinders, 8 valves
• Displacement: 1242 cc
• Bore and stroke: 70. 8 x 78. 8
• Overhead camshaft (OHC)
• Multi-point electronic injection (MPI)
• Toothed belt
• 12V Alternator
• Oil Pump
• Operates manually via hand crank
• Mounted on a stand with wheels

Weight & Dimensions:

• Size: 70cm x 80cm x 95cm (L x W x H)
• Net Weight: 86 kg
• Gross Weight: 120 kg.
