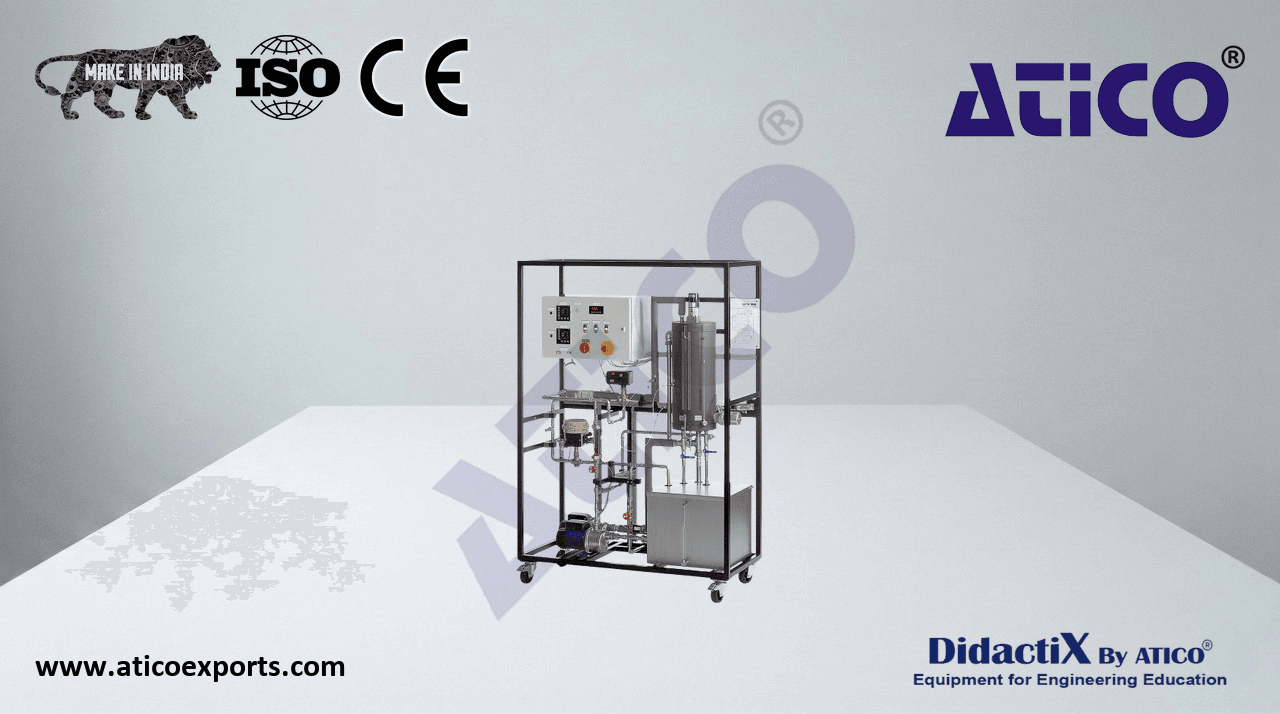

Multivariable control: stirred tank

With RT 682 the complexities of a multivariable control system can be learned in a practical manner. The model for the controlled process is a typical application from process engineering: A chemical reaction taking place in a heated stirred tank. The reactants entering the stirred tank are pre-heated by the outflowing products in order to enhance energy efficiency. Learn about Multivariable control: stirred tank specifications for optimal educational outcomes..

• coupled level and temperature control in one stirred tank
• circuit with stirred tank, collecting tank and pump
• heat recovery with heat exchanger
• stirred tank with double jacket and heater; level display for tank and jacket
• temperature control with heater and 3-way motorised valve as actuators
• level control with pneumatic control valve as actuator
• temperature controller and level controller configurable and parameterisable with software
• 2-point controller for constant temperature in collecting tank via external cooling water
• optional process control software RT 650.60 via PROFIBUS DP interface
