Multivariable control: vacuum degassing

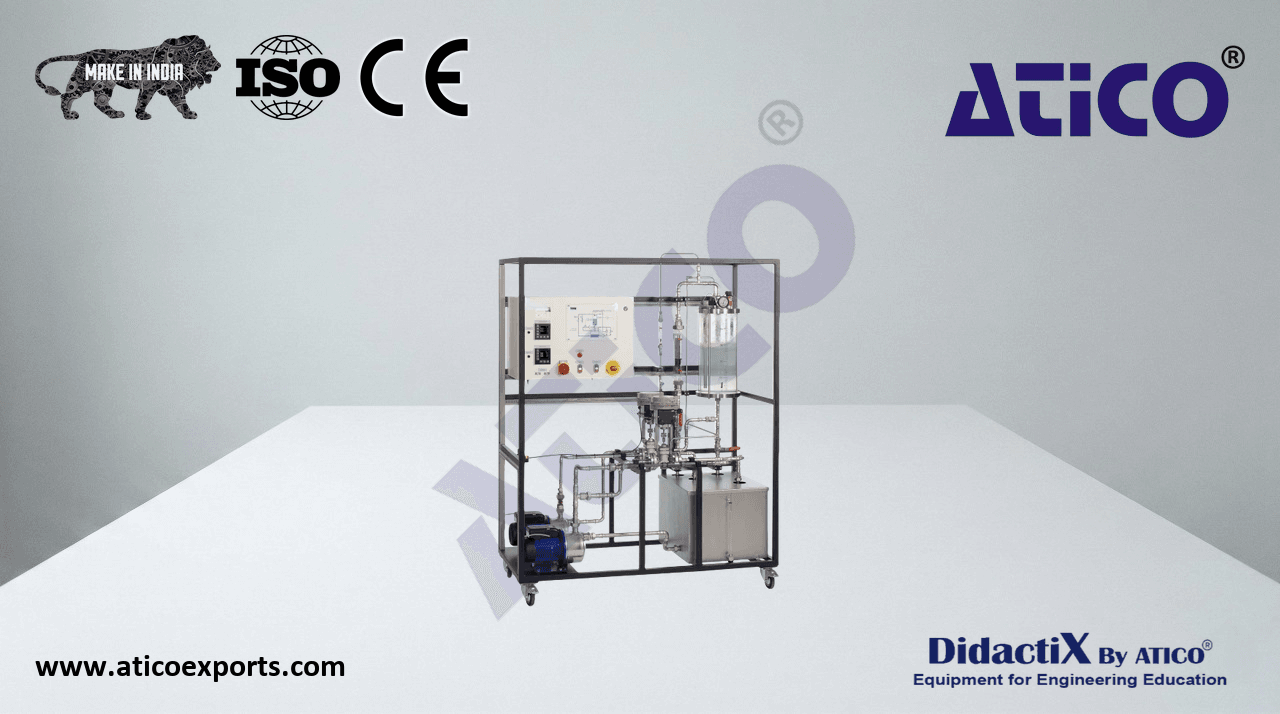

With RT 681 the complexities of a multivariable control system can be learned in a practical manner. The model for the controlled process is a typical application from process engineering: separation of gas dissolved in liquid. The pressure falls below the vapour pressure of the dissolved gas in a vacuum tank, so that it passes into the gas phase and can be removed (desorption). Learn about Multivariable control: vacuum degassing suppliers for optimal educational outcomes..

• coupled level and pressure control in one vacuum tank
• water circuit with vacuum tank, collecting tank, pump and ambient air input device
• water jet pump to generate a negative pressure in the vacuum tank
• circuit with pump for operation of the water jet pump
• level control with pneumatic control valve as actuator
• pressure control with pneumatic control valve in the circuit for operation of the water jet pump
• level controller and pressure controller configurable and parameterisable with software
• optional process control software RT 650.60 via PROFIBUS DP interface
