Natural vibration on a ship model

Nowadays, experiment-based vibration analysis is an essential component in shipbuilding design and development.

• vibration behaviour of a model ship in air and in water (with additional tank)

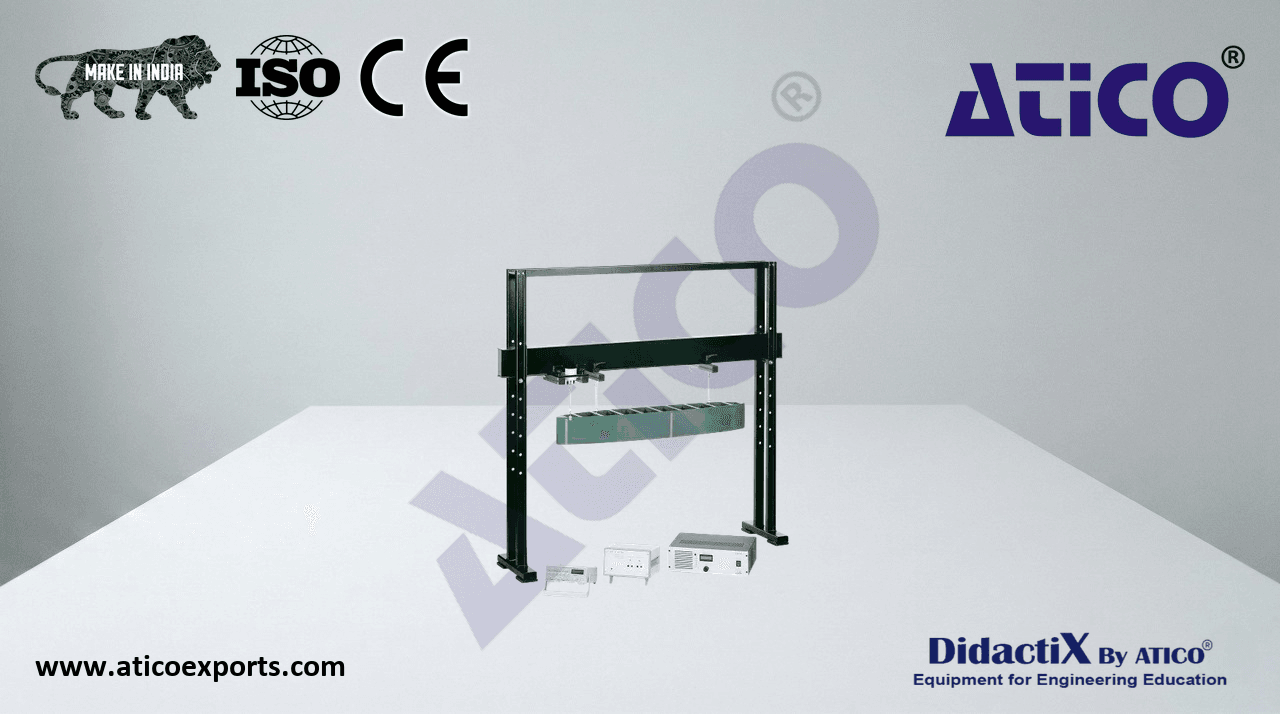

• model ship mounted on springs; vibration excitation and acceleration measurement at any point
• frame with height-adjustable cross-member for attaching the model
• high natural frequency of the cross-member owing to enclosed box cross-section with high rigidity and low weight
• plastic model ship with elliptical lines plan and 9 ribs
• capacitive acceleration sensor with measuring amplifier, freely positionable
• vibration exciter with power amplifier and function generator: sinusoidal, triangular or rectangular signal
• possible to display measured values on an oscilloscope (not included)
