Nonlinear Circuit Chaotic Experimental Apparatus for Electromagnetism Physics Lab

This Nonlinear Circuit Chaotic Experimental Apparatus for Electromagnetism Physics Lab is designed for studying nonlinear systems, bifurcation phenomena, and chaotic behavior in electronic circuits. The apparatus utilizes nonlinear electronic networks, resonance circuits, and operational amplifier-based negative resistance devices to demonstrate a wide range of dynamic phenomena, including phase transitions, periodic oscillations, bifurcation processes, and chaotic attractors. The system provides an effective platform for advanced studies in nonlinear dynamics, chaos theory, electronics, and applied physics.

Physics Lab Experiments from Atico Exports.

Experimental Principle and Content

• Measure the Inductance of Ferrite Materials Using an RLC Resonance Circuit
• Observe Oscillator Waveforms Before and After RC Phase Shifting
• Study Phase Relationships Between Oscillating Signals
• Generate and Analyze Lissajous Figures
• Investigate Phase-Figure Variations by Adjusting RC Network Parameters
• Observe Bifurcation Phenomena in Nonlinear Circuits
• Study Intermittency Chaos and Period-Doubling Behavior
• Observe Triple-Period Oscillations and Chaotic Attractors
• Investigate Single and Double Attractor States
• Measure the V-I Characteristics of a Nonlinear Negative Resistance Device
• Analyze the Mechanisms Responsible for Chaos Generation in Nonlinear Circuits

Educational Objectives

• Understand the Principles of Nonlinear Dynamics
• Study Bifurcation and Chaos Phenomena in Electronic Systems
• Learn Phase-Space Analysis and Waveform Interpretation
• Investigate Resonance and Oscillation Characteristics
• Explore Nonlinear Electronic Components and Negative Resistance Devices
• Develop Practical Skills in Experimental Analysis of Dynamic Systems

Digital Voltmeter :

• 4½-Digit Digital Display
• Measuring Range: 0–20 V
• Resolution: 1 mV

Nonlinear Element :

• LF353 Dual Operational Amplifier
• Six-Resistor Nonlinear Network Configuration

Power Supply :

• Dual DC Output: ±15 V

Experimental Functions :

• Nonlinear Oscillation Analysis
• Phase-Space Observation
• Bifurcation Investigation
• Chaos Generation and Attractor Studies
• Negative Resistance Characterization
• Resonance and Frequency Response Analysis

Standard Supply

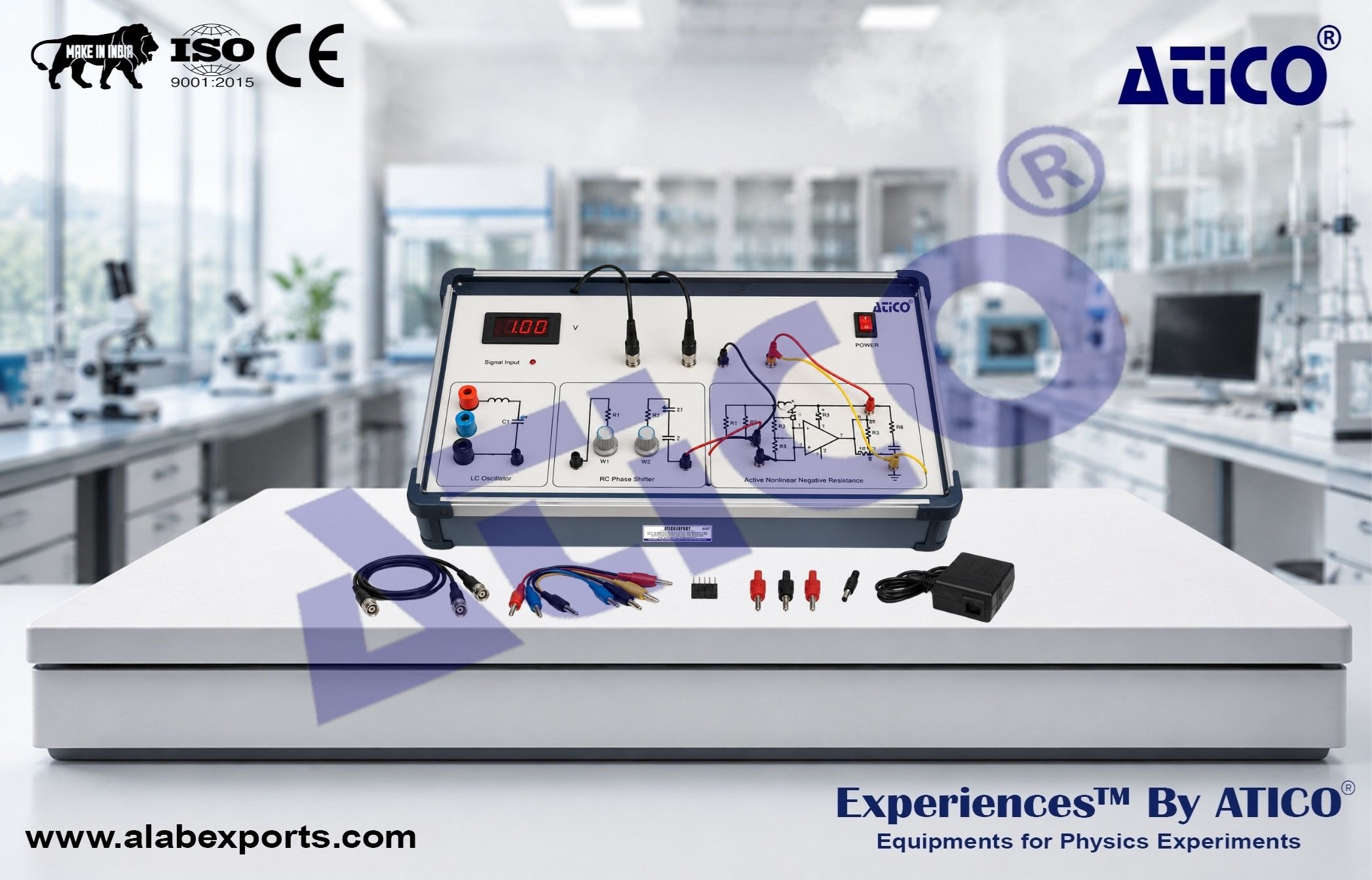

• Main Unit × 1
• Inductor × 1
• Magnet × 1
• LF353 Dual Operational Amplifiers × 2
• Jumper Wires × 11
• BNC Cables × 2
• Instruction Manual × 1

• Simple Circuit for Demonstrating Complex Phenomena
• Comprehensive Experimental Content with Stable Results
• Hands-On Approach to Nonlinear Electronics
• Ideal for Studying Chaos and Bifurcation Behavior
