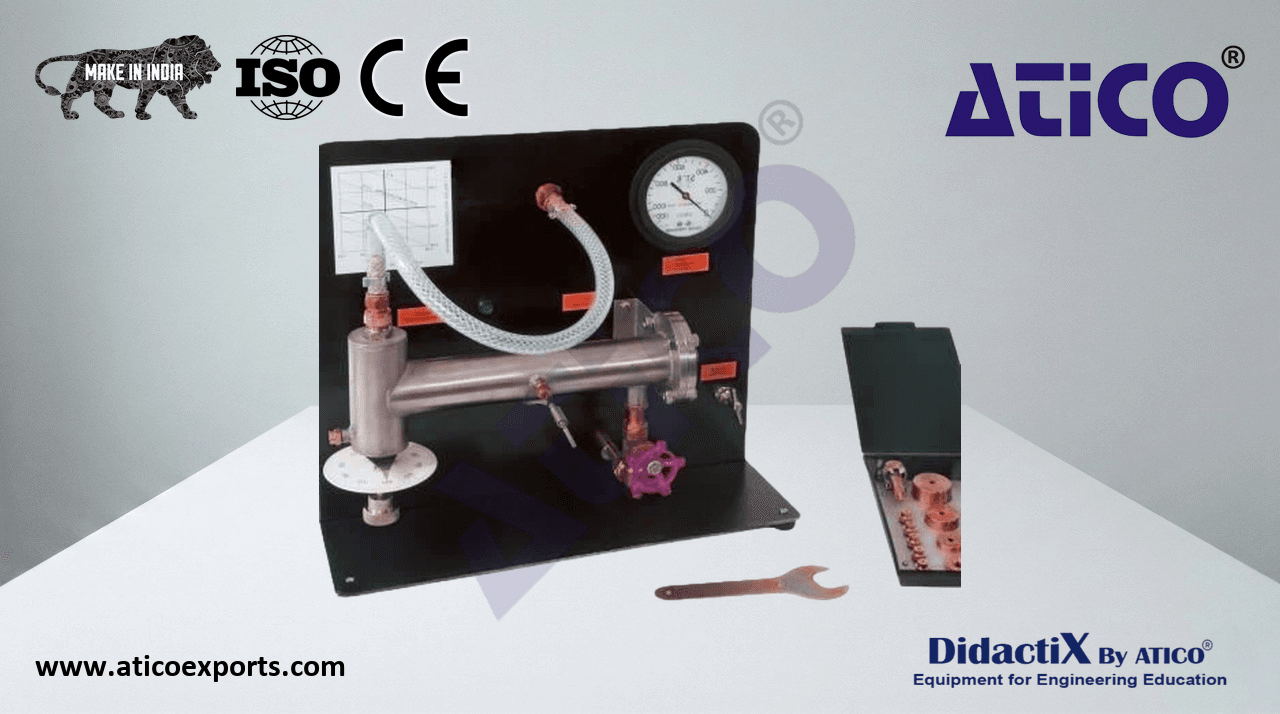

NOZZLE PERFORMANCE TEST MODULE

A series of convergent and convergent-divergent nozzles may be installed in one of two locations in a high pressure measuring chamber. A pressure regulator, throttle valve and back pressure valve allow the air flow rate, inlet and discharge (or back) pressure to be varied. The unit includes convergent-divergent ducts designed to produce Mach 1. Learn about NOZZLE PERFORMANCE TEST MODULE exporters for optimal educational outcomes.. 0 at the throat and supersonic velocities downstream. Inlet and outlet air pressures, temperatures and air flow rate are recorded by a combination of instrumentation on the base unit and the optional module. Learn about NOZZLE PERFORMANCE TEST MODULE manufacturers for optimal educational outcomes..

• 2 x Thermocouples
• Calibrated cantilever beam
