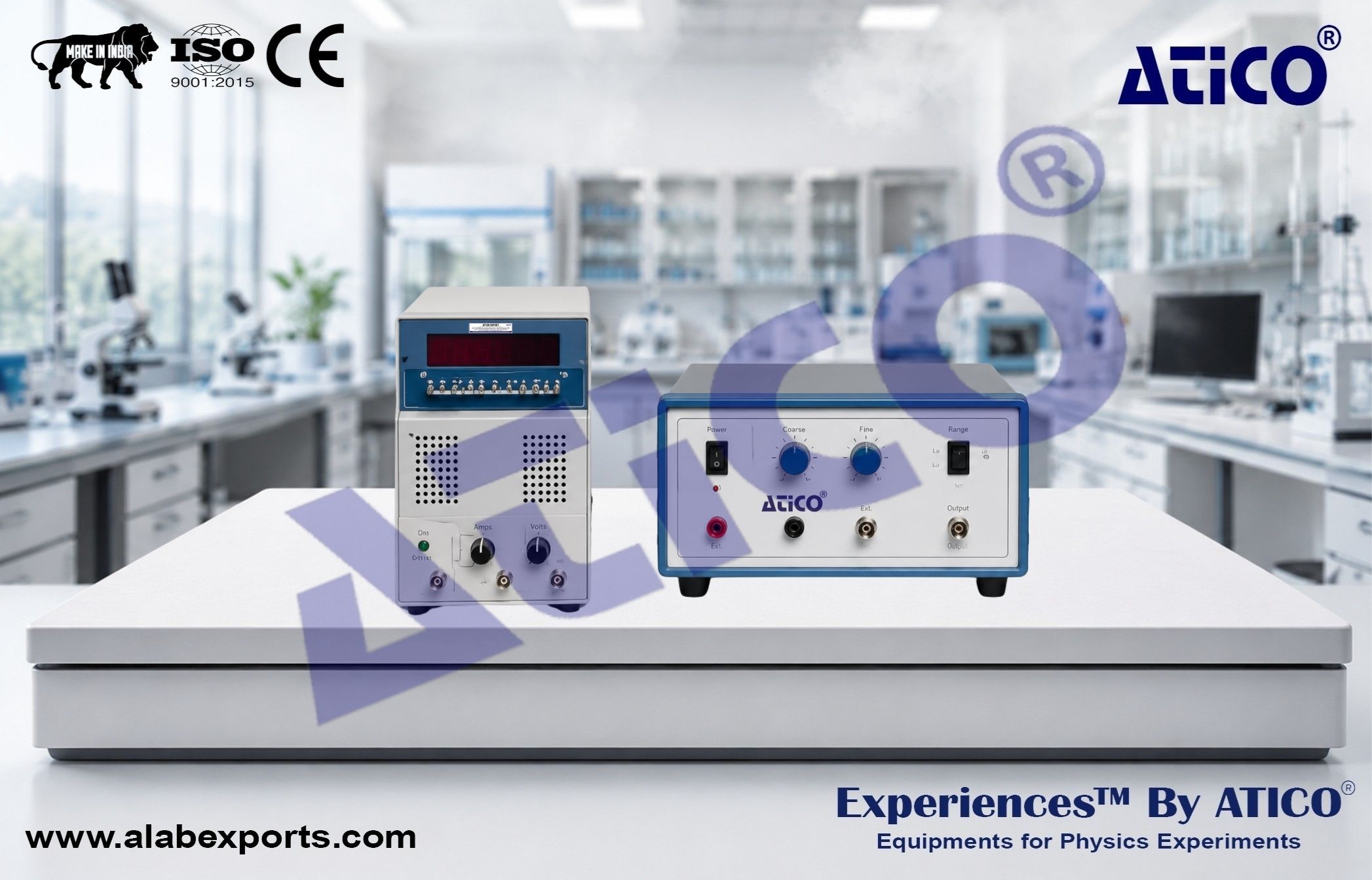

Nuclear Magnetic Resonance NMR Instrument

This Nuclear Magnetic Resonance (NMR) experiment system is designed to demonstrate the fundamental principles and phenomena of nuclear magnetic resonance. It enables students to observe the NMR signals of hydrogen (¹H) and fluorine (¹⁹F) nuclei, measure the nuclear g-factor and nuclear magnetic moment, and gain practical experience in magnetic resonance techniques. Note: A dual-trace oscilloscope is required but not included. Physics Lab Experiments from Atico Exports.

Experiments :

• Study and Understand the Principles and Phenomena of Nuclear Magnetic Resonance (NMR).
• Observe the NMR Signals of ¹H and ¹⁹F Nuclei.
• Measure the Nuclear g-Factor (gN).
• Determine the Nuclear Magnetic Moment.

Signal Amplitude :

• ¹H: ≥100 mV, Signal-to-Noise Ratio: 40 dB
• ¹⁹F: ≥10 mV, Signal-to-Noise Ratio: 26 dB

Oscillation Frequency :

• 18.5–23 MHz
• Continuously adjustable depending on the magnetic field

Sweep Field Signal :

• Sweep field current: 0–200 mA
• Continuously adjustable

Probe Movement Range :

• ±40 mm

Sample Materials :

• Copper sulfate or ferric chloride doped water
• Polytetrafluoroethylene (PTFE) rods
• Equivalent samples

Permanent Magnet :

• Magnetic field strength: Approximately 480 mT
• Relative magnetic field uniformity: Better than 10⁻⁵
• Magnetic field gap: 15 mm

Frequency Meter :

• Included

External Equipment Required :

• Dual-trace oscilloscope (not included)
