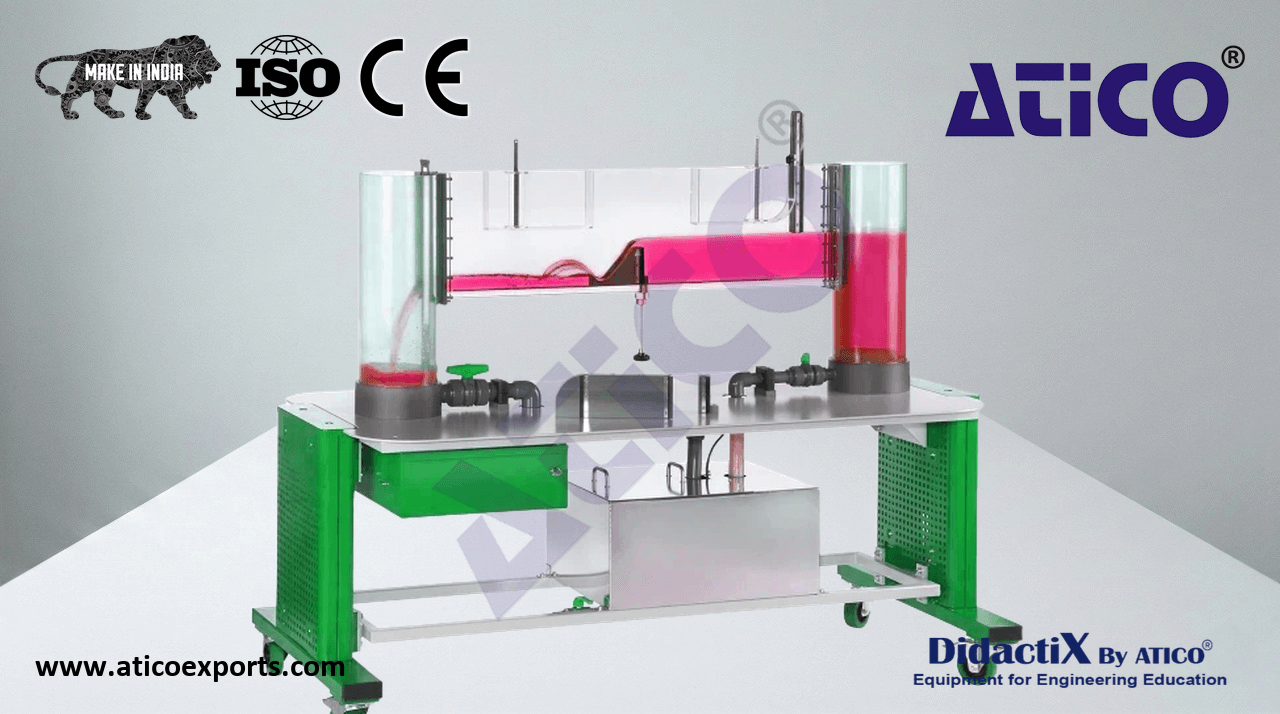

This unit is used to demonstrate different flow processes at different control structures in the open channel. In the closed channel, pressure components in a pipe are determined.
Technical Specifications
investigation of flow processes in the open and closed channel
experimental flume with upper limit, made of transparent material
height-adjustable sill in the bottom of the experimental flume
water level adjustable via plate weir at the water outlet
simple conversion from open to closed channel
control structures for experiments in the open channel: broad-crested weir, narrow-crested weir, ogee-crested weir with ski jump spillway, sill, gate
fully flowed through experimental section and change in cross-section over sill for experiments in the closed channel
closed water circuit with supply tank and pump
transparent measuring tubes for measuring static pressure and total pressure
