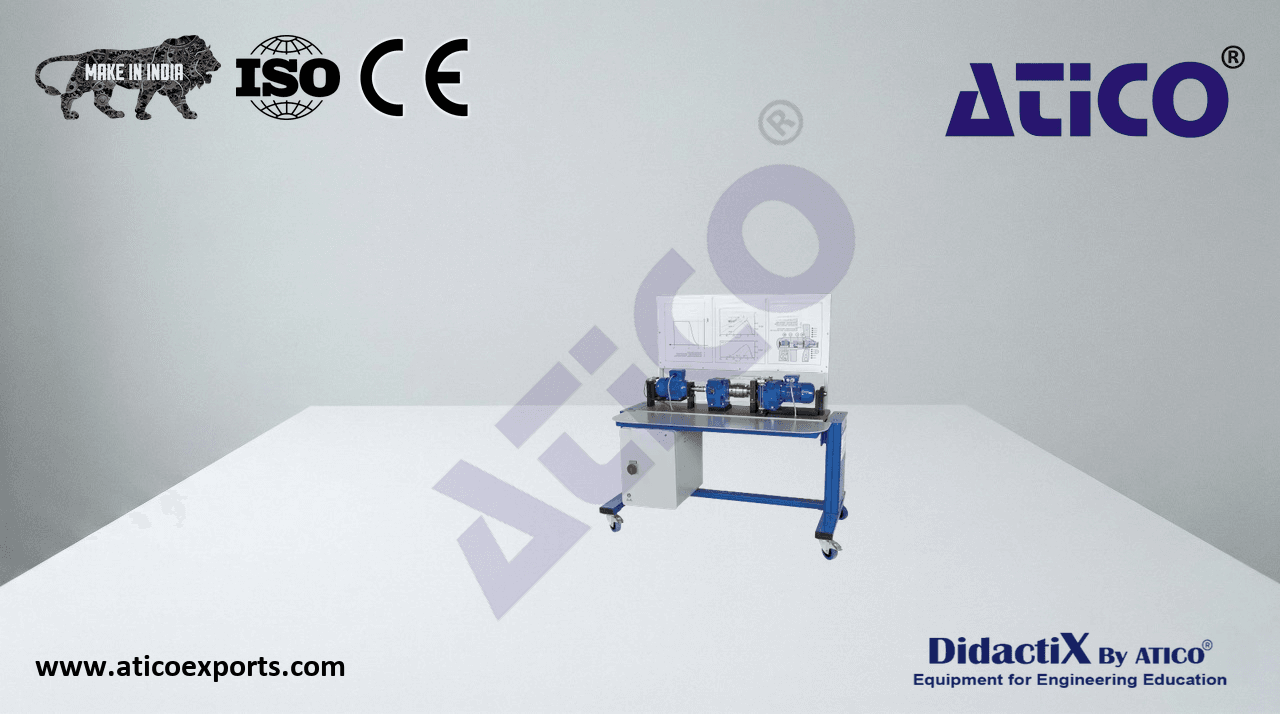

Operating behaviour of wind turbines

The performance of wind power plants depends on mechanical and electrical components, and on an efficient turbine control system. Therefore, it is essential that the influence of the effective parameters under all relevant operating conditions be known.

• measurements and simulation of typical characteristic values on a wind power drive train
• remote learning: detailed E-Learning course on the basics of wind power accessible online
• low-speed drive motor with adjustable speed simulates wind rotor
• drive train with spur gear
• three-phase synchronous generator with integrated rectifier
• sensor for generator speed and drive-side and generator torques
• adjustable electronic load with interface for software connection
• software for turbine control and acquisition of measured values, successive operating windows for user guidance
• simulation of characteristic diagrams as a function of wind velocity, rotational speed and rotor blade angle
• simulation of autonomous turbine operation with specified wind velocity
• network capability: observe, acquire, analyse experiments at any number of workstations with software via the customer–s own LAN/WLAN network
• software via USB under Windows 11
