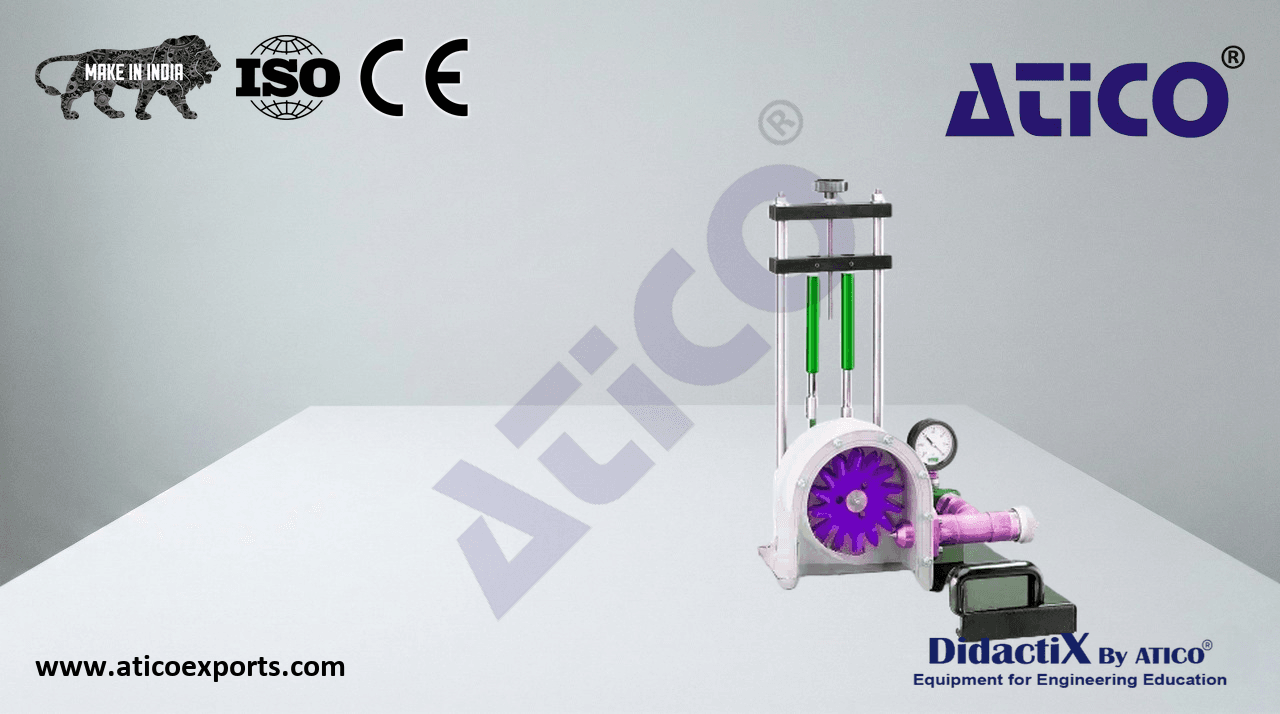

Operating principle of a Pelton turbine Deluxe

The Pelton turbine is a type of impulse turbine; such turbines convert the pressure energy of water into kinetic energy entirely in the distributor. During the conversion, the water jet is accelerated in a nozzle and directed onto the blades of the Pelton wheel tangentially. The water jet is redirected by approx. Learn about Operating principle of a Pelton turbine specifications for optimal educational outcomes.. 180° in the blades. The impulse of the water jet is transmitted to the Pelton wheel. Learn about Operating principle of a Pelton turbine exporters for optimal educational outcomes..

• function of a Pelton turbine
• transparent front panel for observing the operating area
• loading the turbine by use of the band brake
• adjustable nozzle needle for setting different nozzle cross-sections
• marking on brake drum for non-contact speed measurement
• instruments: spring balances for determining the torque, manometer shows pressure at turbine inlet
• flow rate determination by base module
• water supply using the base module or via laboratory supply
• flow visualisation using prepared CFD simulations
• digital multimedia teaching material available online: e-learning course, prepared CFD simulations, worksheets, videos
