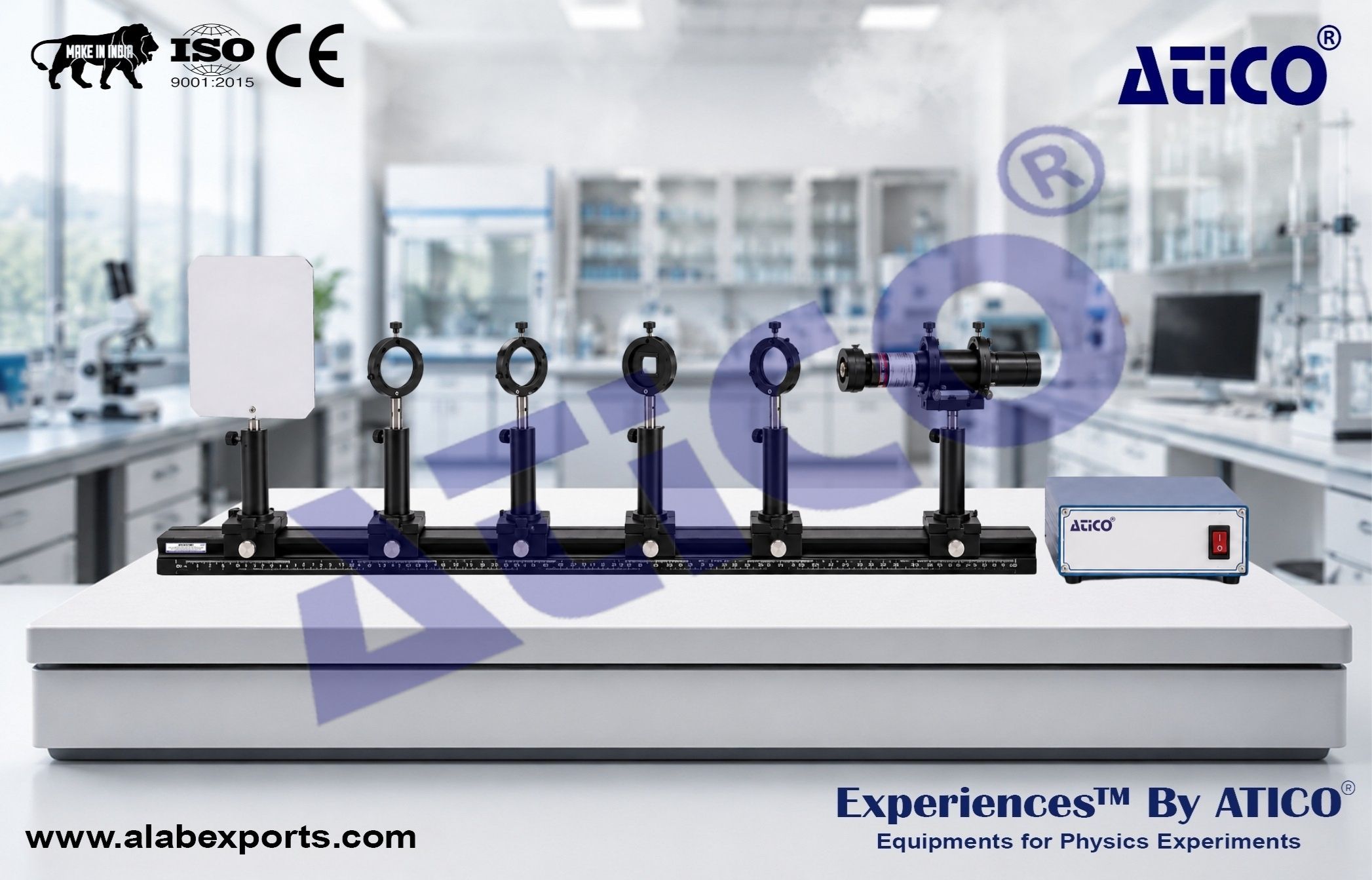

Optical Image Differential Physics Lab Experiments Instrument

Optical differential processing is an important technique in optical image processing used to enhance image information. It extracts and highlights the edges and fine details of low-contrast images, improving image resolution and recognition efficiency. Since image recognition often relies on contour identification, this experiment uses optical correlation methods to perform spatial differential processing and clearly depict image edges and contours.

Physics Lab Experiments from Atico Exports.

Experimental Principle and Content

• Study of optical differential image processing.
• Spatial differential processing using optical correlation techniques.
• Enhancement and extraction of image contours and edge details.
• Analysis of low-contrast image features and recognition methods.

Light Source :

• Semiconductor Laser or Helium-Neon Laser

Optical Elements :

• Grating, Various Lenses

Adjusting Frame :

• Dry Plate Frame, Slide Seat, Lens Frame, Adjusting Frame, Small Hole Screen

Guide Rail :

• High-Quality Carbide Guide Rail, Length 1 m

Grating :

• Composite Grating

Other Main Parts :

• White Screen, Laser Rack, Laser Adjustment Seat, etc.
