OPTIONAL TEST BEAM SET

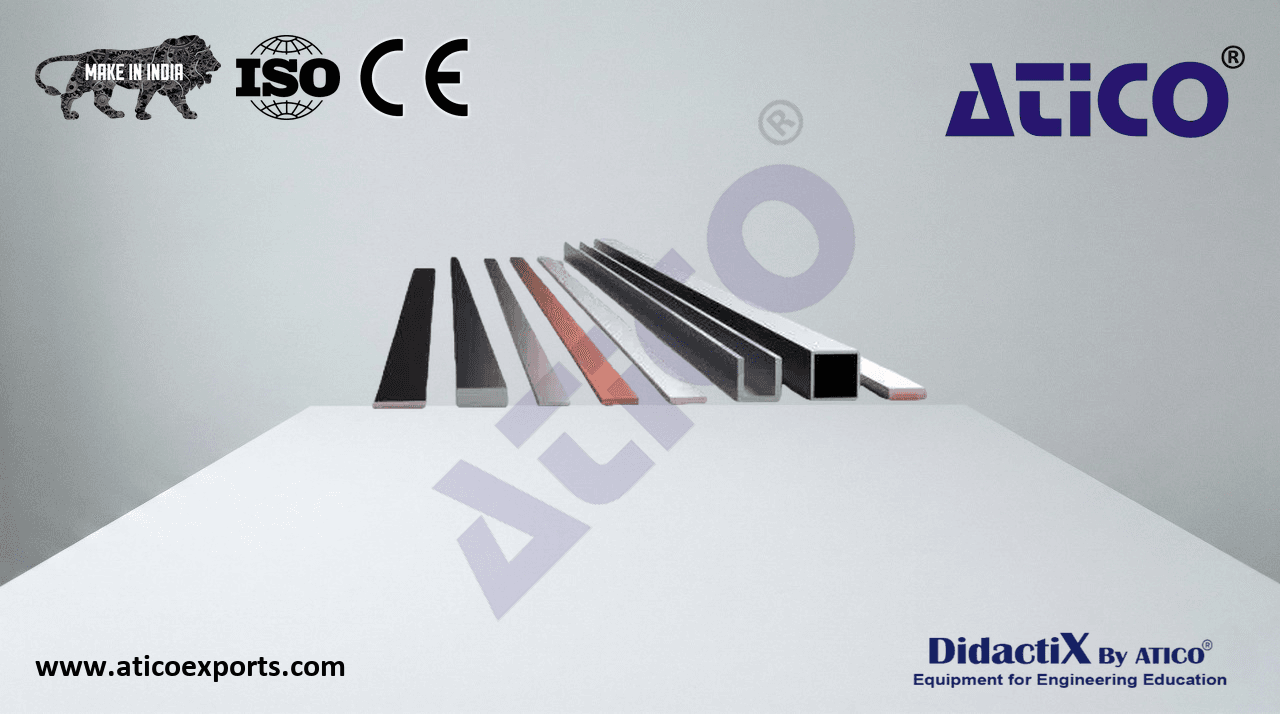

A beam set that extends student learning through testing of unfamiliar beam configurations including hollow, flat, channel, tapered, composite, and non-uniform beams. Compatible with a variety of beam experiment apparatus. **Seven beams supplied. Learn about OPTIONAL TEST BEAM SET equipment for optimal educational outcomes.. **.

• Hollow beam: 1200(L) × 25.4(W) × 25.4(H) × 1.6(t) mm; aluminium
• Brass beam: 1200(L) × 19(W) × 3.18(H) mm
• Steel beam: 1200(L) × 19(W) × 3.18(H) mm
• Channel beam: 1200(L) × 22.2(W) × 22.2(H) × 3.18(t) mm; aluminium
• Tapered beam: 1100(L) × 9.5(W) × 25(H) to 10(H) mm; aluminium
• Composite steel/brass beam: 1400(L) × 20(W) × 6.18(H) mm
• Steel beam: 1200(L) × 16(W) × 2(H) mm
• Non-uniform beam: 1000(L) × 350(L) × 25(W) × 3.65(H) mm
