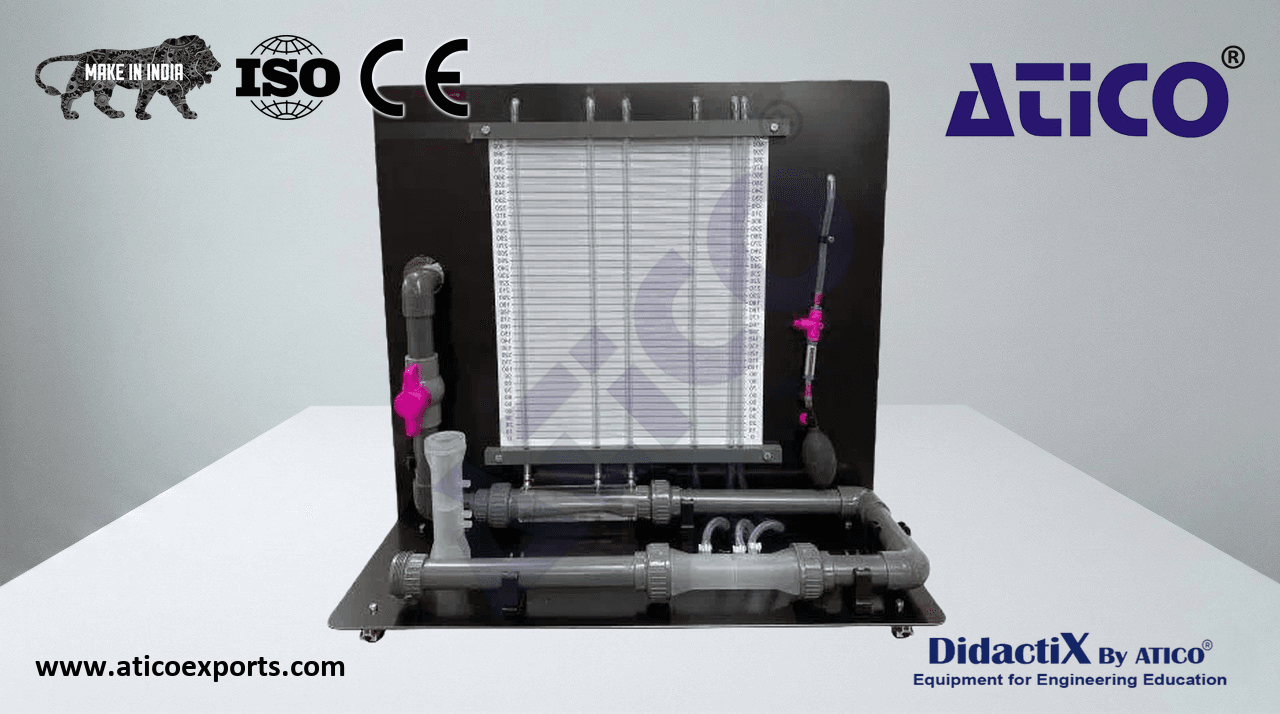

ORIFICE AND VENTURI FLOW MEASUREMENT MODULE

This unit uses water-filled manometer tubes to determine the pressure at each point across a Venturi and an orifice plate. As water flows through and the cross-sectional area changes, pressure and velocity change in accordance with Bernoulli's equation. A horizontal venturi enclosed in a clear plastic cylinder has 3 pressure point tappings connecting to water manometers. Learn about ORIFICE AND VENTURI FLOW MEASUREMENT MODULE suppliers for optimal educational outcomes.. The orifice plate also has 3 manometer tubes that connect via quick release connections to pressure tappings across the meter. The manometers connect to a common manifold incorporating an air pressure control valve and a hand-actuated pump. Learn about ORIFICE AND VENTURI FLOW MEASUREMENT MODULE for educational labs for optimal educational outcomes.. A flow control valve is located on the outlet portion of the Venturi. A graduated scale is placed behind the manometers for ease of water level measurement. Learn about ORIFICE AND VENTURI FLOW MEASUREMENT MODULE exporters for optimal educational outcomes.. The test section is arranged so that the characteristics of flow through the converging and diverging venturi and the orifice plate can be fully investigated. The optional Flowmeter Module can be used to measure flow rate. Learn about ORIFICE AND VENTURI FLOW MEASUREMENT MODULE price for optimal educational outcomes..

• Flow rate control tap
• Vertical tube manometers
• Max flow rate: 30 l/min (approx.)
• Inlet and Outlet inside diameter: Ø25mm
• Throat inside diameter: Ø15.6mm
• Orifice sizes: 15.3mm and 12.5mm
