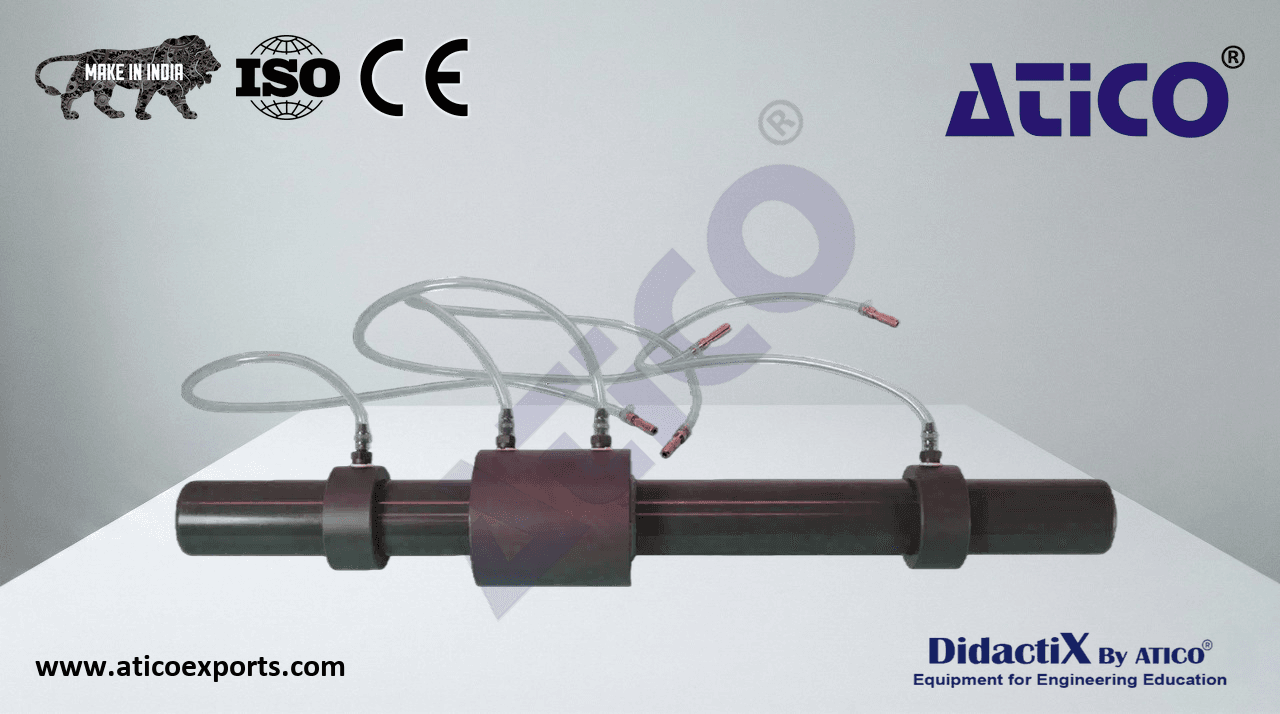

ORIFICE FLOWMETER

Sharp edged orifice to ISO dimensions with upstream and downstream pressure tappings. For use with the Flow Meter Calibration unit.

A popular flow meter for use with the Flow Meter Calibration unit. It shows the accuracy and use of a sharp-edged orifice flow meter. This flow meter quickly and easily fits into place between the adaptors in the base unit of the Flow Meter Calibration unit. Learn about ORIFICE FLOWMETER equipment for optimal educational outcomes.. The manometers of the calibration unit show the pressure differences at the flow meter and across the overall flow meter assembly.
