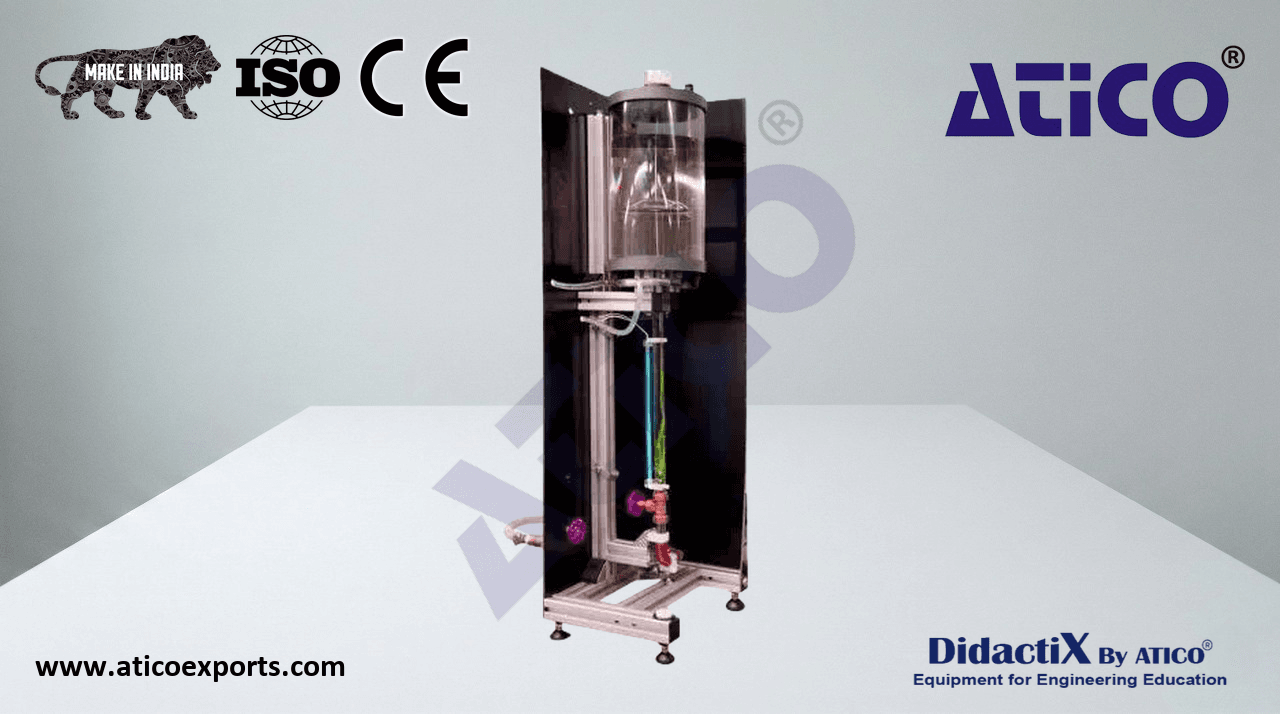

OSBORNE REYNOLDS APPARATUS

Free-standing apparatus that gives a visual demonstration of laminar and turbulent flow.

The apparatus consists of a precision-bore glass pipe (test tube) held vertically in a large shroud. The shroud is open at the front and the inside surface is light coloured. This allows the students to see the flow clearly. Learn about OSBORNE REYNOLDS APPARATUS exporters for optimal educational outcomes.. Water enters a constant head tank (reservoir) above the test tube and passes through a diffuser and stilling bed. It then passes through a specially shaped bell-mouth into the test tube. Learn about OSBORNE REYNOLDS APPARATUS manufacturers for optimal educational outcomes.. This arrangement ensures a steady, uniform flow at entry to the test tube. A thermometer measures the temperature in the constant head reservoir. Learn about OSBORNE REYNOLDS APPARATUS specifications for optimal educational outcomes..

• Source header tank: 9.5 litre capacity (approx.)
• Dye header tank: 100ml capacity with flow adjustment rod
• Levelling feet and level indicator supplied
• Luminous dye supplied
• Non corrosive materials used throughout
• UV lamp mounted on glass tube
• Thermometer for calculating dynamic viscosity of water
