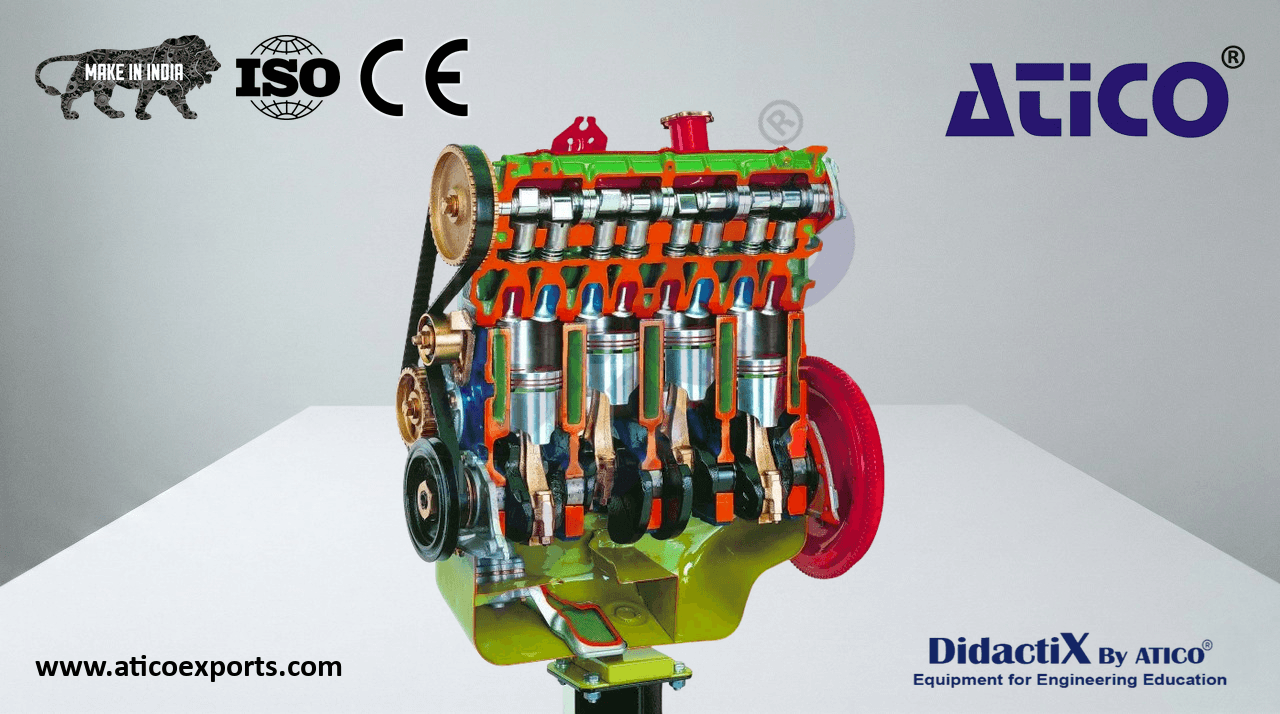

Overhead Camshaft Engine with Toothed Timing Belt

This product is a cut-away of an engine with an overhead camshaft and toothed timing belt. This product is a cut-away of an engine with an overhead camshaft and toothed timing belt.

Specifications

• 4-Stroke gas engine, Inline-4
• Overhead camshaft (OHC)
• Toothed timing belt
• Bore: 70mm
• Stroke: 72mm
• Displacement: 1108cc
• Compression Ratio: 9,6:1
• Power: 54 cv, 40 kw
• Operates manually by hand crank
• Mounted on a stand with wheels

Weight And Dimensions

Size: 67cm x 48cm x 95cm (L x W x H) Net Weight: 60 kg Gross Weight: 100 kg.
