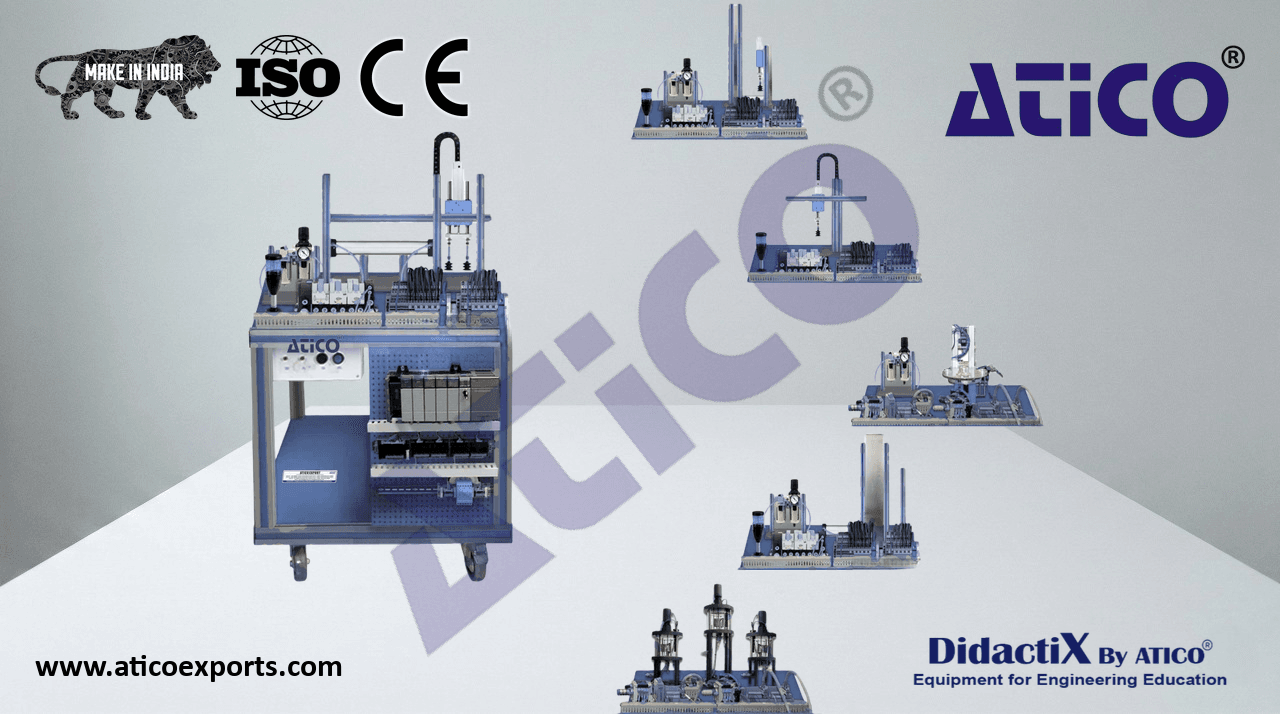

ATENG 12538 — Part Feeding Workstation
Mounted with aluminum profiles.
10 pieces made of aluminum.
Vertical storage for pieces.
- Electrical panel:
Differential magneto-thermal switch.
- Power supply of 24 Vdc.
- Control panel:
Mushroom head emergency stop push button switch.
Start and Stop pushbuttons.
Switch for manual or automatic operation.
Light indicator.
Led stack light.
Terminal block to connect the individually identified inputs and outputs of the unit.
- Pneumatic circuit:
- Air treatment unit:
Filter-regulator with water trap.
Manometer with double scale indicator.
Shut-off valve.
2 Simple acting pneumatic actuators.
3 Double acting pneumatic actuators.
2 Pneumatic monostable 3/2 solenoid valves.
3 Pneumatic bistable 5/2 solenoid valves.
Individually identified tubes and push in fittings.
- Vacuum circuit:
4 telescopic flat suction pads made of NBR rubber mounted on an aluminum plate.
Venturi effect vacuum ejector.
2 Pneumatic monostable 2/2 solenoid valves.
Pressure relief valve.
- Sensors:
2 inductive effect sensor.
8 reed effect limit switches.
- Fault generation module:
Box with lock with key.
Allows to generate 20 different faults.
Each fault is generated through toggle switches.
2
Specifications
- Recommended accessories: (Not included)
- AE-PLCB. Basic PLC Trainer (Optional).
- The AE-PLCB is available with different PLC manufacturer models, all of them contain:
- N-ALI02: is the Main power supply.
- N-CPU: is the PLC CPU that contain the digital In/Out terminals. All CPUs types allow to connect with the PC (for programming and
monitoring) and the other modules of the trainer through an Ethernet network.
- N-ESA: is the analog In/Out module used to acquire and generate analog signals.
- N-HMIB: is the Human Machine Interface module with a touch screen.
- N-MT: is the test module with switches, push buttons and potentiometers to generate digital and analog signals.
Software to program the PLC and the HMI device.
- AE-CP. Air compressor module (optional).
- Low noise level: 40 dB maximum.
- Capacity of the boiler: 9 l.
- Power: 340 W.
- Air intake: 50 l/min.
- Maximum pressure: 8 bar or 0.8 MPa.
It Includes hoses to easy connect with the units.
Cables and Accessories, for normal operation.
