PC Based Virtual Instruments

The unit is designed to give realistic real-time performance that functions in the same way as stand-alone instrumentation
Meters and indicators in the system can be used together with the training systems to indicate signal outputs and levels of various test points and for the experiments. It can also be used to test real operational circuits and electronic items
The Virtual Instrument package consists of both a hardware unit that contains the signal processing and software. Together they will allow the student to take measurements of the experiment boards and display on the PC. PC Based Virtual Instrument system is used with a PC or a laptop computer

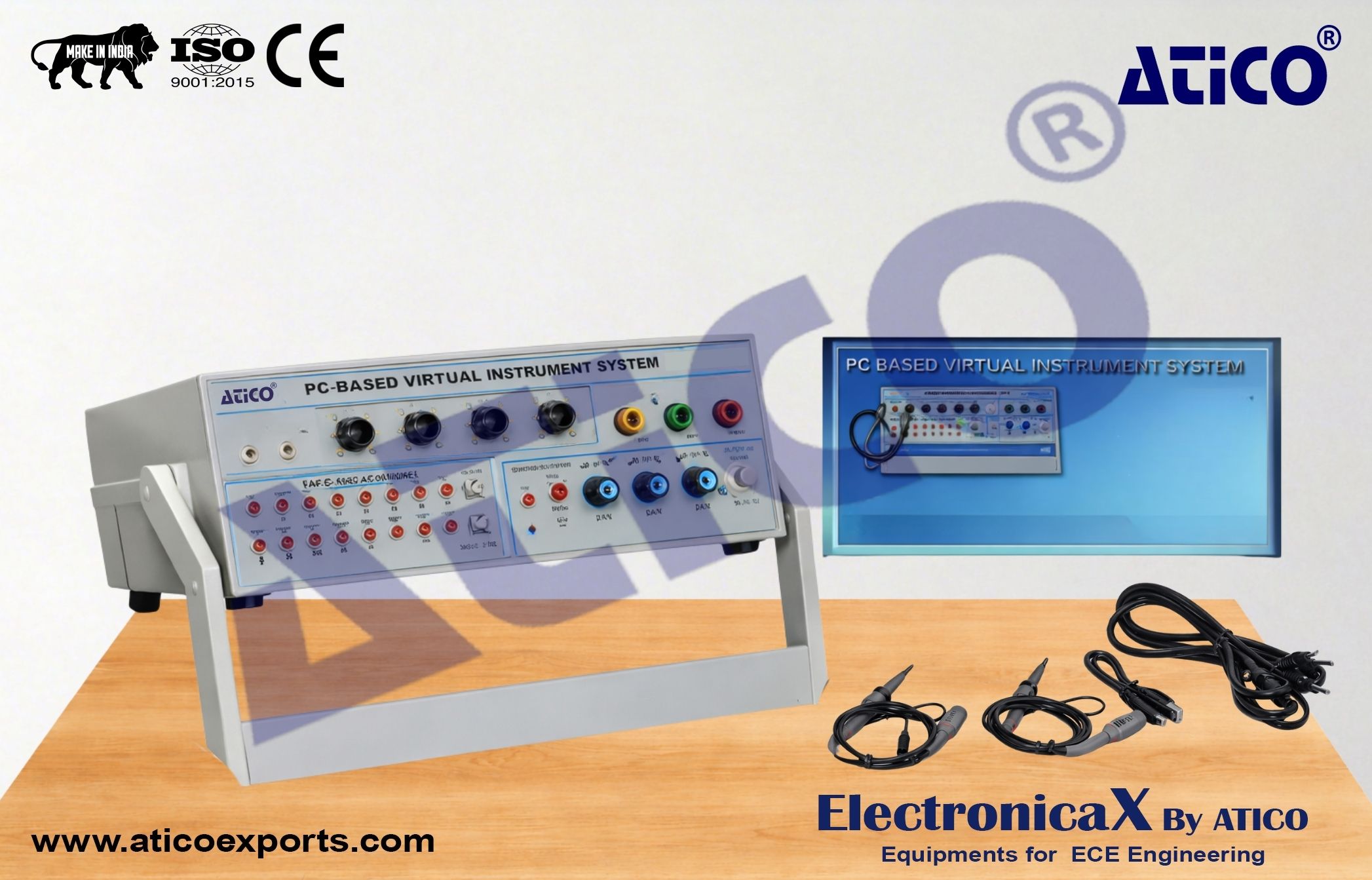

The hardware unit face panel includes connection terminals for probes, instrument operation controls for the signal generator, input terminals for logic analyzer
It also features a power connection which can be used to power and control the system under testing
The feature will allow the CMS system to turn off the power to the training systems from an instruction by the teacher which can be triggered via the CMS system over the internet
The status of the power is shown by the Power Indicator light

The PC Based Virtual Instrument system is ideal for the training of technicians in the overall operation and performance of electrical and electronic systems

• The Virtual Instrument system includes a Digital multimeter, Signal generator, Dual channel Oscilloscope, Logic analyzer and Spectrum analyzer
• The system includes all test probes and connections to work with the Trainer
• Unit includes an interface to the Classroom Management System with status indicators
