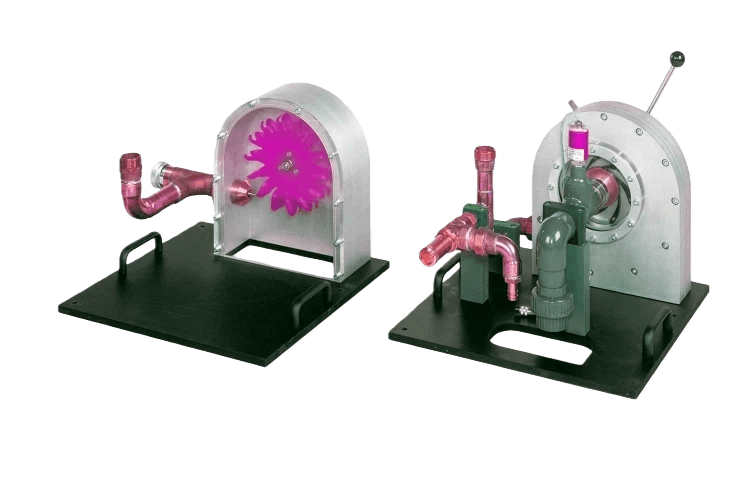

Pelton and Francis turbine Deluxe

Water turbines are turbomachines utilising water power. They convert pressure and flow energy into mechanical energy and mostly are used for driving electrical generators. Water turbines can be divided into impulse and reaction turbines depending on their operating principle. Learn about Pelton and Francis turbine Energy Trainers4 India for optimal educational outcomes..

• comparison of a Pelton turbine as impulse turbine and a Francis turbine as reaction turbine
• operation by use of the turbine supply unit
• turbine load by use of the universal brake and drive unit
• constant torques and speeds can be adjusted with universal brake unit
• transparent front panel in the turbines for observing the operating area
• adjustable nozzle needle for setting different nozzle cross-sections (Pelton turbine)
• adjustable guide vanes for setting different angles of incidence (Francis turbine)
• pressure sensor at the Francis turbine for measuring the pressure at the turbine outlet
• digital display for flow rate, pressure and temperature
• braking torque and speed measured
