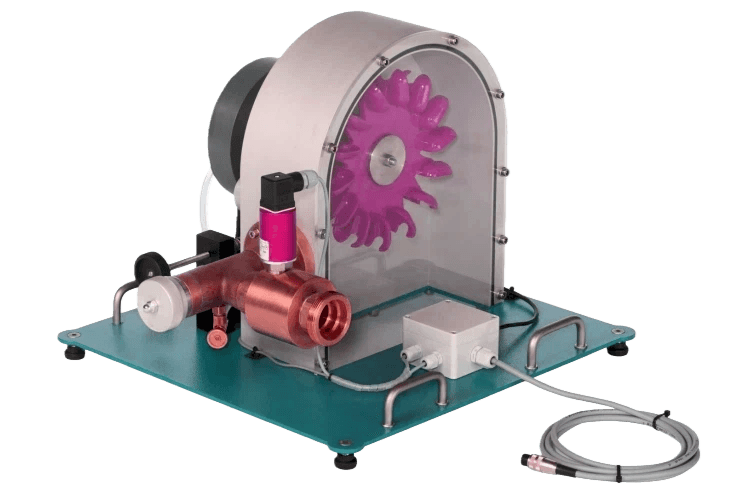

Pelton turbine Deluxe

The Pelton turbine is a type of free-jet resp. impulse turbine which convert the pressure energy of water into kinetic energy entirely in the distributor. Pelton turbines are used at large heads and relatively low flow rates. Learn about Pelton turbine for educational labs for optimal educational outcomes.. The turbine power is adjusted by means of the nozzle cross-section. In practice, Pelton turbines are used for driving synchronous generators, where they run at constant speed. Learn about Pelton turbine price for optimal educational outcomes..

• recording the curves of a Pelton turbine and investigating the influence of the nozzle cross-section
• transparent front panel for observing the operating area
• adjustable nozzle needle for setting different nozzle cross-sections
• loading the turbine by use of the adjustable band brake
• non-contact speed measurement at the turbine shaft and force sensor at the brake for measuring the torque
• pressure sensor at the turbine inlet
• speed, torque and pressure displayed on the switch cabinet
• water supply, flow rate measurement and data processing software via base unit
