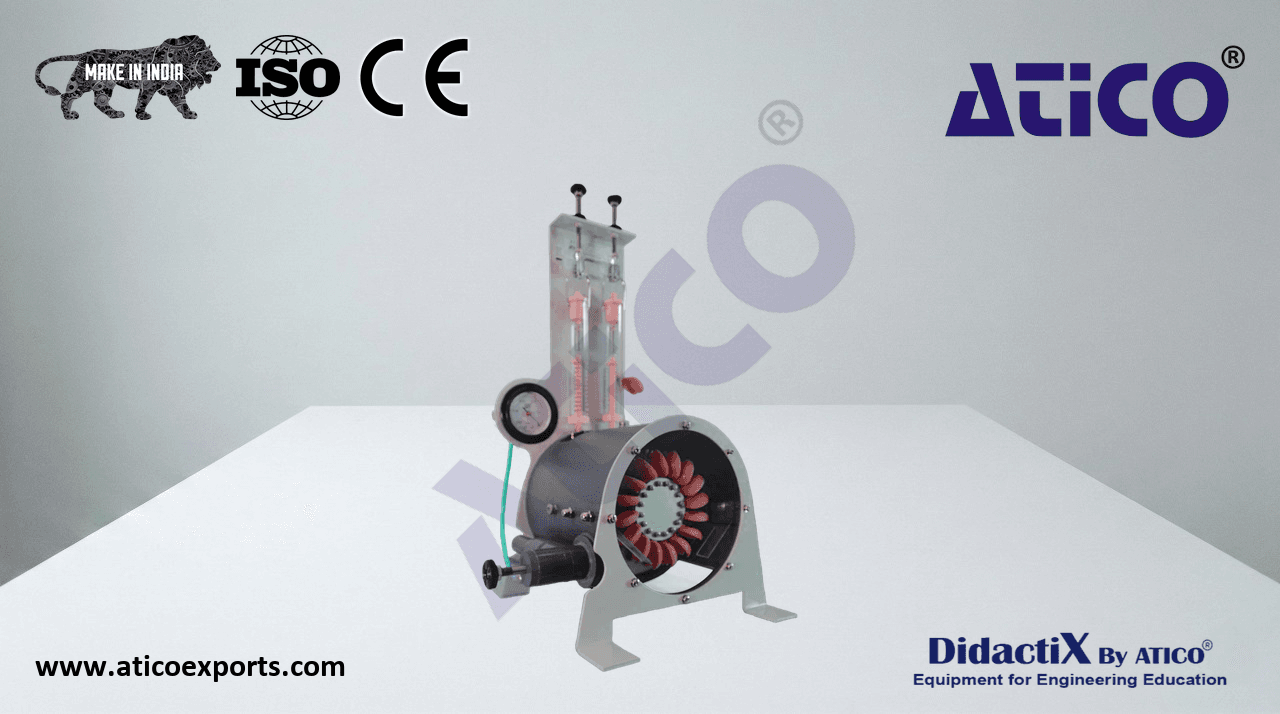

PELTON TURBINE

A compact experiment for use with the Hydraulic Bench to demonstrate how a Pelton turbine works and to test its performance.

Shows students how an impulse (Pelton) turbine works and tests its performance. The Pelton wheel is an important and efficient fluid power machine, used in many applications. The unit consists of a Pelton wheel mounted in a corrosion-resistant enclosure. Learn about PELTON TURBINE for educational labs for optimal educational outcomes.. A transparent front panel allows students to see the turbine working. An optional Stroboscope (available separately) can 'freeze' the image of the turbine to help students better understand how it works. Learn about PELTON TURBINE specifications for optimal educational outcomes.. An adjustable spear valve directs a jet of water through a nozzle to the buckets of the Pelton wheel to make it turn. Manual adjustment of the spear valve controls the water jet from the nozzle. Learn about PELTON TURBINE exporters for optimal educational outcomes.. The turbine includes all pipes and fittings to connect it to the Digital Hydraulic Bench (available separately). The hydraulic bench also measures flow rate. Learn about Digital PELTON TURBINE for optimal educational outcomes.. An optional Optical Tachometer (available separately) can measure the speed of rotation of the turbine.
