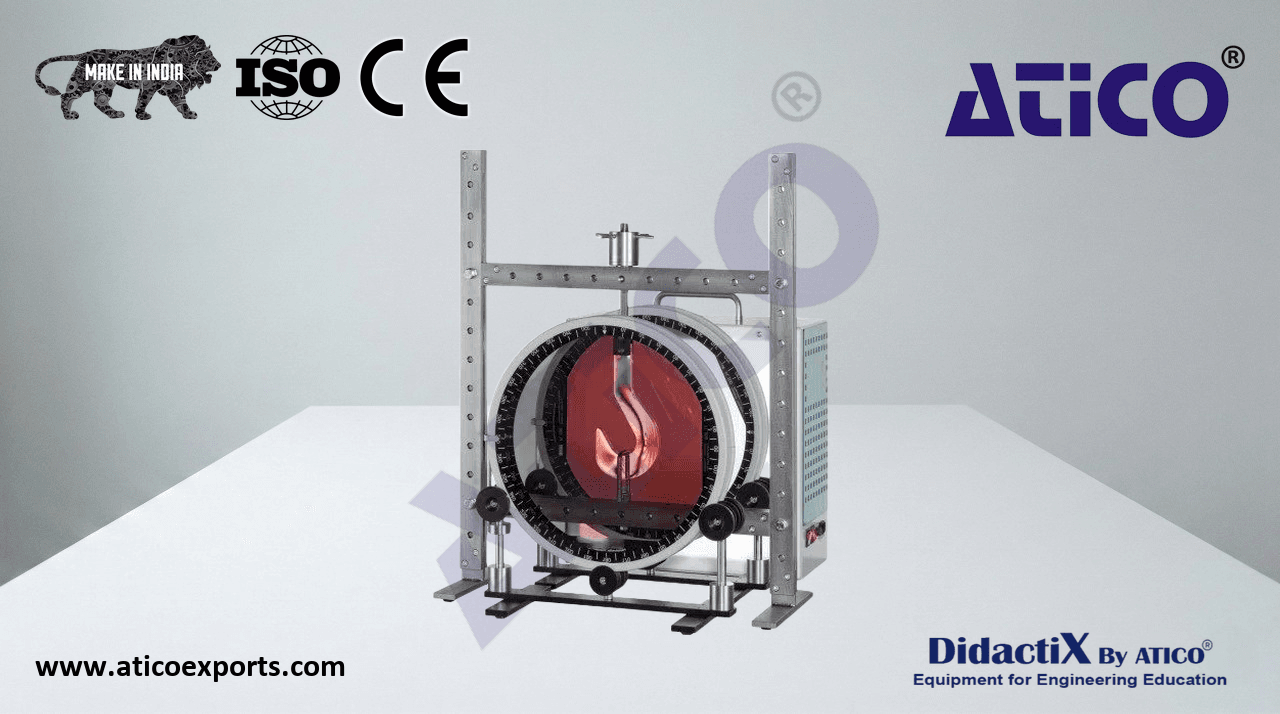

Photoelastic experiments with a transmission polariscope

Photoelasticity is a proven method of analysing and recording mechanical stresses and strains in components. It is used both for quantitative measurements and for demonstrating complex stress states. The components used are models made of a transparent, photoelastically sensitive plastic, which becomes optically birefringent under mechanical load. Learn about Photoelastic experiments with a transmission polariscope exporters for optimal educational outcomes..

• produce the mechanical stress curves through photoelastic experiments
• 2 linear polarising filters (polariser and analyser)
• 2 quarter-wave filters for generating circular polarised light
• all filters have 360° angle scale and indicate the main optical axis
• filters mounted on roller bearings and can be pivoted
• white light produced by a fluorescent tube and two incandescent bulbs
• monochromatic light (yellow) generated by sodium vapour lamp
• frame cross-members can be vertically adjusted
• pressure or tensile forces generated by a threaded spindle
• finished polycarbonate (PC) models available as accessories for the demonstration
