Photoelasticity Unit Deluxe

The Photoelasticity Unit, for photoelasticity practices, illustrating the subjects of the photoelasticity theory, the elasticity theory, strength of materials, and structure theory.

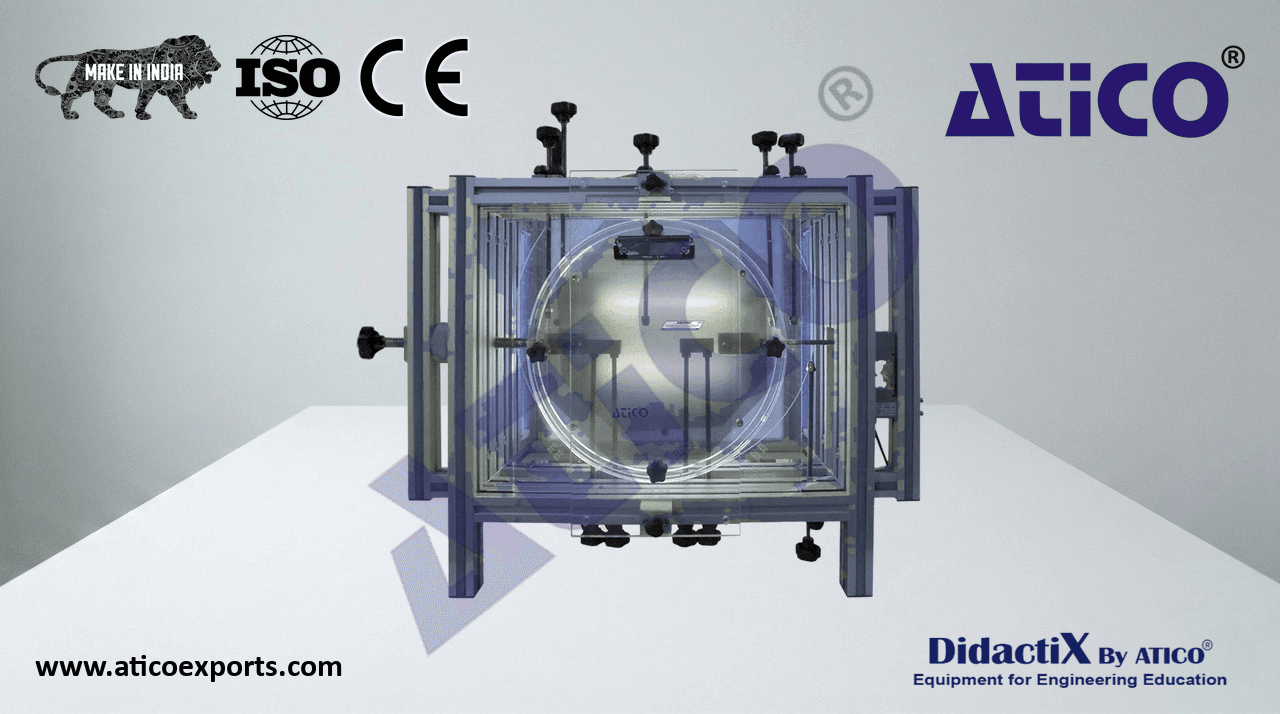

ATENG 12217 — Photoelasticity Unit

Bench-top unit.

Anodized aluminium structure.

Main metallic elements in stainless steel.

Light source, two fluorescent tubes of 30 cm and 8 W.

Monochromatic light 35 W.

Opalescent diffuser plate.

Double effect polarizing filters (linear polarization and circular polarization), of 30 x

30 cm and protected by methacrylate plates.

Load frame with pulling jack.

Load cell for direct force measurement.

Ten pressure screws and accessories.

ATENG 12217. Unit

• The “ATENG 12217” unit includes the following elements:
  Included elements
• EFO-K1. Kit of Static Test Specimens (Basic kit), formed by:
  N°3. Stepped Rectangular Specimen.
  N°4. Compact Circular Specimen.
  N°5. Circular with Orifice Specimen.
  N°9. Medium Rectangular Specimen.
  N°13. “C” Specimen Probe.
  N°14. Specimen with Arch Probe.
  N°17. Square with Diagonal Bar Specimen Probe.
