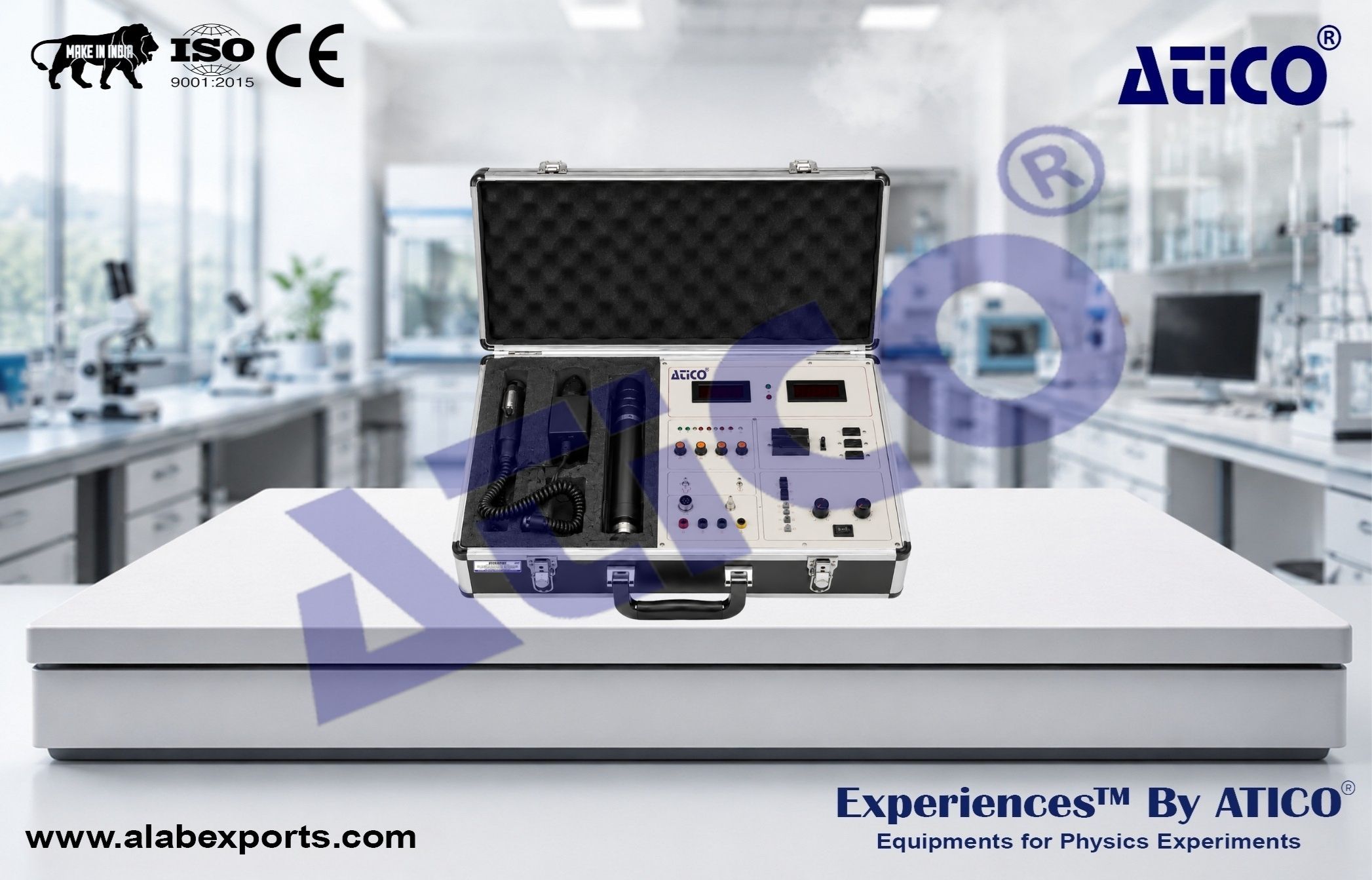

Photoelectric Detection Principle Comprehensive Physics Lab Experiments Setup by ATICO EXPORT

This experiment system is designed for studying and testing the characteristics of various photoelectric detection devices. It provides a comprehensive platform for investigating key parameters such as photoelectric characteristics, volt-ampere characteristics, spectral response, and time response. Different photoelectric detection devices can be used according to experimental requirements, including photoresistors, photodiodes, phototransistors, silicon photocells, and color-sensitive photodiodes. The system is suitable for education, training, and research in photoelectric detection technology.

Physics Lab Experiments from Atico Exports.

Experimental Principle and Content

• Study of photoelectric detection device operating principles
• Measurement of photoelectric conversion characteristics
• Analysis of volt-ampere characteristics
• Investigation of spectral response characteristics
• Evaluation of time response performance
• Comparison of different photoelectric detection devices
• Understanding the applications of photoelectric sensors and detectors
• Development of practical skills in photoelectric measurement and testing

Host :

• Main Chassis Size: 520 mm × 318 mm × 145 mm

Product Weight :

• ≤ 5 kg

High Voltage Unit :

• Adjustable Output Range: 0–1000 V
• Input Voltage: 11–16 V

Voltmeter :

• 3½-Digit Display
• Four Selectable Ranges: 0–200 mV, 0–20 V, 0–200 V, 0–2000 V

Ammeter :

• Four Selectable Ranges: 0–200 μA, 0–2 mA, 0–20 mA, 0–200 mA

Light Source :

• White Light (Brightness 1000–2500)
• Red Light (625–630 nm)
• Orange Light (600–605 nm), etc.

Illuminometer :

• Resolution: 0.1 lx
• Measurement Ranges: 200, 2000, 20000, 50000 Lux
• Sampling Rate: 1.5 Times/Second
