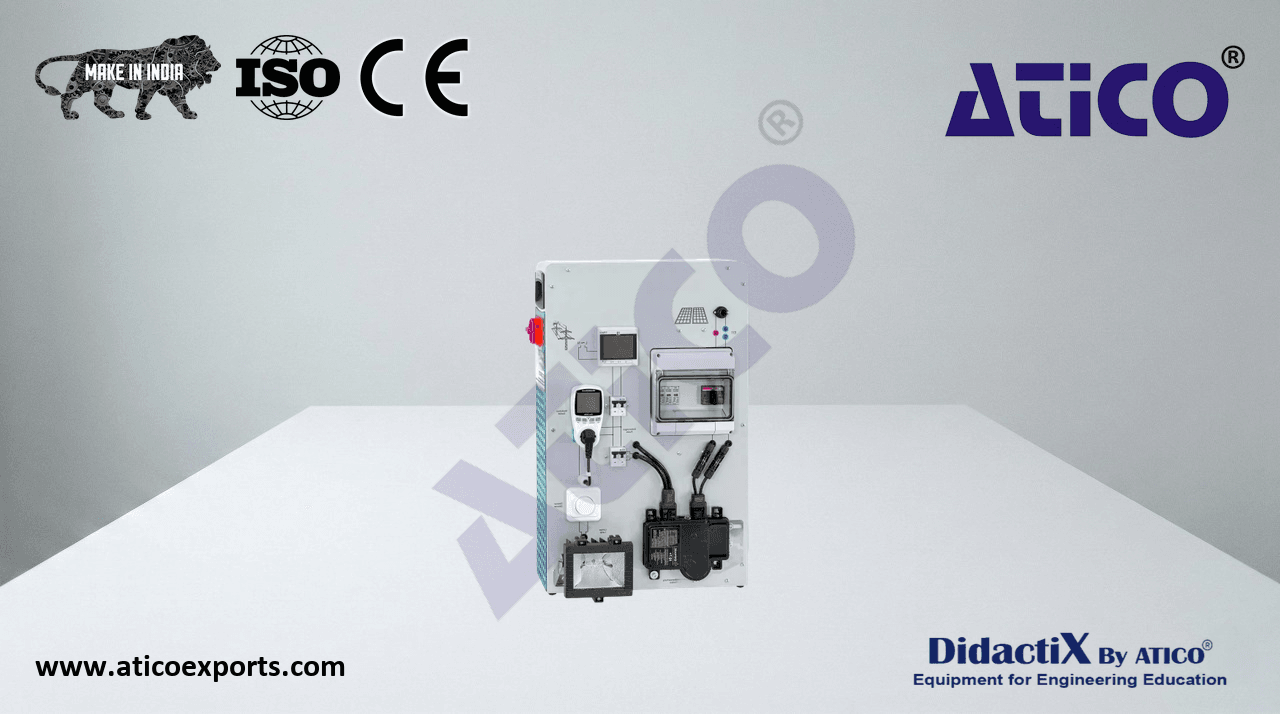

Photovoltaic in grid-connected operation

Feeding electricity from photovoltaic modules into the mains grid requires several special system components. These components enable conversion and capture of the solar electricity and ensure system safety.

• extension for the trainer
• electrical components for grid-connected usage of photovoltaics
• practical combiner box with circuit breaker and over voltage protection
• inverter for grid operation with maximum power point tracker
• bidirectional electricity meter connecting to the mains grid
• socket with electricity meter for own consumption
• dimmable halogen lamp for experiments under varying electrical load
