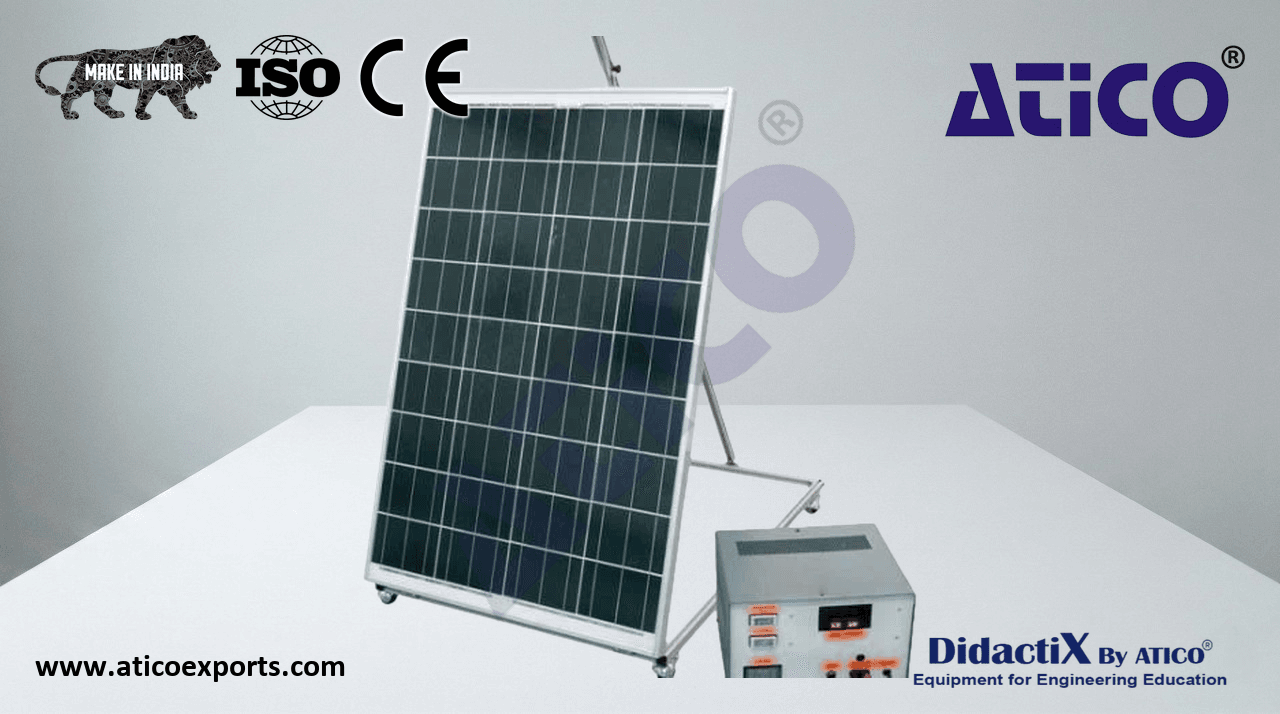

PHOTOVOLTAIC TRAINER Deluxe

A practical-sized solar panel with nominal 80W output is connected to a control panel containing relevant instrumentation and a battery charge control system. This in turn connects to a substantial deep-cycle sealed lead acid battery, allowing the application of locally sourced or optional loads. The solar panel is supplied with an adjustable stand allowing inclination to be varied, together with an accurate panel-mounted solarimeter to measure radiation incident on the panel (kW/m²) and compare it with electrical power generated and system efficiency. Learn about PHOTOVOLTAIC TRAINER exporters for optimal educational outcomes.. The instrumentation allows isolated panel characteristics and overall system performance to be measured under load. A monitoring point enables detailed investigation of the charge controller operation by advanced students (oscilloscope required, not included). Learn about PHOTOVOLTAIC TRAINER suppliers for optimal educational outcomes.. Optional additional panels and batteries are available to expand system capacity. For long-term monitoring, an optional data acquisition system is available as a factory-fitted or user-fitted accessory. Learn about PHOTOVOLTAIC TRAINER price for optimal educational outcomes.. An optional inverter enables demonstration of solar power for AC power generation. For environments where solar radiation cannot be relied upon, an optional solar simulator is available. Learn about PHOTOVOLTAIC TRAINER renewable-energy India for optimal educational outcomes.. This unit is complementary to the Flat Plate Solar Energy Collector, which allows students to examine water heating directly from solar energy.

• Solar panel: High quality nominal 80W, 12V (area 0.6 m²)
• Instrumentation panel: Battery charge controller, panel loading system, power and panel temperature measurement, power outlet, and integral safety cut-outs
• Battery: Deep-cycle, sealed lead acid, 110 Amp-hour
