Pin and Vee Block Tester for Oil Fuel and Petroleum Testing Instruments

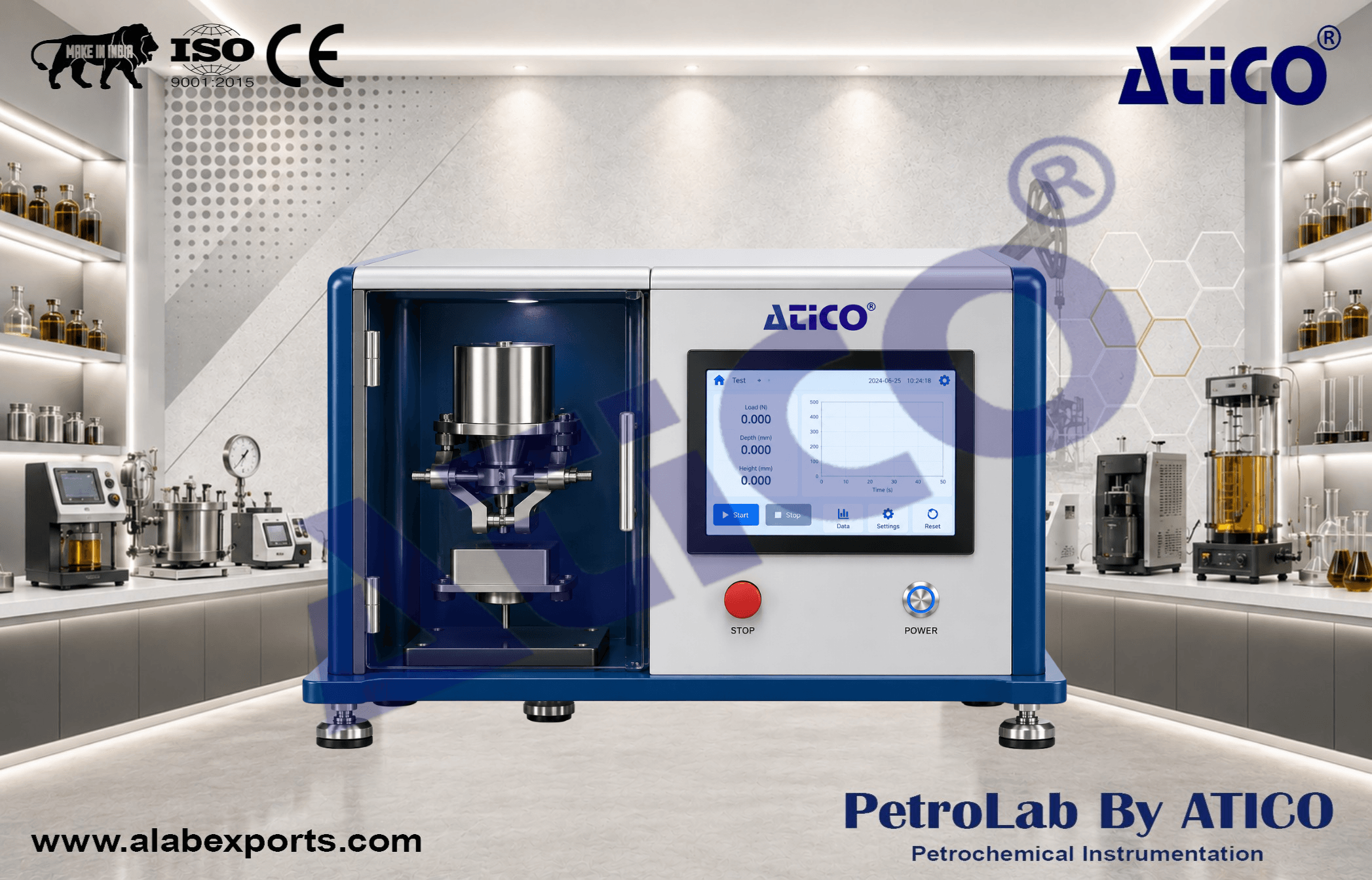

The Pin and Vee Block Tester evaluates the wear-preventive and load-carrying properties of fluid lubricants and the wear endurance life of film lubricants. The instrument consists of a rotating pin pressed between two stationary steel Vee blocks, with load applied through a ratchet mechanism. An automatic load-advancement mechanism enables load ramping during extreme-pressure testing. The pin and Vee blocks are immersed in the lubricant sample inside a heated test cup under controlled conditions. Wear, torque, load, temperature, and endurance life are evaluated during testing. The system includes data acquisition software for recording, comparing, and reporting test results. It features automatic test starting at the set temperature, over-temperature and over-torque protection, speed control within specified limits across the load range, and calibration provisions for load, torque, and wear. Manufactured by Atico Export with a focus on precision, durability, and reliable performance for lubricant wear and extreme-pressure testing applications.

• Evaluation of wear-preventive properties of fluid lubricants
• Determination of load-carrying properties of lubricants
• Assessment of wear endurance life of film lubricants
• Extreme-pressure testing
• Measurement of wear, torque, load, and temperature

Test Load:

• 0–4500 lbf

Torque Range:

• 0–100 in-lb

Test Speed:

• 100–500 RPM
• Maintains test speed within specified limits over the entire load range

Temperature Range:

• Ambient to 200°C

Test Duration:

• 0–999.9 minutes

Control and Safety Features:

• Automatic test start at the set temperature
• Over-temperature protection
• Over-torque protection
• Automatic load advancement during extreme-pressure testing
• High-performance sensor covering the entire test load range with a single-load cell and adequate resolution

Calibration:

• Calibration kit for load, torque, and wear

Data Acquisition and Software:

• Measures and records test torque, load, temperature, and wear
• Software for viewing, comparing, and reporting test results

Standard Accessories:

• Calibration kit
• Measuring microscope
• Data acquisition software
• 6-inch steel ruler
• Brinell ball attachment
• Dust cover
• Test pins: 50
• Shear pins: 50
• Vee blocks: 100
