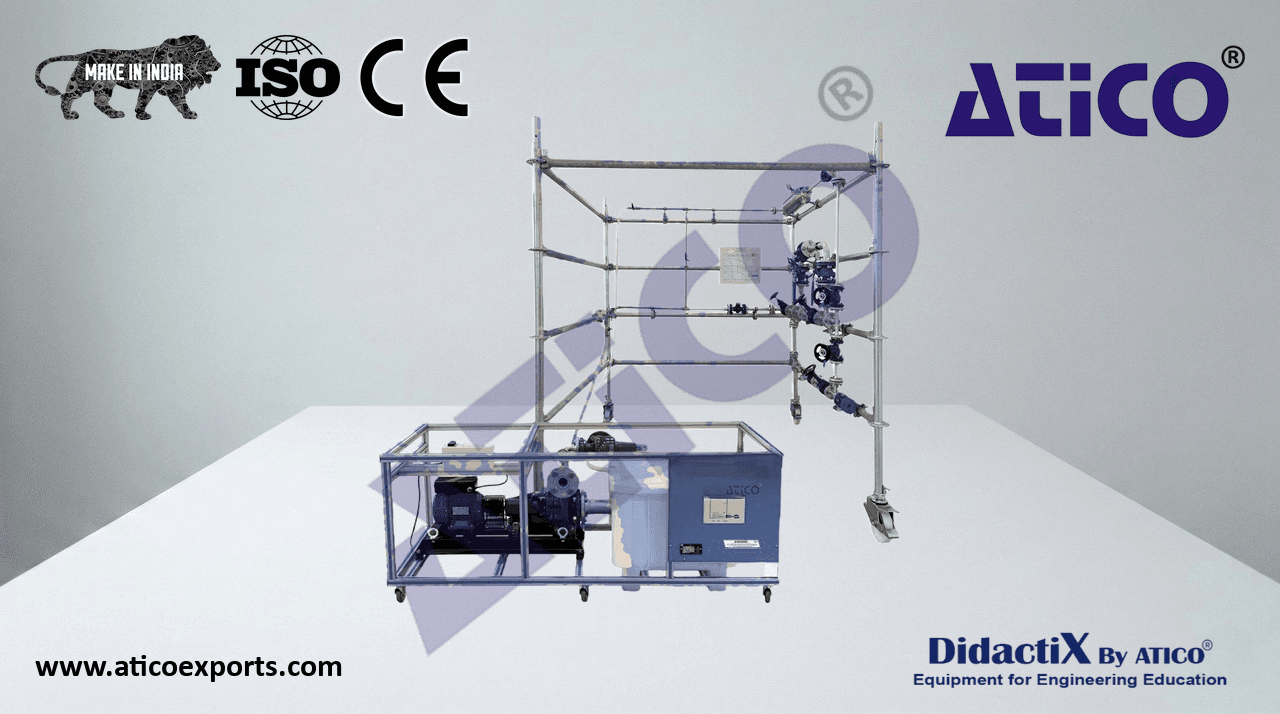

ATENG 11933 — Pipes, Valves and Fittings Assembly Unit
“U” shaped frame to mount the pipes.
The unit includes wheels to facilitate its mobility.
Diagram in the front panel with distribution of the elements similar to the real one.
Pipe circuit formed by tubes, bends, T-shaped pieces and reducers (DN15, DN25 and DN40).
- Pressure vessel with manometer:
DN15 connector for PN16.
- Manometer, range: 0 – 10 bar.
- Connecting elements:
- Types: Flange and cutting ring screw fitting. ATENG 11933 detail
- Sizes: DN40, DN25, DN15 and G½”.
- Set of valves and accessories made of stainless steel and cast iron:
- Gate valve: DN40 for PN16.
- Four bellows valves: DN15 and DN25 for PN16.
- Three ball valves: DN40 and DN15 for PN16.
Three ball valves with cutting ring screw fitting in G½”.
- Condensate drain: DN25 for PN16.
- Sight glass: DN15 for PN25.
- Two check valve: DN15 for PN16.
Flanged filter in DN15 for PN16.
- Conical seat valve: DN25 for PN16.
- Two manometers, range: 0 – 10 bar.
Set of tools.
Ladder.
Cables and accessories, for normal operation.
