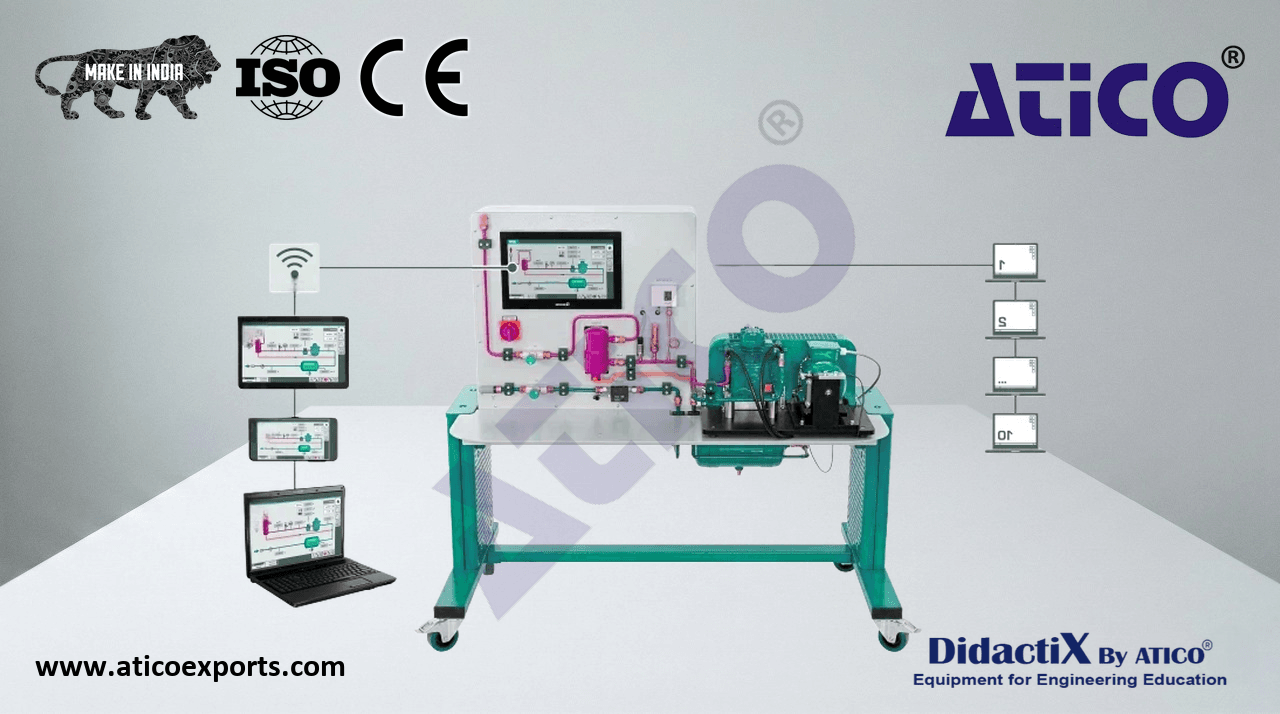

Piston compressor in refrigeration Deluxe

Smaller refrigeration systems usually have a piston compressor. Piston compressors are positive displacement machines. These differ in their characteristics decisively from flow equipment which include the turbo compressors that are common in very large systems.

• test stand for piston compressor from refrigeration
• open process with air
• typical open two-cylinder compressor
• control of the experimental plant using a PLC, operated by touch screen
• screen mirroring: possible to mirror the user interface on up to 10 end devices
• drive via asynchronous motor with frequency converter for speed adjustment
• inlet pressure and outlet pressure (pressure ratio) adjustable via valves
• instruments: flow meter, sensors for pressure, temperature, speed, torque (via force)
• data acquisition via PLC on internal USB memory, access to stored measured values via WLAN/LAN with integrated router/LAN connection to customer’s own network or direct LAN connection without customer network
