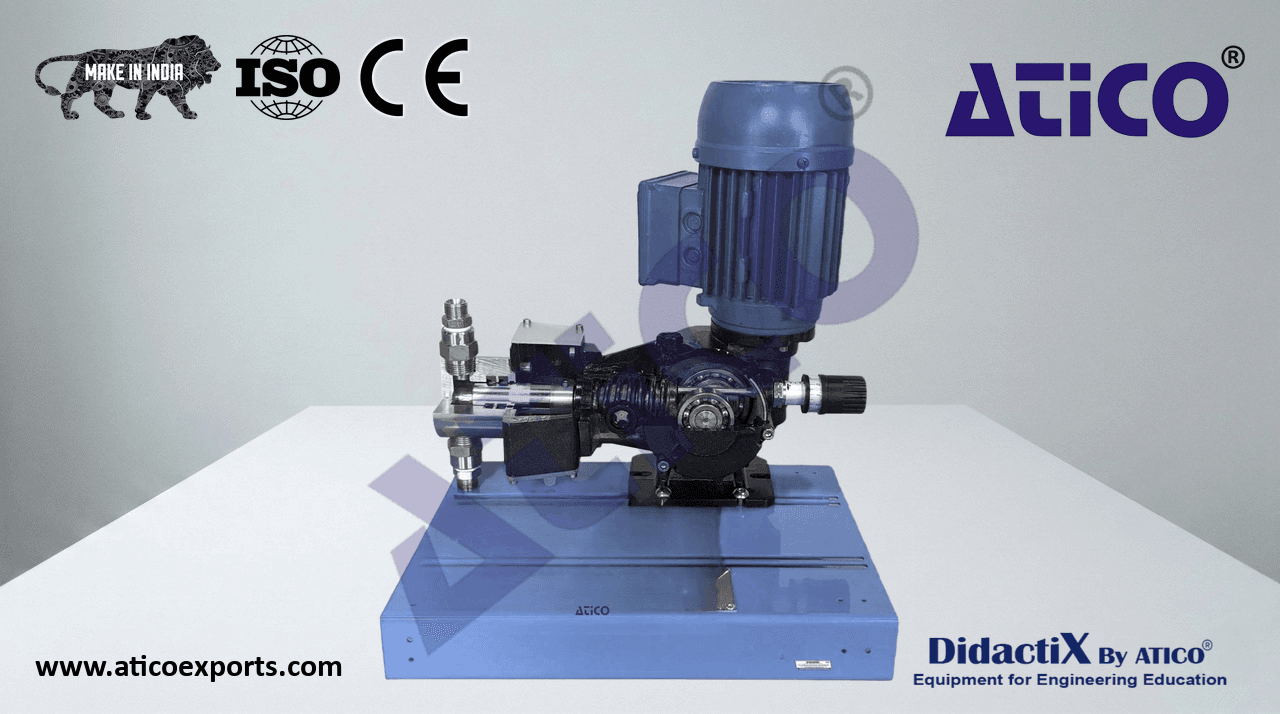

Piston Pump Cutaway Model Unit

The Piston Pump Cutaway Model Unit, allows the students to visualize the inner parts of a piston pump, to evaluate the relation with each other accurately and to understand their function.

ATENG 11915 — Piston Pump Cutaway Model Unit

Bench-top unit with adjustable legs.

Anodized aluminum frame and panels made of painted steel.

Fixed equipment on a base plate with handles for easy transport.

• Piston pump:
• Material: steel / cast iron.
• Max. flow rate: 1000 l/h.
• Max. head: 60 m.
• Suction connection: 1”.
  PPCP detail
• Discharge connection: 1”.
