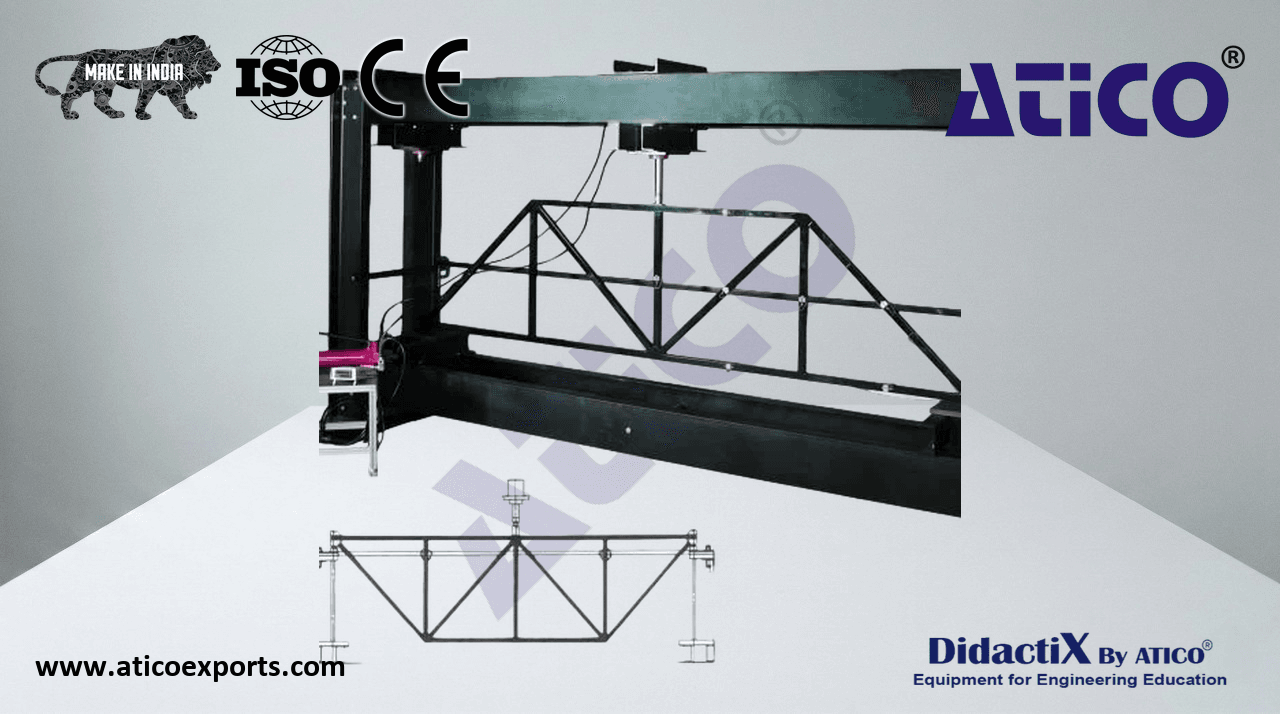

PLANE FRAMES FITTED WITH STRAIN GAUGES

A standard truss made from fully welded hollow square section steel members with 45° sections. Features special end mountings allowing different end bearing conditions (pinned and roller) to be used. The end mountings also allow the frame to be inverted for work on an inverted truss. Learn about PLANE FRAMES FITTED WITH STRAIN GAUGES price for optimal educational outcomes.. Both end bearing arrangements are supplied.

• Section: 40 × 40 mm box section, approx. 3 mm wall thickness
• Fully welded joints
• Seven members strain gauged
• Pinned and roller end bearings supplied
• High level reaction supports provided
