Planetary Ball Mill (Net weight – 118 kg)

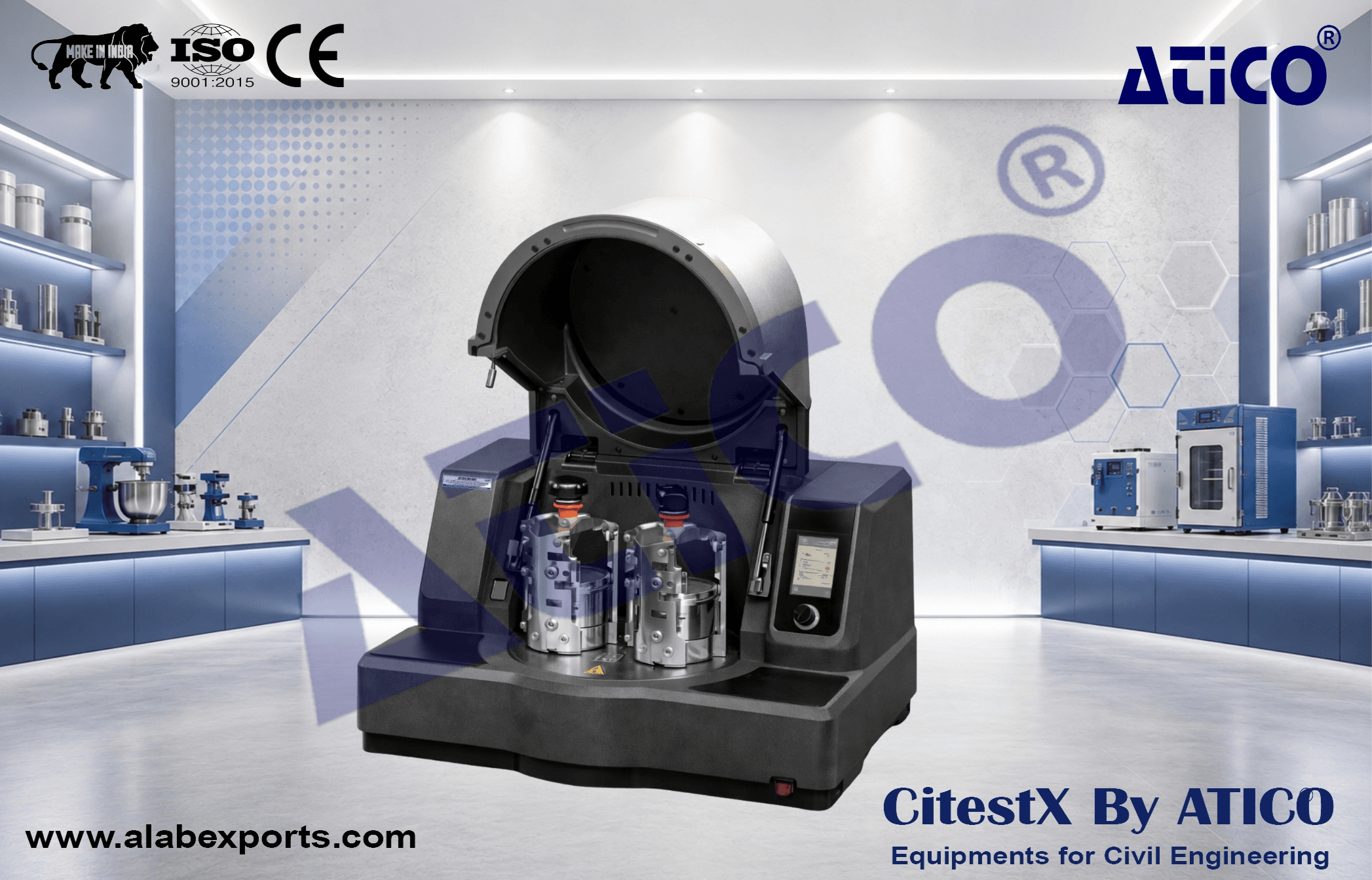

The Planetary Ball Mill (Net weight – 118 kg) is a powerful and ergonomic benchtop model with two grinding stations for grinding jar volumes up to 500 ml. This setup allows for processing up to 2 x 220 ml sample material per batch. Thanks to the high maximum speed of 800 rpm, extremely high centrifugal forces result in very high pulverization energy and consequently in short processing times.

The Planetary Ball Mill (Net weight – 118 kg) is ideally suited for virtually all industries where the quality control process places the highest demands on purity, speed, fineness and reproducibility. Thanks to its enormous energy input of up to 64.4 times the acceleration of gravity, this mill is the perfect choice for tasks in research like mechanochemistry (co-crystal screening, mechanosynthesis, mechanical alloying and mechano-catalysis), or for ultrafine colloidal grinding on a nanometer scale.

THE POWERFUL, ERGONOMIC PLANETARY BALL MILL

• Max. speed 800 rpm, large sun wheel

• Up to 10 mm feed size and 0.1 °m final fineness

• 2 grinding stations for jars of min. 12 ml and max. 500 ml, jars of 12 – 80 ml can be stacked (two jars each)

• GrindControl to measure temperature and pressure inside the jar.

• Aeriation lids to control the atmosphere inside the jar

• Bench top model, touch screen, storable SOPs and cycle programs, 5 different jar materials for dry and wet grinding

FAST & POWERFUL

• Loss-free size reduction down to the submicron range

• Wet grinding yields particle sizes in the nanometer range (<100 nm)

• Variable speed from 50 to 800 rpm, speed ratio 1:-2

• Milling with up to 64.4 x acceleration of gravity

• Batch-wise processing with max. 2 x 220 ml sample

• Possibility to stack jars enables simultaneous processing of 4 samples

SAFE AND EASY HANDLING

• Easy and safe clamping of the grinding jars thanks to lockable sun wheel

• The Safety Slider prevents starting the machine without securely clamped jars

• Perfect stability on the lab bench thanks to FFCS -technology

• Comfortable parameter setting via Touch display

• Automatic grinding chamber ventilation with directed air stream for perfect jar cooling

• Programmable starting time

• Both grinding jars are freely accessible

• Ergonomic clamping unit with smooth surfaces

SETTINGS & OPTIONS

• Dry and wet milling possible

• Suitable for long-term trials, 99 h max.

• Programmable breaks e.g. for cooling

• Automatic calculation of the total process time

• Direction reversal helps to minimize caking effects

• Smart service interval notification based on usage

FUNCTIONAL PRINCIPLE

The grinding jars are arranged eccentrically on the sun wheel of the planetary ball mill. The direction of movement of the sun wheel is opposite to that of the grinding jars in the ratio 1:-2.The grinding balls in the grinding jars are subjected to superimposed rotational movements, the so-called Coriolis forces.

The difference in speeds between the balls and grinding jars produces an interaction between frictional and impact forces, which releases high dynamic energies. The interplay between these forces produces the high and very effective degree of size reduction of the planetary ball mill.

Applications :

• pulverizing, mixing, homogenizing, colloidal milling, mechanical alloying, mechanochemistry, co-crystal screening

Field of application :

• agriculture, biology, chemistry, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals

Feed material :

• soft, hard, brittle, fibrous - dry or wet

Size reduction principle :

• impact, friction

Material feed size :

• < 10 mm

Final fineness :

• < 1 °m, for colloidal grinding < 0.1 °m

Batch size / feed quantity :

• max. 2 x 220 ml

No. of grinding stations :

• 2

Speed ratio :

• 1 : -2

Sun wheel speed :

• 50 - 800 min-1

Effective sun wheel diameter :

• 180 mm

G-force :

• 64 g

Type of grinding jars optional :

• areation covers, safety closure devices

Material of grinding tools :

• hardened stainless steel, tungsten carbide, agate, sintered aluminum oxide, zirconium oxide

Grinding jar sizes :

• 12 ml / 25 ml / 50 ml / 80 ml / 125 ml / 250 ml / 500 ml

Stackable grinding jars :

• 12 ml / 25 ml / 50 ml / 80 ml

Adapter for single-use glas vials :

• 24 x 1.5 ml / 7 x 20 ml

Setting of grinding time :

• digital, 00:00:01 to 99:59:59

Interval operation :

• yes, with direction reversal

Interval time :

• 00:00:01 to 99:59:59

Pause time :

• 00:00:01 to 99:59:59

Storable SOPs :

• 12

Storable cycle programs :

• 4

Measurement of input energy possible :

• yes

Interface :

• USB, RASPI

Drive :

• 3-phase asynchronous motor with frequency converter

Drive power :

• 2,5 kW

Electrical supply data :

• 200-240 V, 50/60 Hz

Power connection :

• 1-phase

Protection code :

• IP 20

Power consumption :

• ~ 3335 VA

W x H x D closed :

• 745 x 525 x 580 mm

Net weight :

• ~ 118 kg

Standards :

• CE

Patent / Utility patent :

• yes
