PLASTIC BENDING OF BEAMS

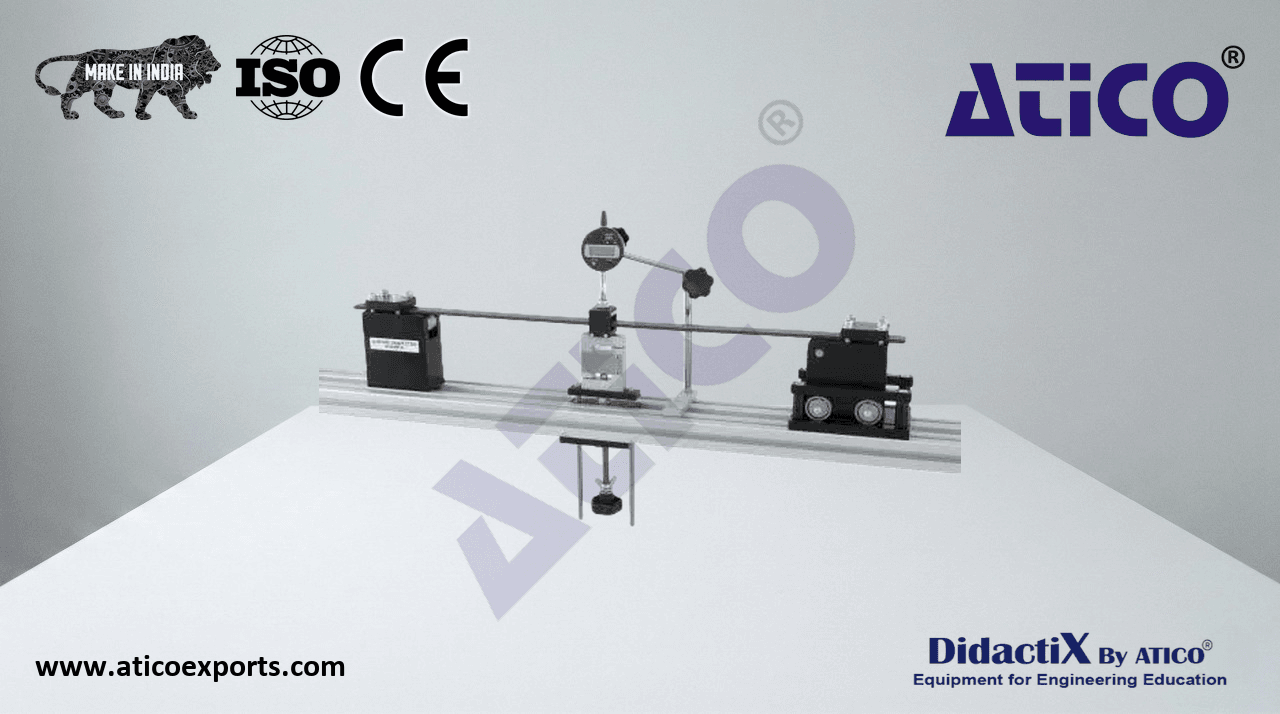

The apparatus provides two end supports – one for a completely fixed end and one offering horizontal travel. Both supports create simple supports (knife edges) with clamp plates that restrict end rotation to produce fixed ends. A single point load is applied via a fine screw jack mechanism with integral load cell. Learn about PLASTIC BENDING OF BEAMS price for optimal educational outcomes.. The displacement of the test beam within its elastic and plastic regions is measured using a dial gauge. Load cell and dial gauge outputs connect into a digital interface (sold separately). Learn about PLASTIC BENDING OF BEAMS suppliers for optimal educational outcomes.. A set of black mild steel beams is supplied, with further sets available separately.

• Material: Black mild steel
• Beam section: 20 mm × 5 mm
• Beam length: 800 mm
• Digital Dial Gauge: 12.7 mm travel; 0.01 mm resolution
• Loading Mechanism: 0–500 N
