PLASTIC BENDING OF PORTALS

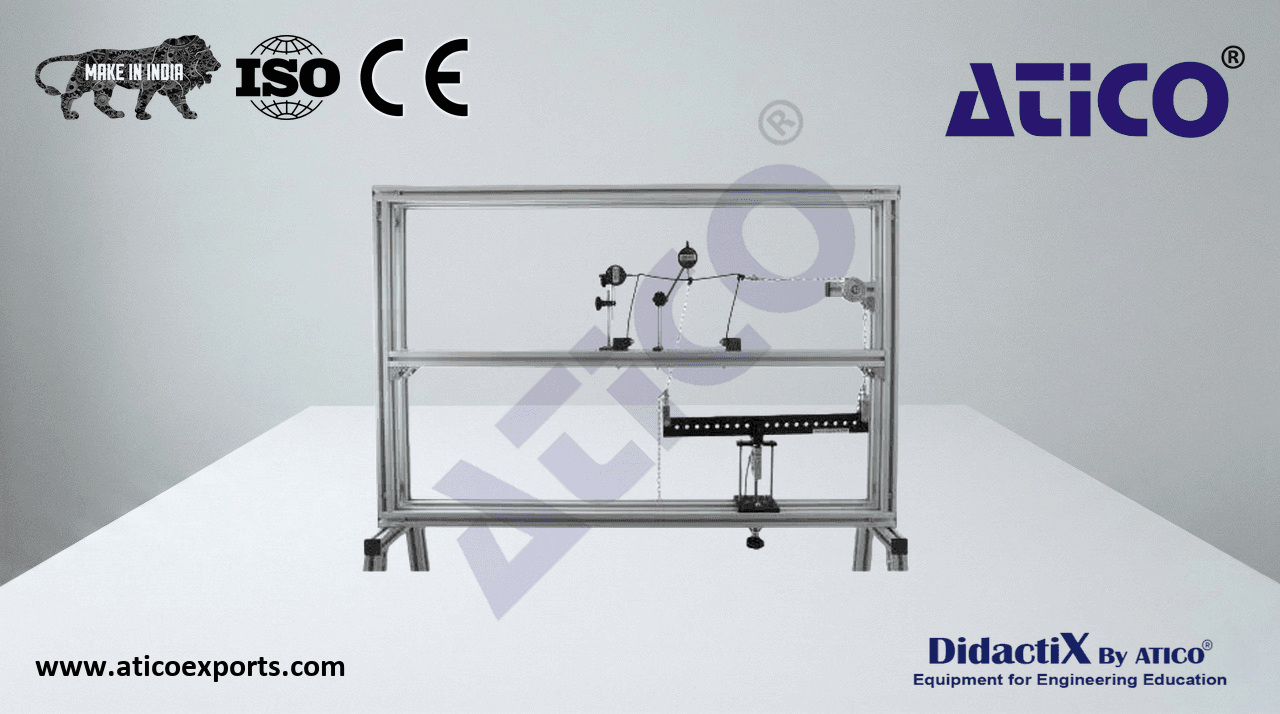

Two portal frames (pitched and rectangular) are mounted within two ground supports, in either a pinned or fixed condition. A proportioning bar is held horizontally by loading chains that run to the portal frame and to a screwjack loading mechanism with integral load cell. Depending on the position of the loading mechanism on the proportioning bar, the proportion of the load applied either horizontally or vertically can be varied. Learn about PLASTIC BENDING OF PORTALS specifications for optimal educational outcomes.. The applied load is measured using the integral load cell, fed into a digital interface (sold separately). Two moveable dial gauges are used to monitor deflections into the plastic range of deformation. Learn about PLASTIC BENDING OF PORTALS price for optimal educational outcomes.. Additional portal sets are available as an optional extra.

• Portal material: 13 × 3 mm black mild steel; 300 mm span
• Loading Mechanism: 0–500 N
• Proportioning beam: 20 through holes for load variation; 25 mm pitch
• Digital Dial Gauge: 12.7 mm travel; 0.01 mm resolution
