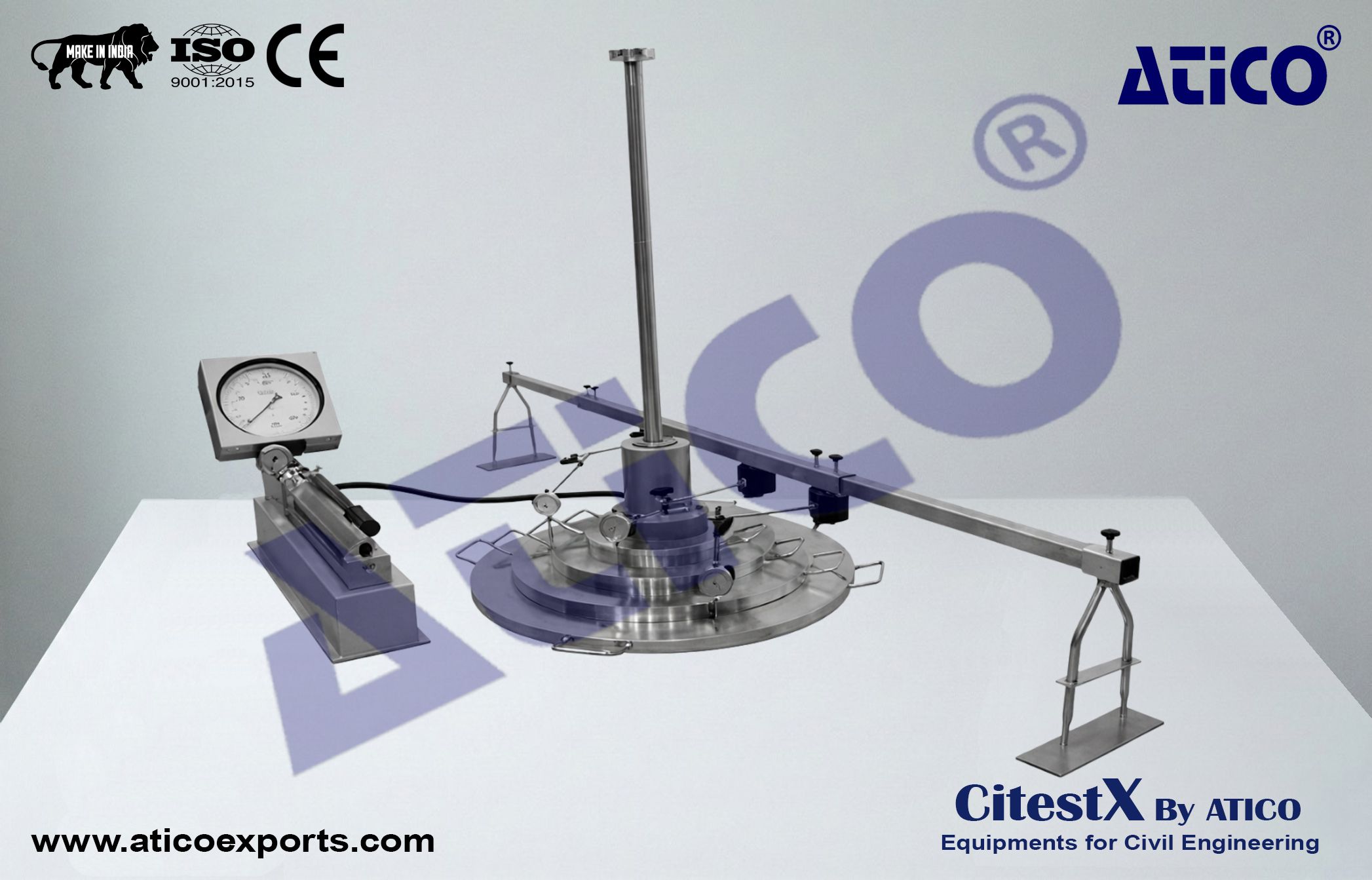

Plate Bearing Test

Usage :

• Used to determine ultimate bearing capacity of foundations by providing load deformation characteristics.

Construction :

• Solid-Robust Construction

MS Plate :

• Size : 60 x 60 x 25 mm – 1 No.;
• 45 x 45 x 25 mm – 1 No.;
• 30 x 30 x 25 mm – 1 No.

Pressure Gauge :

• Range : 0 – 500 kN x 0.5 kN

Dial Gauge :

• 0.01 x 25 mm

Flexible Metal Pipe :

• Length : 5 mtr.

Ball and Socket :

• Provided for arrangement between bearing plate and the jack (1 No.)

Extension Rod :

• Dia. : 12 mm x Length 25 cm approx.

Magnetic Base :

• Provided with a female thread on top to hold extension rod.

Top End Plate :

• Dia. : 50mm with male thread for positioning the dial gauge plunger and fitting onto the extension rods.

Columns :

• Dia. : 15 cm x Length : 25 cm with flanges complete with four bolts and nuts.
• Dia. : 15cm x Length : 50 cm with flanges complete with four bolts and nuts.

Bridge Support :

• Length : 5 mtr. of welded steel angle construction.

Standards Compliance :

• IS 1888 1962, ASTM D 1194, BS 13779
