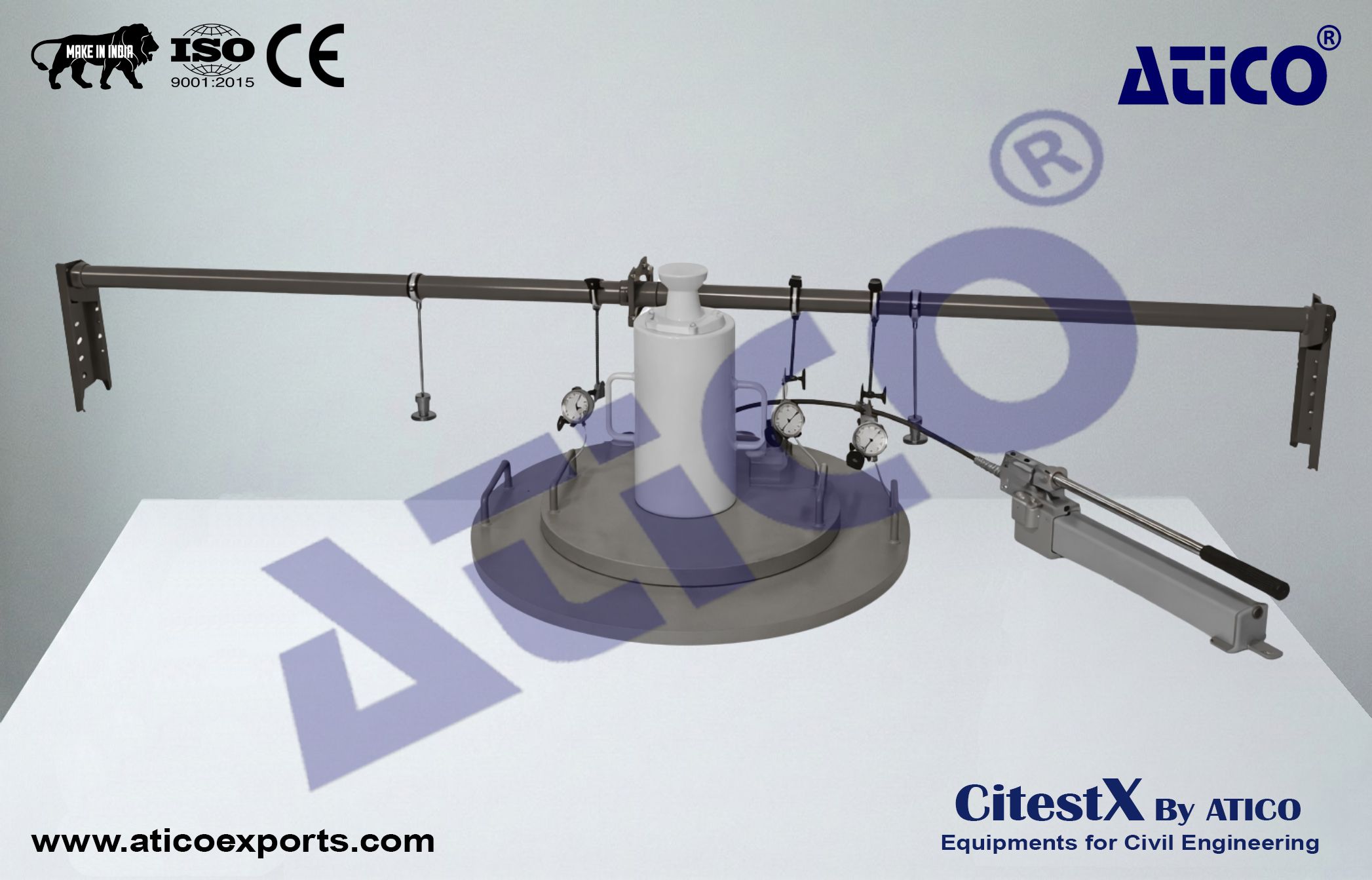

Plate Bearing Test Set

Standards Compliance :

• Complied as per ASTM D1194, 1195, 1196, BS 1377-9

Application :

• This test is performed for the determination of the bearing capacity of a soil in-situ on road constructions, foundations, road subgrades and airport and highway pavements.

Specifications :
100 kN capacity Plate Bearing Test Set consists of :

• 100 kN capacity Piston Assembly and Hydraulic Hand Pump
• Analog Manometer
• 4 Analog Dial Bars
• 3 pcs. 30 mm travel ° 0.01 mm Analog Dial Gauges with Dial Gauge Holders
• °12– (305 mm) Loading Plate
• °18– (457 mm) Loading Plate

Dimensions (cm) :

• 80°33°60

Weight (kg) :

• 100
