PLC application: mixing process

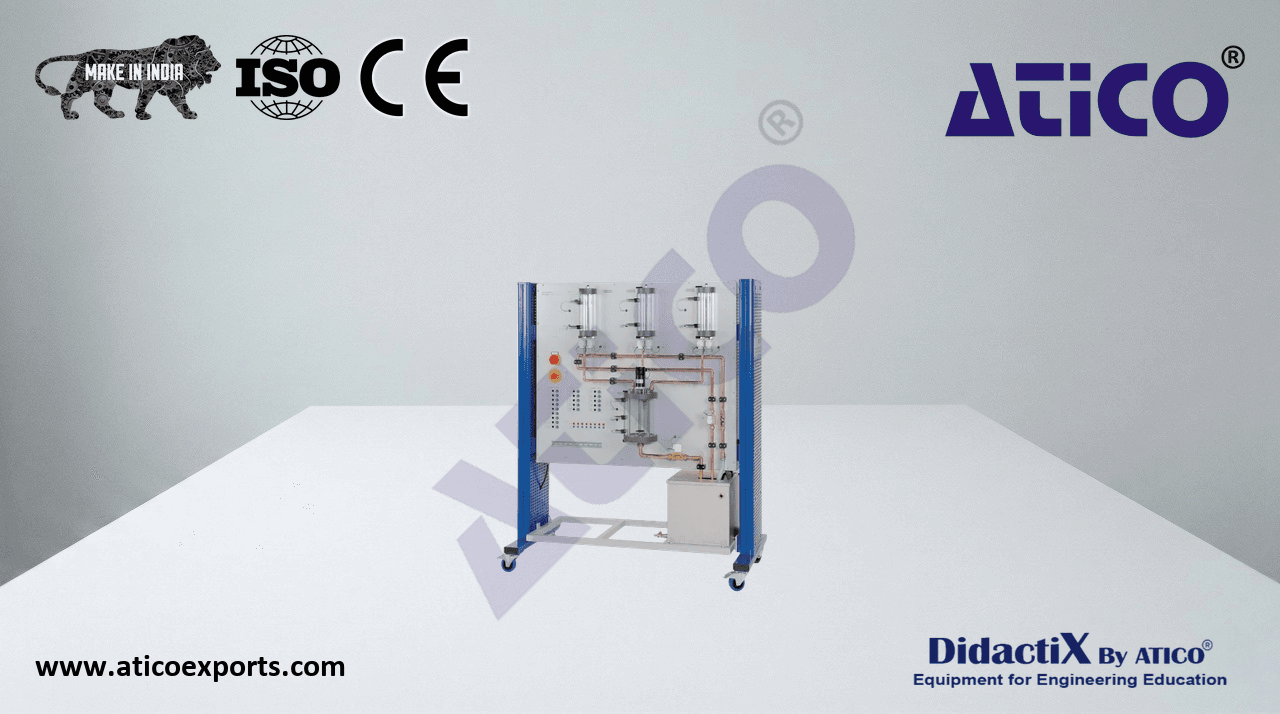

This trainer for PLC applications can be used to create complex PLC control functions from the field of process engineering, particularly for processes involving metering and mixing. The system consists of the base frame with a storage tank, a centrifugal pump and a panel on which all components are clearly laid out. A pump delivers water to three tanks, controlled via solenoid valves. Learn about PLC application: mixing process manufacturers for optimal educational outcomes.. The level of water in the three tanks is monitored by capacitive proximity switches with adjustable sensitivity. The fluid from the three tanks can be mixed together in the downstream mixing tank. Learn about PLC application: mixing process price for optimal educational outcomes.. The mixing tank is also equipped with three proximity switches. A stirring machine assists the mixing process. Learn about PLC application: mixing process specifications for optimal educational outcomes.. All the tanks are transparent, so the conveying and mixing processes are clearly observable.

• clearly laid out trainer as basis for the use of a PLC in a process control application involving mixing processes
• transparent mixing tank with 3 capacitive proximity switches to monitor the level
• 3 transparent measuring tanks, each with 2 capacitive proximity switches
• metering from the 3 measuring tanks into the mixing tank via solenoid valves
• mixing assisted by stirring machine in mixing tank
• proximity switch signals processed by PLC via lab jack panel
• control of the 8 solenoid valves, the pump and the agitator also by PLC via lab jack panel
• capacitive proximity switches with adjustable sensitivity
• closed water circuit with centrifugal pump and stainless steel storage tank
• power supply to all components and to PLC by built-in power supply unit
