Pneumatic and Electro-Pneumatic Application

The Pneumatic and Electro-Pneumatic Application, to obtain the necessary knowledge to understand the operation of the most common elements used in pneumatics and electro-pneumatics.

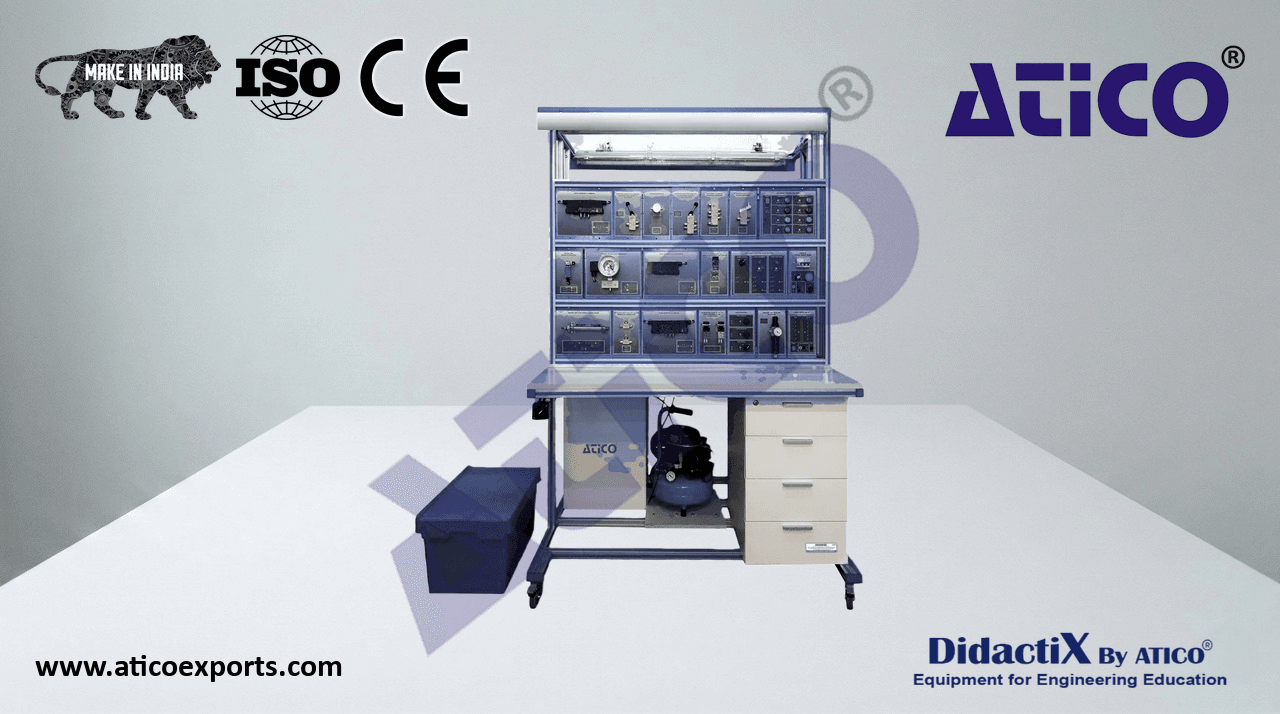

ATENG 12394 — Pneumatic and Electro-Pneumatic Application

• All the pneumatic components of the “ATENG 12394” application:
• Work with a working air pressure of 4 bar.
• The components include Quick-Fitting connectors with Built-in Stop Mechanism for 6 mm tubing.
  Are attached to a screen printed metallic plate with the name and the standard symbol of the component.
  These metallic plates are designed to be placed on the workbenches.
• Optional kits of Pneumatic components:
• PK-K0. Kit to study the pneumatics fundamentals:
• Air treatment components:
  N-ATC01. Air Filter and Pressure Regulator with Pressure Gauge Module.
  Air filter with water trap.
• Pressure regulator: 0 – 12 bar.
• Double scale manometer: bar and psi (0 – 12 bar).
  Discharge valve.
  Shut off valve.
  N-ATC01
• Manual operated valves:
  N-PVHO01. Monostable 3/2 NC Pneumatic Valve Activated by Pushbutton Module (2
  units).
  Mechanical activation by pushbutton.
  Two NC valves with spring return.
• Maximum pressure: 10 bar.
  N-PVHO02. Double Monostable 3/2 NO and NC Pneumatic Valves Activated by
  Pushbutton Module.
  Mechanical activation by pushbutton.
  NO valve with spring return.
  NC valve with spring return.
• Maximum pressure: 10 bar.
  N-PVHO04. Bistable 3/2 NC Pneumatic Valve Activated by Toggle Lever Module.
  Mechanical activation by hand lever.
  Lever with braking device.
• Maximum pressure: 10 bar.
  N-PVHO05. Bistable 5/2 Pneumatic Valve Activated by Toggle Lever Module.
  Mechanical activation by hand lever.
  Lever with braking device.
• Maximum pressure: 10 bar.
  N-PVAFC01. Double One-way Flow Regulator Pneumatic Valve Module.
  Manual activation by a rotary handle.
  Two flow regulator valves.
  Check valve in one direction.
• Maximum pressure: 10 bar.
• Pneumatic operated valves:
  N-PVAO01. Monostable 5/2 Pneumatic Valve Activated by Air Module. N-PVAFC01
  Pneumatic activation.
  Spring return.
• Maximum pressure: 10 bar.
  N-PVAO03. Double Monostable 3/2 NO and NC Pneumatic Valves Activated by Air
  Module.
  Pneumatic activation.
  NO valve with spring return.
  NC valve with spring return. N-PVAO01
• Maximum pressure: 10 bar.
  N-PVL01. “OR” Pneumatic Valve Module.
  “OR” valve.
  Logic function “OR”.
• Maximum pressure: 8 bar.
  N-PVL02. “AND” Pneumatic Valve Module.
  “AND” valve.
  Logic function “AND”.
• Maximum pressure: 8 bar.
• Pneumatic actuators:
  N-PACT01. Pneumatic Simple Effect Cylinder Module.
  Stainless steel.
  Spring return.
  Normally returned rod.
• Maximum pressure: 10 bar.
• Stroke of 100 mm. N-PACT01
  3

Specifications

• Accessories:
  N-PCCA01. Pneumatic Components for Circuit Assembly 1.
• 25 meters of blue polyurethane flexible 6 mm tubing.
• 25 meters of red polyurethane flexible 6 mm tubing.
• 25 meters of transparent polyurethane flexible 6 mm tubing.
• Tube-cutter for 6 mm tubing.
• Tube-extractor for 6 mm tubing.
• Set of 20 sealing plugs for 6 mm tubing.
• Set of 20 “T” type push-in fittings for 6 mm tubing.
• Set of 20 “Y” type push-in fittings for 6 mm tubing.
• In-line check valve for 6 mm tubing.
• Set of 10 silencers for 6 mm tubing.
• Hard plastic box to keep the pneumatic elements of the unit:
  Polypropylene.
• Capacity: 58 l.
  Lid attached to the box.
• Required elements (Not included):
• ATENG 12395. Silent Air Compressor Unit.
  Designed to work with the units.
  Single-phase motor with 340 W.
  Low noise level with 40 dB of maximum.
• Boiler capacity: 9 l.
• Maximum pressure: 8 bar or 0.8 MPa.
• Maximum air flow: 50 l/min.
  Safety relief valve.
  Start/stop switch.
• Double scale manometer psi and bar with a range from 0 to 12 bar to measure the air pressure
  ATENG 12395
  before the air filter regulator.
• Air filter regulator (FR):
• Double scale manometer psi and bar with a range from 0 to 12 bar to measure the air pressure
  after the air filter regulator.
  Air filter with drain.
• Air pressure regulator from 0 to 8 bar.
• 6 mm quick release connector of 6mm for pneumatic flexible tubes.
  Oil level indicator.
  The oil necessary to work is included with the unit.
  Include the connector types to work with pneumatic applications of.
