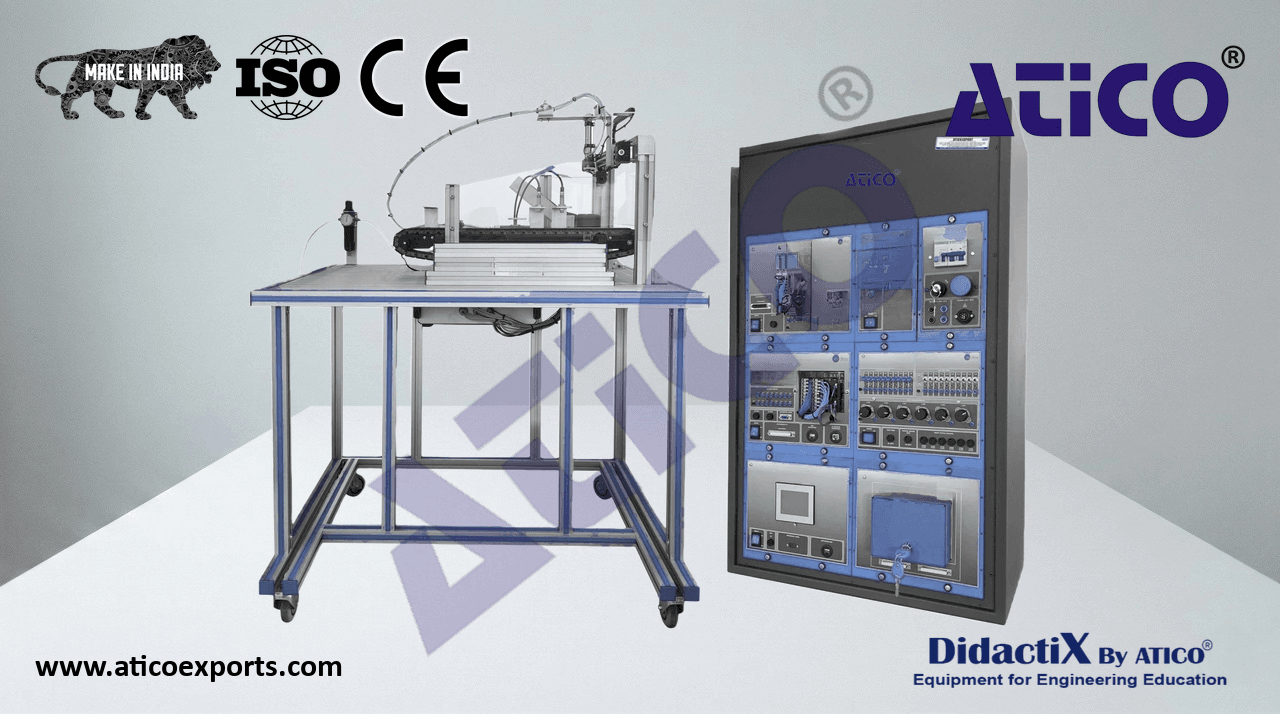

Pneumatic Handling and Conveyor Belt Workstation

The Pneumatic Handling and Conveyor Belt Workstation, to let students getting familiar with automatic systems with conveyor systems, including PLC, industrial sensors, and pneumatic actuators.

ATENG 12581 — Pneumatic Handling and Conveyor Belt Workstation

• The “ATENG 12581” pneumatic station includes the following elements:
• N-FAULT-KB. 20-Fault Injection Module.
  Red key box module with 20 switches inside.
  Two DB37 connectors.
• Pneumatic circuit:
• Air treatment unit:
  Filter-regulator and water trap.
  N-FAULT-KB
  Manometer with double scale indicator.
  Shut-off valve.
  Double acting pneumatic actuator.
  Rotary pneumatic actuator.
  Pneumatic monostable 5/2 solenoid valves.
  Two pneumatic monostable 3/2 solenoid valves.
• Vacuum circuit:
  Telescopic vacuum cup.
  Venturi effect vacuum ejector.
  Two pneumatic monostable 2/2 solenoid valves.
  Pressure relief valve.
• Electrical components:
  DC motor.
• Sensors:
  Two capacitor sensors.
  Two limit switches.
  Two reed effect limit switches.
• Fault generation module:
  Box with lock.
  Allows to generate 20 different faults.
  Each fault is generated through toggle switch.
• PLC Programming Software:
  Programming software developed according to the standard IEC 61131 – 3.
  Compatible with Windows operating systems.
• Five programming languages:
  Ladder Diagram (LD). Structured Text (ST). Instructions List (IL). Sequential
  Function Chart (SFC). Function Block Diagram (FBD).
  Remote programming, service, and diagnostics.
  Minimum program size.
  Powerful debugging and monitoring tools.
  Supports user created functions and function blocks.
  Saves project files inside the PLC.
  Examples and Quick Start Tutorial included.
• HMI Touch Screen Programming Software:
• Tools for Screen Creation:
  This Software is a tool designed for programming touch type screens. Thanks to this tool,
  suitable screens and images can be created and designed. It allows to transfer the program to the screen, load projects done from
  the terminal and print screens created.
• Plenty of functions. Screens Creation:
  This Software has plenty of programming tools. Devices for visualizing texts,
  diagrams or data; drawing a button, graph, pilots. This Software allows to
  create functional screens adaptable to each application.
• Drawing Functions: It can be done different programming elements through
  suitable icons and bitmaps.
• Easy Operativity (Click and slip):
  A library of elements allows to program through the mouse, simply slipping an
  element and locating it in its place. (Click and Slip).
• Easy creation of user libraries:
  User libraries can be registered and stored with suitable elements to be used
  in next projects.
• Printing. The different screens of the project can be printed:
  It is possible to visualize a preliminary view. It is also possible to select the screens or
  configurations to be printed.
• Easy use. Bitmaps Editor:
  There is a tool that allows to create, read and modify bitmaps in order to use them as
  screen programming elements. Suitable buttons created from images can be easily made.
  4

Specifications

• Required elements (Required: “ATENG 12395” or “SU-P”. Of the rest of the elements, additionally, required at least
• one) (Not included):
• AE-PLC-PAN-UB. PANASONIC PLC Base Unit.
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase supply hose connecting plug.
  N-ALI02
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-CPU-PAN. Panasonic CPU Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  Overcurrent protection with fuse.
• PLC device, Panasonic FP7:
• High processing speed: 11 ns per basic instruction (step).
• Programming capacity: 120k basic instructions (step).
• Data logging capacity: 256k words. N-CPU-PAN
• Independent memory for comments: 3 MB.
  Compatible with SD / SDHC memory cards up to 32 GB.
• Sixteen digital inputs with voltage levels 0 V and 24 V.
• Sixteen relay type digital outputs with voltage levels 0 V and 24 V.
  Expansion module for extra channels of digital inputs and outputs.
• Web server function:
  HTML web server included in the PLC.
  Up to sixteen sessions at the same time.
  Compatible with the most common search motors.
  Connector for the digital input and output signals.
  Connector for the Ethernet switch module.
• N-SWT-4. 4 Ports Ethernet Switch Module.
• Supply voltage (single-phase): 230 VAC.
• Compact switch module:
  Four Ethernet ports.
  Protection fuse (at supply voltage height).
  N-SWT-4
• AE-PLC-SIE-UB. SIEMENS PLC Base Unit.
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase supply hose connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA. N-ALI02
  Emergency stop push-button.
• N-CPU-SIE. Siemens CPU Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  Overcurrent protection with fuse.
• PLC device, SIEMENS S7 – 1200:
• High processing capacity: 64 bit calculation.
• Program/data memory: 100 kB.
• Load memory: 4 MB expandable with a Siemens memory card. N-CPU-SIE
• CPU processing times for bit operations: 0.085μs/instruction.
• Counting frequency: 100 kHz.
• Twenty-two digital inputs with voltage levels 0 V and 24 V.
• Eighteen relay type digital outputs with voltage levels 0 V and 24 V.
• Two analog inputs of 10 bits with voltage range from 0 V to 10 V.
  Expansion module for extra digital inputs and outputs.
• Web server function:
  HTML web server included in the PLC.
  Compatible with most common search engines.
  Connector for the digital input and output signals.
  Connector to the Profinet/Ethernet switch module.
  5

Specifications

• N-SWT-4. 4 Ports Ethernet Switch Module.
• Supply voltage (single-phase): 230 VAC.
• Compact switch module:
  Four Ethernet ports.
  Protection fuse (at supply voltage height).
  N-SWT-4
• AE-PLC-AB-UB. ALLEN BRADLEY PLC Base Unit.
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase supply hose connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  N-ALI02
  Emergency stop push-button.
• N-CPU-AB. Allen Bradley CPU Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  Overcurrent protection with fuse.
• PLC device Allen Bradley CompactLogix 5370 L1 controller:
  High speed and high performance control.
• Controller tasks: 32.
  N-CPU-AB
• Program per task: 1000.
• Available user memory: 384 KB.
• SD card inbox memory: 1 GB.
  Two Ethernet connectors with a communication rate of 10/100 Mbps.
  USB connection for firmware updates.
• Sixteen digital inputs with voltage levels 0 V and 24 V.
• Sixteen relay type digital outputs with voltage levels 0 V and 24 V.
  Connector for the digital input and output signals.
  Connector for the Ethernet switch module.
• N-SWT-4. 4 Ports Ethernet Switch Module.
• Supply voltage (single-phase): 230 VAC.
• Compact switch module:
  Four Ethernet ports.
  Protection fuse (at supply voltage height).
• AE-PLC-MIT-UB. MITSUBISHI PLC Base Unit. N-SWT-4
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase supply hose connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA. N-ALI02
  Emergency stop push-button.
• N-CPU-MIT. Mitsubishi CPU Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  Overcurrent protection with fuse.
• PLC device, Mitsubishi FX5U:
• High processing speed: 34 ns per basic instruction (step) and 34 ns or more for math instructions.
• Programming capacity: 64000 steps.
  N-CPU-MIT
  SD memory card compatible.
• Sixteen digital inputs with voltage levels 0 V and 24 V.
• Sixteen relay type digital outputs with voltage levels 0 V and 24 V.
• Two analog inputs of 12 bits with voltage range from 0 V to 10 V.
• One analog output of 12 bits with voltage range from 0 V to 10 V.
  Connector for the digital input and output signals.
  Connector to the Ethernet switch module.
  6

Specifications

• N-SWT-4. 4 Ports Ethernet Switch Module.
• Supply voltage (single-phase): 230 VAC.
• Compact switch module:
  Four Ethernet ports.
  Protection fuse (at supply voltage height).
  N-SWT-4
• AE-PLC-OMR-UB. OMRON PLC Base Unit.
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase supply hose connecting plug.
  N-ALI02
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-CPU-OMR. Omron CPU Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  Overcurrent protection with fuse.
• PLC device, OMRON NX1:
• High processing speed: 3.3 ns per basic instruction (step) and 70 ns or more for math
  instruction (for LONG REAL data).
• Programming capacity: 1.5 MB.
  N-CPU-OMR
  SD / SDHC memory card compatible.
• Eighteen digital inputs with voltage levels 0 V and 24 V.
• Fourteen relay type digital outputs with voltage levels 0 V and 24 V.
  Connector for the digital input and output signals.
  Connector for the Ethernet switch module.
• N-SWT-4. 4 Ports Ethernet Switch Module.
• Supply voltage (single-phase): 230 VAC.
• Compact switch module:
  Four Ethernet ports.
  Protection fuse (at supply voltage height).
  N-SWT-4
• ATENG 12395. Silent Air Compressor Unit.

Single-phase motor with 340 W.
Low noise level with 40 dB of maximum.

• Boiler capac ity: 9 l.
• Maximum pressure: 8 bar or 0.8 MPa.
• Maximum air flow: 50 l/min.
  Safety relief valve.
  Start/stop switch. ATENG 12395
• Double scale manometer psi and bar with a range from 0 to 12 bar to measure the air pressure
  before the air filter-regulator.
• Air Filter-Regulator (FR):
• Double scale manometer psi and bar with a range from 0 to 12 bar to measure the air pressure
  after the air filter regulator.
  Air filter with drain valve.
• Air pressure regulator from 0 to 8 bar.
• 6 mm quick release connector for pneumatic flexible tubes.
• Oil level indicator:
  The unit includes the necessary oil for its operation.
  The unit includes the types of connectors needed to work with the pneumatic unit
• SU-P. Large Pneumatic Supply Unit.
  7

Specifications

It is recommended to use the corresponding kits of each brand depending on the PLC selected (Panasonic,

• Siemens, Mitsubishi, Omron and/or Allen Bradley) (Not included):
• ATENG 12398. Automation System Simulation Software.
  2D and 3D systems simulations.
  Configurable simulation speed with the modes “normal simulation”, “slow
  motion simulation”, “step-by-step simulation” and “pause”.
  3D editor to import pieces made with formats compatible with most 3D
  design programs (.STEP,.STL and.IGES).
  Capacity to generate 2D and 3D animations associated to the results of the
  simulation the user is working with.
• Capacity for simulating the following systems:
• Hydraulic and electrohydraulic: according to ISO 1219 – 1 and 1219 – 2 standards, with
  an extensive library of hydraulic and electrohydraulic components with its standardized
  symbol.
• Pneumatics and electro-pneumatics: with an extensive library of pneumatic, electro-
  pneumatic and pneumatic logic components. Capacity to modify the most important
• parameters of each hydraulic and pneumatic component, such as: efficiency curves,
  ATENG 12398
  external loads, leaks, viscosity, thermal characteristics, etc.
• Digital electronics: with an extensive library of standard electronic components (logic gates,
  amplifiers, transistors, displays, multiplexers, etc.).
• Electrical Single-Line Diagram: with a library that enables to create diagrams for all levels of voltage
• usually employed in power generation, transport and distribution networks. Electrical engineering:
  with a library that contains a great amount of components to create simple and complex electrical
  circuits. The models of the components included are generic and real and belong to several
  manufacturers. All the libraries include the components and its standardized symbol.
  All libraries include the component along with its standardized symbol.
• Capacity to program with the following languages:
• GRAFCET: allows encapsulated stages for a better organization of the programmed control
  structures.
• Block Diagram: blocks included are preset but they can be completely configured by
  the user.
• Ladder: includes three libraries to program automata from Siemens, Allen Bradley
  and those fulfilling the IEC61131 – 3 standard, allowing the PLC to program directly.
  It also allows for creating and simulating the PLC program in the automated system
  simulated by the software.
• Digital logic: with an extensive library of logic gates and components configured by the
  user.
  Function blocks with configurable structured text.
  ATENG 12398
  Direct programming in the PLCs from the manufacturers Siemens, Allen Bradley and those fulfilling
  the IEC61131 – 3 standard of the programs simulated in the software.
  Supervision, control and simulation of the manufacturing process of each station and the complete
  assembly by a SCADA system.
  Communication with the PLCs of the unit is performed via OPC protocol.
  Includes the 3D simulation of the automation system with the control panel and the visualization of
  the alarms generated by the system.
• PAN-PLC-K1. PANASONIC PLC Kit 1.
• N-MT. Test Module.
• Supply voltage (single-phase): 230 VAC.
• Twenty digital signal generators:
  Ten toggle switches.
  Ten push-buttons.
  Each digital signal generator is linked to a green LED. N-MT
• Output voltage levels of 0 VDC and 24 VDC.
• Six analog signal generators:
  Six potentiometers.
• Output voltage range from -10 V to +10 V.
  Protection fuses (at supply voltage height).
  8

Specifications

• PAN-PLC-K2. PANASONIC PLC Kit 2.
• N-ESA-PAN. Panasonic Analog I/O Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
• Expansion unit for analog inputs:
• Input voltage range from -10 V to +10 V.
  Four analog inputs.
• Resolution: 12 bits.
  N-ESA-PAN
• Expansion unit for analog outputs:
• Output voltage range from -10 V to +10 V.
  Four analog outputs.
• Resolution: 12 bits.
  Connector for the analog input and output signals.
  Connector for the Ethernet switch module.
• PAN-PLC-K3. PANASONIC PLC Kit 3.
• N-HMIB-PAN. Panasonic Small HMI Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
• HMI device:
  Touch screen.
  TFT screen of 4096 colors.
• Screen size: 71.4 mm (width) x 53.7 mm (height) (3.5 inches).
  N-HMIB-PAN
• Screen resolution: 320 x 240 pixels.
• Backlight: white LED.
  Compatible with SD / SDHC memory cards.
  Connector for the Ethernet switch module.
• PAN-PLC-K4. PANASONIC PLC Kit 4.
• N-HMIA-PAN. PANASONIC Large HMI Module.
• Supply voltage (single-phase): 230 VAC.
• HMI device:
  Touch screen.
• TFT screen of 64k colors with 16:9 format.
• Screen size: 187 mm (width) x 147 mm (height) (7 inches). N-HMIA-PAN
• Screen resolution: 800 x 480 pixels.
  LED backlight with high brightness of 200 cd/m2.
  4 GB flash memory.
  Connector for the Ethernet switch module.
• PAN-PLC-K5. PANASONIC PLC Kit 5.
• N-MOD. Modem Communication Module.
• Supply voltage (single-phase): 230 VAC.
  Router-switch Ethernet network.
  Wifi system to allow a wireless conexion of devices (smartphone, tablet or PC).
  Internet router with RJ-11 socket to connect the phone line.
  Conjunction of practical exercises to perform a web server application. N-MOD
• SIE-PLC-K1. SIEMENS PLC Kit 1.
• N-MT. Test Module.
• Supply voltage (single-phase): 230 VAC.
• Twenty digital signal generators:
  Ten toggle switches.
  Ten push-buttons.
  Each digital signal generator is linked to a green LED. N-MT
• Output voltage levels of 0 VDC and 24 VDC.
• Six analog signal generators:
  Six potentiometers.
• Output voltage range from -10 V to +10 V.
  Protection fuses (at supply voltage height).
  9

Specifications

• SIE-PLC-K2. SIEMENS PLC Kit 2.
• N-ESA-SIE. SIEMENS Analog I/O Module.
• Supply voltage (single-phase): 230 VAC.
• Expansion unit for analog inputs:
• Input voltage range from -10 V to +10 V or 0/4 - 20 mA (configurable).
  Four analog inputs.
• Resolution: 13 bits. N-ESA-SIE
• Expansion unit for analog outputs:
• Output voltage range from -10 V to +10 V or 0/4 - 20 mA (configurable).
  Four analog outputs.
• Resolution: 13 bits.
  Connector for the analog input and output signals.
  Connector to the Profinet/Ethernet switch module.
• SIE-PLC-K3. SIEMENS PLC Kit 3.
• N-HMIB-SIE. SIEMENS Small HMI Module.
• Supply voltage (single-phase): 230 VAC.
• HMI device:
  Touch screen.
  TFT screen of 65536 colors.
• Screen size: 95 mm (width) x 53.9 mm (height) (4.3 inches).
  N-HMIB-SIE
• Screen resolution: 272 x 480 pixels.
• Backlight: white LED.
  Connector for the Profinet/Ethernet switch module.
• SIE-PLC-K4. SIEMENS PLC Kit 4.
• N-HMIA-SIE. SIEMENS Large HMI Module.
• Supply voltage (single-phase): 230 VAC.
• HMI device:
  Touch screen.
  TFT screen of 65536 colors.
• Screen size: 154.1 mm (width) x 85.9 mm (height) (7 inches).
• Screen resolution: 480 x 800 pixels. N-HMIA-SIE
• Backlight: white LED.
  Connector for the Profinet/Ethernet switch module.
• SIE-PLC-K5. SIEMENS PLC Kit 5.
• N-MOD. Modem Communication Module.
• Supply voltage (single-phase): 230 VAC.
  Router-switch Ethernet network.
  Wifi system to allow a wireless conexion of devices (smartphone, tablet or PC).
  Internet router with RJ-11 socket to connect the phone line.
  Conjunction of practical exercises to perform a web server application.
  N-MOD
• AB-PLC-K1. ALLEN BRADLEY PLC Kit 1.
• N-MT. Test Module.
• Supply voltage (single-phase): 230 VAC.
• Twenty digital signal generators:
  Ten toggle switches.
  Ten push-buttons.
  Each digital signal generator is linked to a green LED.
• Output voltage levels of 0 VDC and 24 VDC. N-MT
• Six analog signal generators:
  Six potentiometers.
• Output voltage range from -10 V to +10 V.
  Protection fuses (at supply voltage height).
  10

Specifications

• AB-PLC-K2. ALLEN BRADLEY PLC Kit 2.
• N-ESA-AB. ALLEN BRADLEY Analog I/O Module.
• Supply voltage (single-phase): 230 VAC.
• Expansion unit for analog inputs:
• Input voltage range from 0 V to +10 V.
  Four analog inputs.
• Resolution: 16 bits.
  Input conversion sigma-delta.
  N-ESA-AB
• Expansion unit for analog outputs:
• Output voltage range from 0 V to +10 V.
  Four analog outputs.
• Resolution: 16 bits.
• Accuracy: 0.1% full scale.
  Connector for the analog input and output signals.
  Connector for the Ethernet switch module.
• AB-PLC-K3. ALLEN BRADLEY PLC Kit 3.
• N-HMIB-AB. ALLEN BRADLEY Small HMI Module.
• Supply voltage (single-phase): 230 VAC.
• HMI device:
  Touch screen.
  TFT screen of 65536 colors.
  800 MHz CPU processor with 256 MB memory.
• Screen size: 95 mm (width) x 53.9 mm (height) (4 inches). N-HMIB-AB
• Screen resolution: 480 x 272 pixels.
• Backlight: white LED.
  SD memory card compatible.
  Connector for the Ethernet switch module.
• AB-PLC-K4. ALLEN BRADLEY PLC Kit 4.
• N-HMIA-AB. ALLEN BRADLEY Large HMI Module.
• Supply voltage (single-phase): 230 VAC.
• HMI device:
  Touch screen.
  TFT screen of 65536 colors.
  800 MHz CPU processor with 256 MB memory.
• Screen size: 153.6 mm (width) x 86.6 mm (height) (7 inches).
  N-HMIA-AB
• Screen resolution: 800 x 480 pixels.
• Backlight: white LED.
  SD memory card compatible.
  Connector for the Ethernet switch module.
• AB-PLC-K5. ALLEN BRADLEY PLC Kit 5.
• N-MOD. Modem Communication Module.
• Supply voltage (single-phase): 230 VAC.
  Router-switch Ethernet network.
  Wifi system to allow a wireless connection of devices (smartphone, tablet or PC).
  Internet router with RJ-11 socket to connect the phone line.
  Conjunction of practical exercises to perform a web server application.
  N-MOD
• MIT-PLC-K1. MITSUBISHI PLC Kit 1.
• N-MT. Test Module.
• Supply voltage (single-phase): 230 VAC.
• Twenty digital signal generators:
  Ten toggle switches.
  Ten push-buttons.
  Each digital signal generator is linked to a green LED.
• Output voltage levels of 0 VDC and 24 VDC.
  N-MT
• Six analog signal generators:
  Six potentiometers.
• Output voltage range from -10 V to +10 V.
  Protection fuses (at supply voltage height).
  11

Specifications

• MIT-PLC-K2. MITSUBISHI PLC Kit 2.
• N-ESA-MIT. MITSUBISHI Analog I/O Module.
• Supply voltage (single-phase): 230 VAC.
• Expansion unit for analog inputs:
• Input voltage range from 0 V to +10 V.
  Four analog inputs.
• Resolution: 12 bits.
• Expansion unit for analog outputs: N-ESA-MIT
• Output voltage range from 0 V to +10 V.
  Four analog outputs.
• Resolution: 12 bits.
  Connector for the analog input and output signals.
  Connector to the Ethernet switch module.
• MIT-PLC-K3. MITSUBISHI PLC Kit 3.
• N-HMIB-MIT. MITSUBISHI Small HMI Module.
• Supply voltage (single-phase): 230 VAC.
• HMI device:
  Touch screen.
  TFT screen of 65536 colors.
• Memory for storage: 3 MB.
• Screen size: 89 mm (width) x 35.6 mm (height) (3.8 inches). N-HMIB-MIT
• Screen resolution: 320 x 128 pixels.
• Five backlight LED colors: white, green, pink, orange and red.
  SD memory card compatible.
  Connector to the Ethernet switch module.
• MIT-PLC-K4. MITSUBISHI PLC Kit 4.
• N-HMIA-MIT. MITSUBISHI Large HMI Module.
• Supply voltage (single-phase): 230 VAC.
• HMI device:
  Touch screen.
  TFT screen of 65536 colors.
• Memory for storage: 9 MB.
  N-HMIA-MIT
• Screen size: 154 mm (width) x 85.9 mm (height) (7 inches).
• Screen resolution: 800 x 480 pixels.
• Five backlight LED colors: white, green, pink, orange and red.
  SD memory card compatible.
  Connector to the Ethernet switch module.
• MIT-PLC-K5. MITSUBISHI PLC Kit 5.
• N-MOD. Modem Communication Module.
• Supply voltage (single-phase): 230 VAC.
  Router-switch Ethernet network.
  Wifi system to allow a wireless connection of devices (smartphone, tablet or PC).
  Internet router with RJ-11 socket to connect the phone line.
  Conjunction of practical exercises to perform a web server application.
• OMR-PLC-K1. OMRON PLC Kit 1. N-MOD
• N-MT. Test Module.
• Supply voltage (single-phase): 230 VAC.
• Twenty digital signal generators:
  Ten toggle switches.
  Ten push-buttons.
  Each digital signal generator is linked to a green LED.
• Output voltage levels of 0 VDC and 24 VDC.
  N-MT
• Six analog signal generators:
  Six potentiometers.
• Output voltage range from -10 V to +10 V.
  Protection fuses (at supply voltage height).
  12

Specifications

• OMR-PLC-K2. OMRON PLC Kit 2.
• N-ESA-OMR. OMRON Analog I/O Module.
• Supply voltage (single-phase): 230 VAC.
• Expansion unit for analog inputs:
• Input voltage range from -10 V to +10 V.
  Four analog inputs.
• Resolution: 1/8000 full scale. N-ESA-OMR
• Expansion unit for analog outputs:
• Output voltage range from -10 V to +10 V.
  Four analog outputs.
• Resolution: 1/8000 full scale.
  Connector for the analog input and output signals.
  Connector for the Ethernet switch module.
• OMR-PLC-K3. OMRON PLC Kit 3.
• N-HMIB-OMR. OMRON Small HMI Module.
• Supply voltage (single-phase): 230 VAC.
• HMI device:
  Touch screen.
  TFT screen of 65536 colors.
  N-HMIB-OMR
• Screen size: 129.8 mm (width) x 103.8 mm (height) (3.5 inches).
• Screen resolution: 320 x 240 pixels.
• Backlight: white LED.
  Connector for the Ethernet switch module.
• OMR-PLC-K4. OMRON PLC Kit 4.
• N-HMIA-OMR. OMRON Large HMI Module.
• Supply voltage (single-phase): 230 VAC.
• HMI device:
  Touch screen.
  TFT color screen of 65536 colors.
  N-HMIA-OMR
• Screen size: 202 mm (width) x 148 mm (height) (7 inches).
• Screen resolution: 800 x 480 pixels.
• Backlight: white LED.
  Connector for the Ethernet switch module.
• OMR-PLC-K5. OMRON PLC Kit 5.
• N-MOD. Modem Communication Module.
• Supply voltage (single-phase): 230 VAC.
  Router-switch Ethernet network.
  Wifi system to allow a wireless conexion of devices (smartphone, tablet or PC).
  Internet router with RJ-11 socket to connect the phone line.
  Conjunction of practical exercises to perform a web server application. N-MOD
  Cables and accessories, for normal operation.
