Portal Frame Unit Deluxe

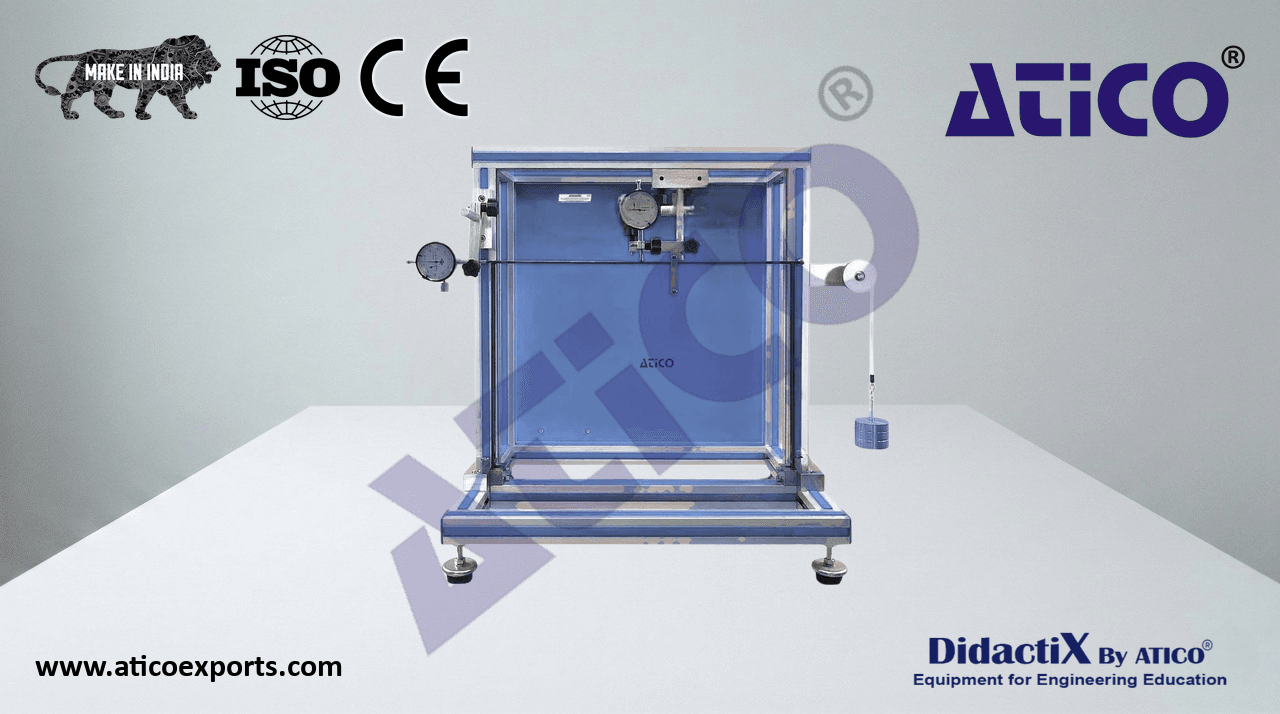

The Portal Frame Unit, allows for the study of vertical and horizontal deflections in a rectangular portal frame when subjected to different weights.

ATENG 12164 — Portal Frame Unit

Bench-top unit.

Anodized aluminum frame and panels made of painted steel.

• The “ATENG 12164” unit mainly consists of:
• Rectangular portal frame made of F114 steel:
• Height: 330 mm.
• Length: 480 mm.
• Section: 15 mm x 4 mm.
  Cord and pulley to hang the masses horizontally.
  Hook to hang masses vertically.
• Two dial gauges, range: 0 –10 mm, accuracy: 0.01 mm.
