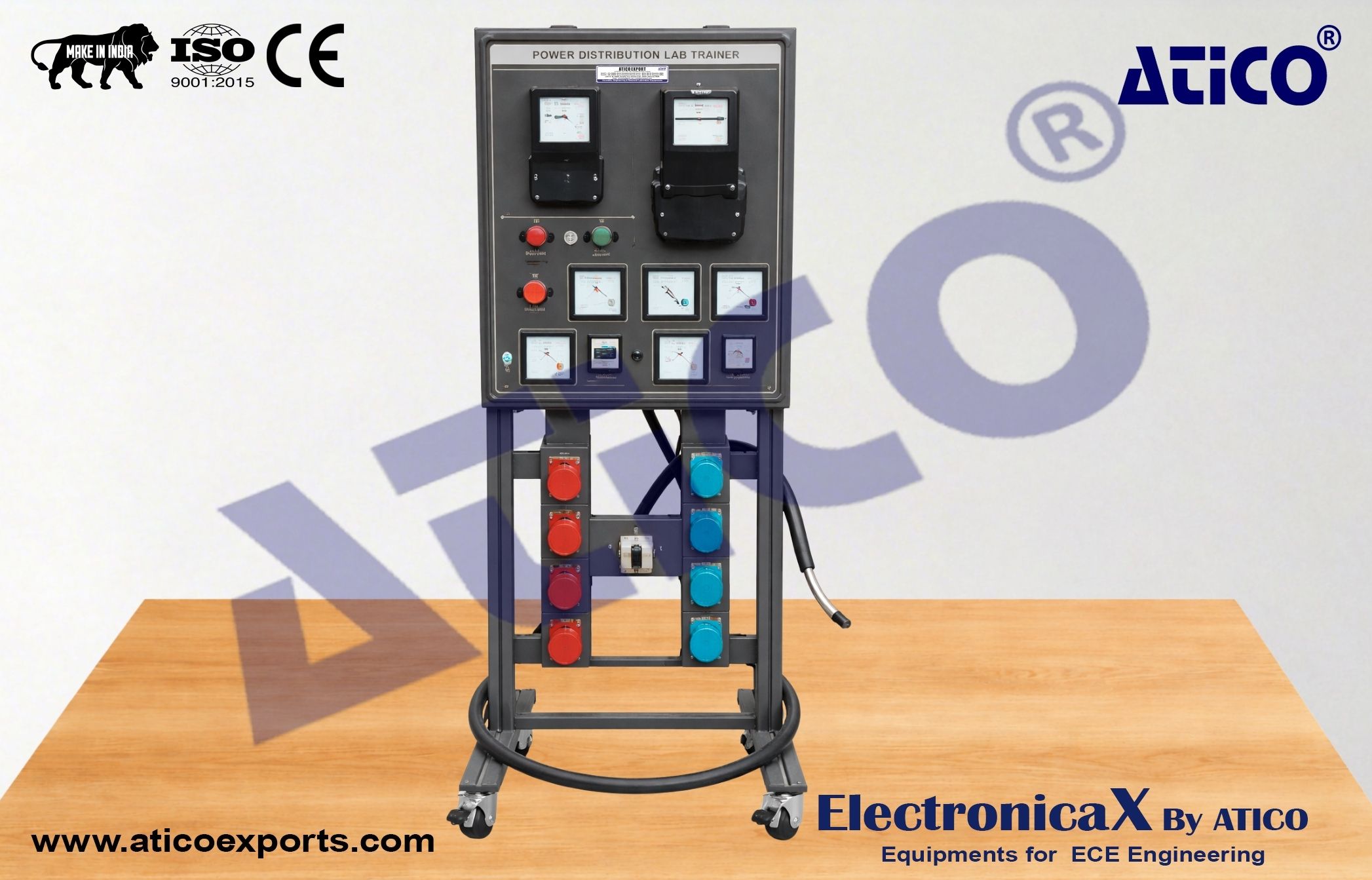

Power Distribution Board

Familiarization of Power Distribution systems design and operation.
Design consolidates all the essential components into an easy to understand and operate system.

Measurement of Voltmeter and Ammeter to monitor the voltage and current in the lines.

• Power Distribution Board with MCCB
• Power Distribution Board with VCB

• System allows for extension boards to be bus bar if needed.
• Familiarization of number of circuit breakers, receptacles, bus bars (can be specially ordered for custom requirements).
• Understanding components such as transformers or additional electrical meters such as frequency meters or power factor meters can be added to the system.
