Pressure distribution in journal bearing

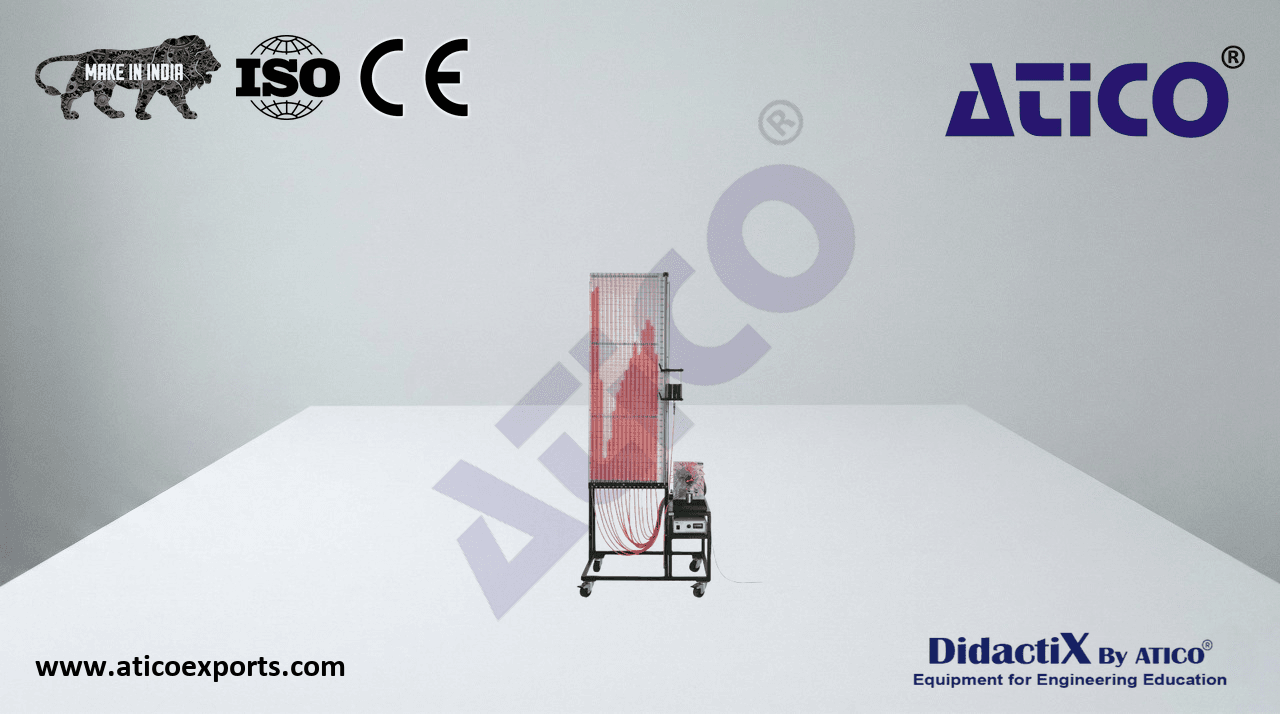

In hydrodynamic journal bearings, the shaft and the bearing shell are separated from each other by a lubricating film during operation. The supporting function of the lubricating film in a journal bearing can be described by the pressure distribution in the bearing gap. This unit is used to visualise the pressure curve in the journal bearing with hydrodynamic lubrication. Learn about Pressure distribution in journal bearing price for optimal educational outcomes.. To do this, there are twelve measuring points around the circumference of the bearing shell and four measuring points in the longitudinal direction. The respective pressures can be read via a 16 tube manometers with reference to the height of the liquid columns. Learn about Pressure distribution in journal bearing suppliers for optimal educational outcomes..

• visualisation and investigation of pressure distribution in journal bearings
• bearing housing is completely transparent
• continuously adjustable speed, electronically controlled
• bearing subjected to load by means of weights
• temperature measurement in the bearing housing
• 12 measuring points on the periphery, 4 measuring points in the longitudinal direction
• pressure distribution indicated with 16 tube manometers
• digital display of speed on the display and control unit
