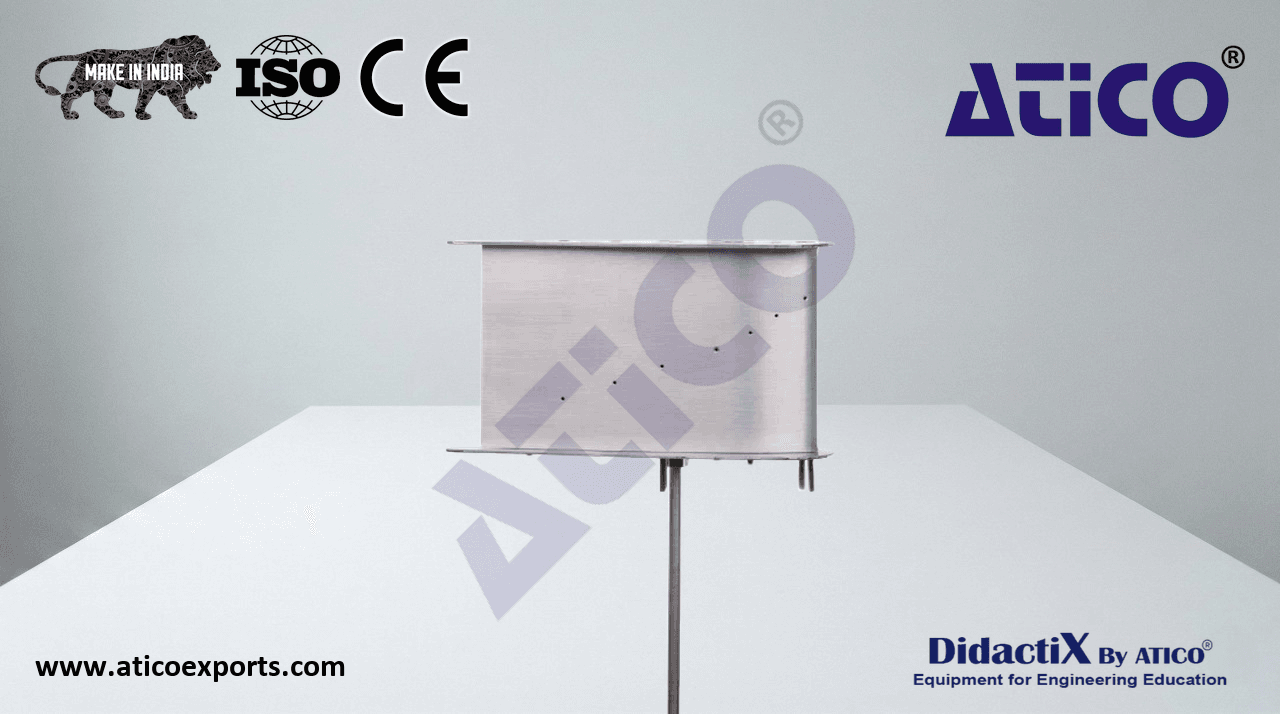

Pressure distribution on an aerofoil

Measuring the pressure distribution around an aerofoil profile immersed in a flow teaches students the fundamental knowledge for developing effective lift on the aerofoil. In order for lift to occur on a body immersed in a flow, there must be low pressure on the underside of the body and high pressure on the upper side. The pressure distribution on a body immersed in a flow is clearly demonstrated with this experiment. Learn about Pressure distribution on an aerofoil specifications for optimal educational outcomes..

• determining the pressure distribution on an aerofoil immersed in a flow
• accessory for the wind tunnel
• bracket made of corrosion-resistant steel
• aerofoil profile
• 16 measuring points with hose connections
• display of the static pressures on the tube manometers or in the electronic pressure measurement system
