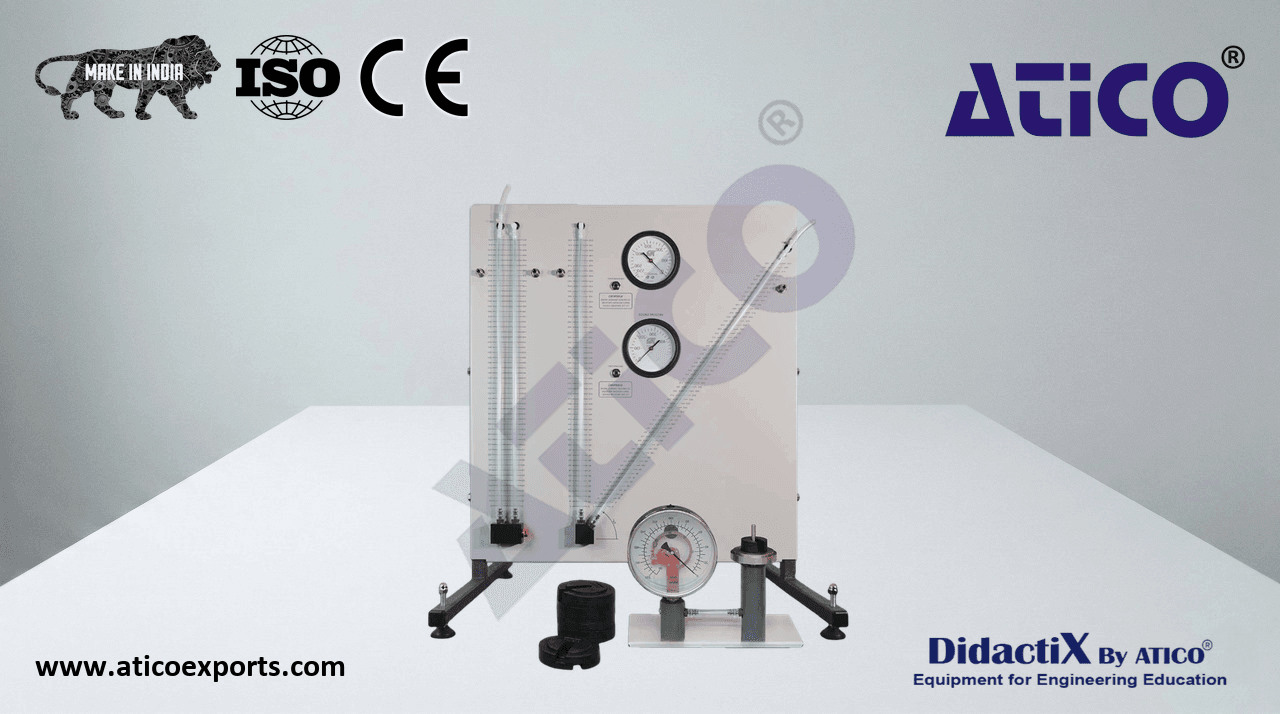

PRESSURE MEASUREMENT BENCH

A bench mounting apparatus to enable practical demonstrations and investigations into pressure and vacuum measurement techniques using manometers and Bourdon type gauges.

This Pressure Measurement Bench allows students to investigate measurement of one of the fundamental parameters present in almost every branch of engineering and physics. A bench top, panel mounted U tube and inclined tube manometer together with a positive pressure Bourdon tube pressure gauge and compound (positive and negative) pressure gauge are provided, along with a means of creating measurable pressures. The manometers allow investigation of the use of U and inclined tubes for pressure measurement and demonstrate the use of fluids of different density. Learn about PRESSURE MEASUREMENT BENCH for educational labs for optimal educational outcomes.. All manometers and panel mounted pressure gauges may be interconnected and linked to a common pressure source.
