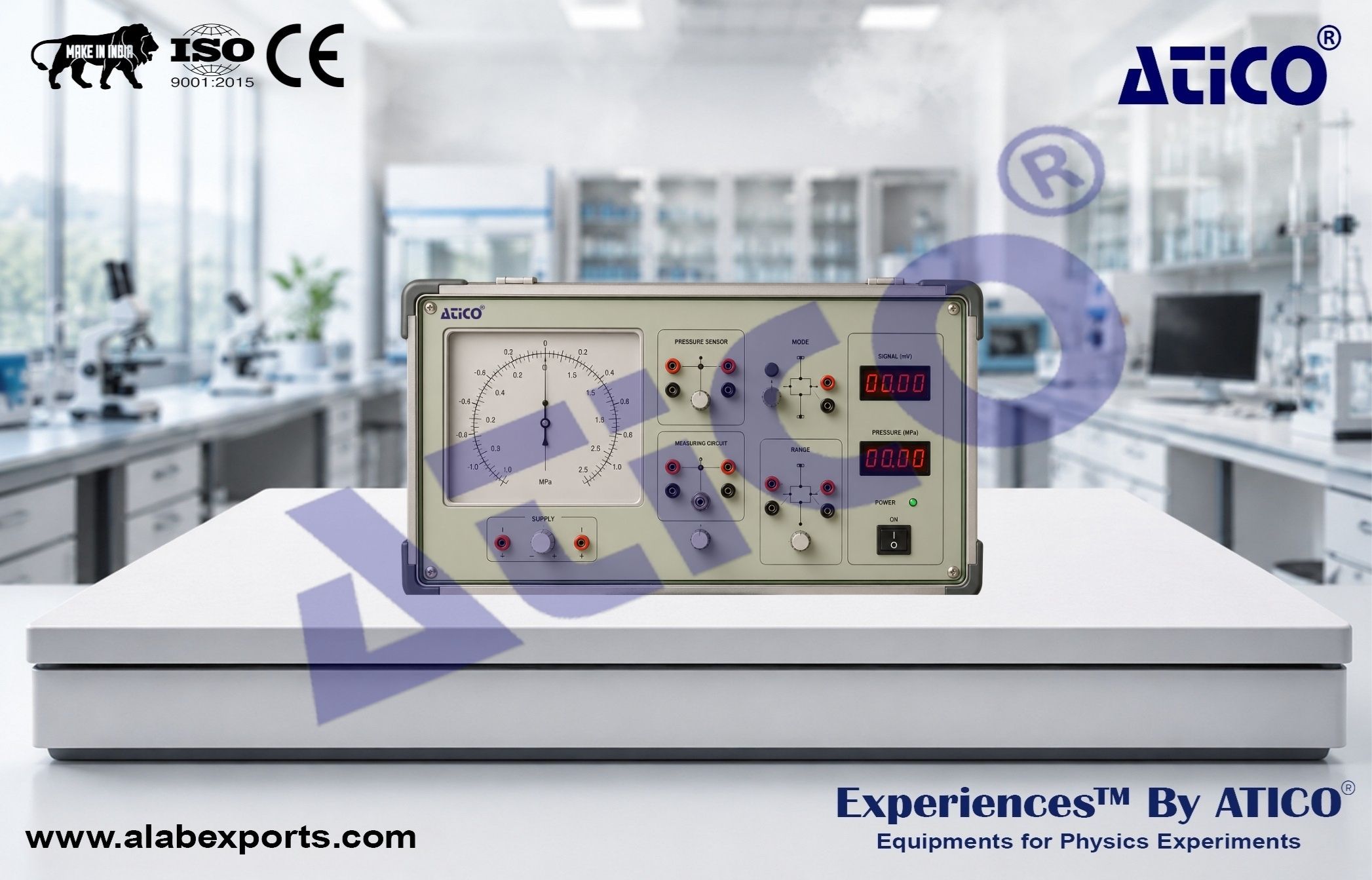

Pressure Sensor and Measurement of Heart Rate and Blood Pressure Experiments

This apparatus is designed to study gas pressure sensing, pressure measurement techniques, and basic biomedical instrumentation. It enables the construction and calibration of a digital pressure gauge, measurement of pulse waveforms and heart rate, and determination of human blood pressure. The system can also be used to verify Boyle’s Law and observe pulse waveforms using an optional oscilloscope. Manufactured by Atico Export India.

Output :

• 5 V, 0.5 A × 2

Range :

• 0 to 199.9 mV

Resolution :

• 0.1 mV

Range :

• 0 to 1.999 V

Resolution :

• 1 mV

Measuring Range :

• 0 to 40 kPa

Equivalent Scale :

• 0 to 300 mmHg

Measuring Range :

• 0 to 120 counts/min

Data Hold Function :

• For 10 measurements

Measuring Range :

• 0 to 40 kPa

Linearity :

• ±0.3%

Analog Output :

• Provided

Medical Stethoscope :

• Included

Parts Included :

• Main Unit – 1
• Pulse Sensor – 1
• Medical Stethoscope – 1
• Blood Pressure Cuff – 1
• 100 mL Syringe – 2
• Rubber Tubes and Tee Connectors – 1 Set
• Connection Wires – 12
• Power Cord – 1
• Instruction Manual – 1

• Supports sensor calibration and pressure measurement experiments.
• Suitable for heart rate, pulse waveform, and blood pressure studies.
• Provides practical understanding of gas laws and biomedical measurement techniques.
