Pressure Vessel and Safety Features Training Unit

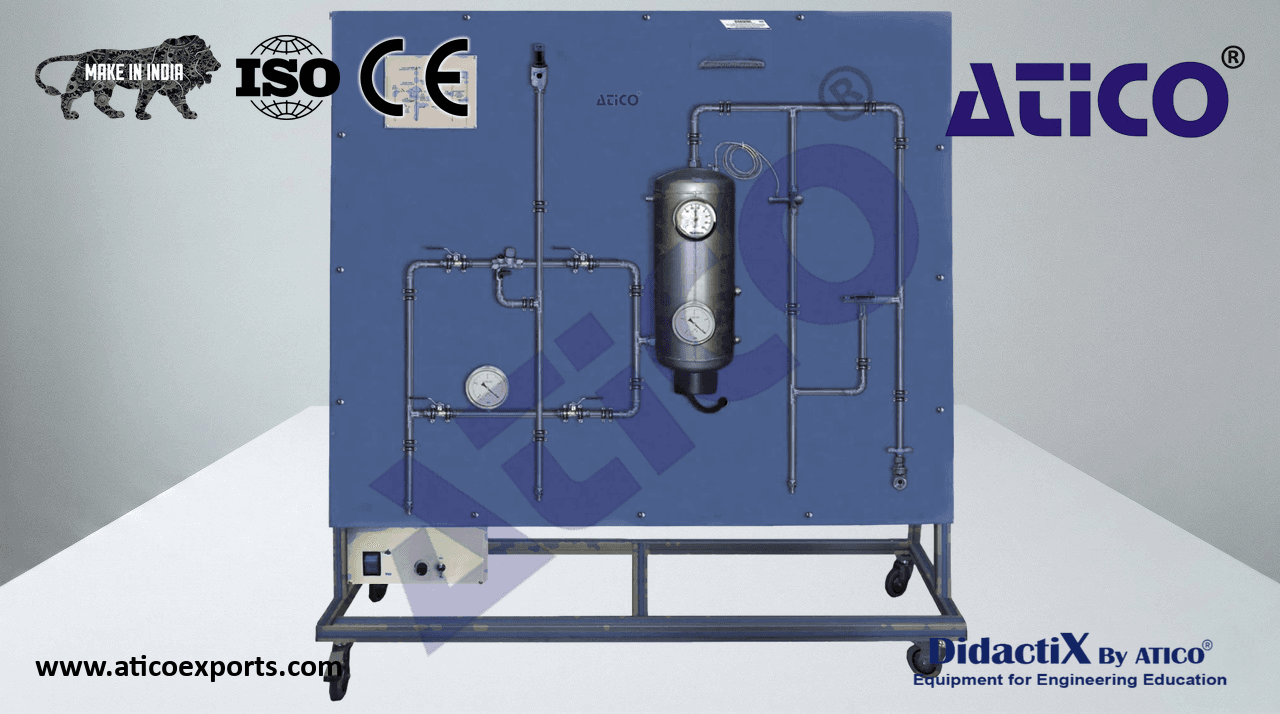

The Pressure Vessel and Safety Features Training Unit, is an experimentation of sanitary and heating techniques unit that allows studying the safety elements of a heating system with a pressure tank.

ATENG 12733 — Pressure Vessel and Safety Features Training Unit

Anodized aluminum frame and panels in painted steel.

The unit includes wheels to facilitate its mobility.

Main metallic elements made of stainless steel.

Diagram in the front panel with distribution of the elements similar to the real one.

• Pressure vessel of stainless steel:
• Capacity: 6 l approx.
• Maximum pressure: 8 bar approx.
• It includes:
• Bourdon manometer, range: 0 – 10 bar.
• Bimetallic thermometer, range: 0 – 150 °C.
• Heating device:
• Power: 3 kW.
  Thermal safety valve.
  Safety group with pressure relief valve.
• Bourdon manometer, range: 0 – 10 bar.
  Pressure relief valve.
• Control panel:
  Heating element switch.
  Heating element controller.
  Main switch.
  Cables and Accessories, for normal operation.
