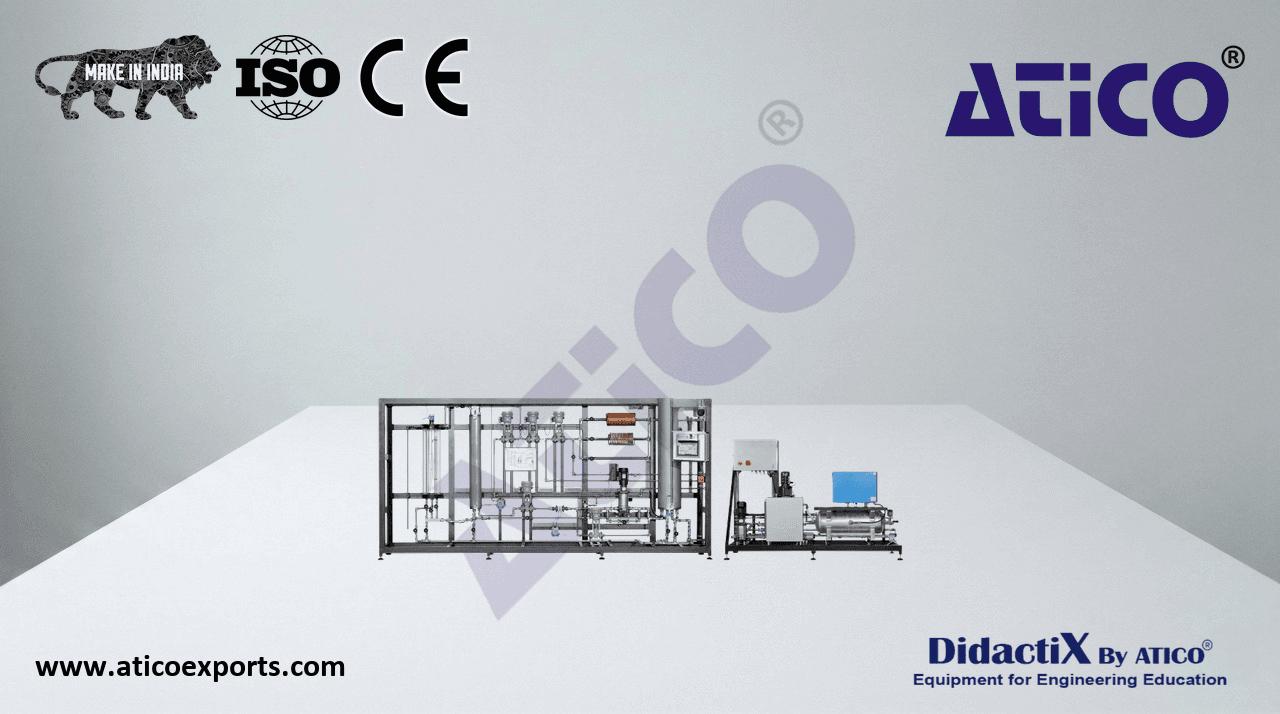

Process control engineering experimental plant

The supply of processes with media such as water and compressed air in industry is usually provided from a separate, centralised supply unit. Control and monitoring of the processes are also centralised. RT 590 represents such a practical scenario. Learn about Process control engineering experimental plant Mechatronics Trainers9 India for optimal educational outcomes.. The experimental plant includes a separate supply unit and a trainer with touch screen for controlling and monitoring the processes.

• control of level, flow rate, temperature and cascade control with water as working medium
• pressure control with compressed air as working medium
• trainer with pump and 3 tanks
• supply unit with compressor, pressure vessel, pump and heater supplies compressed air, warm and cold water
• first order level control with or without counter pressure, or second order level control
• temperature control with three delay sections
• 5 electropneumatic control valves and a speed-controlled pump with frequency converter as actuators
• practical fault analysis using simulated typical faults, e.g. cable break
• plant control via PLC with touch screen or process control software
• network capability: LAN/WLAN connection of any number of external workstations with software for observation and evaluation of the experiments
• process control software with data acquisition via LAN under Windows 11
