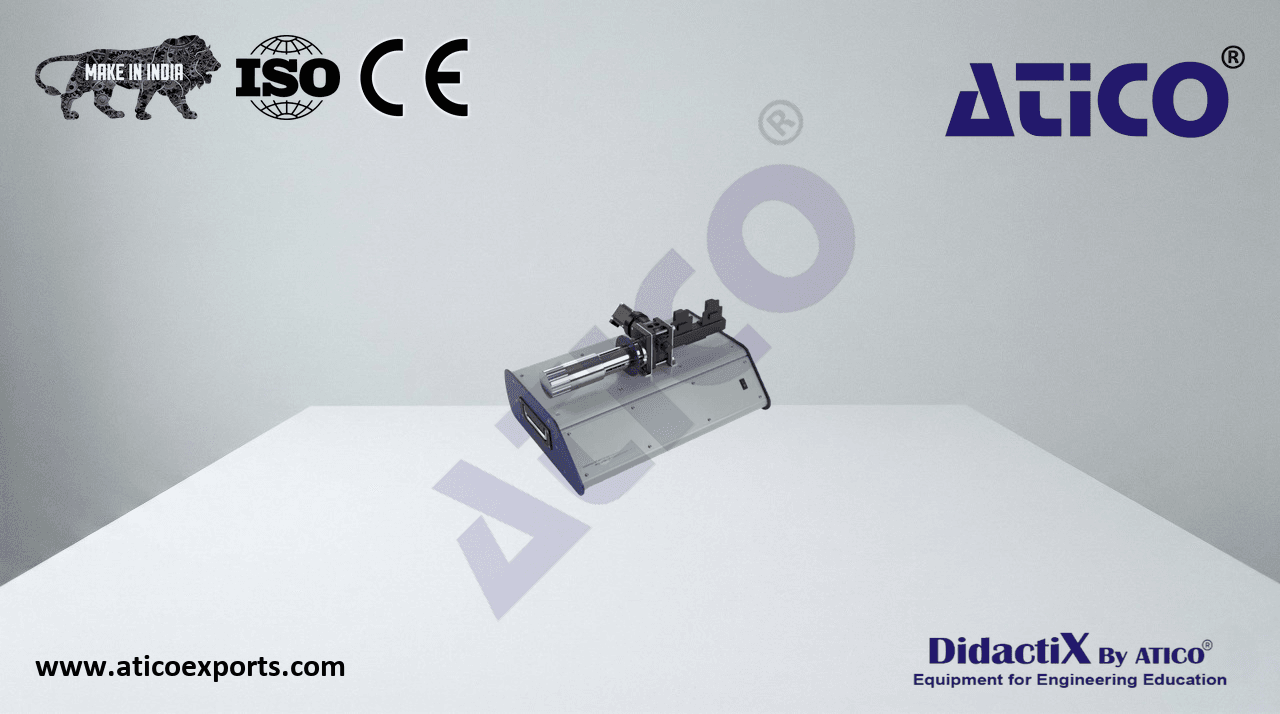

Programming a servo drive

The IA 501 device is used to develop software programs that are tested directly on the device. The experimental unit is a supplement to the IA 500 device and uses the same drive motor in both units.

• servo drive of a worm gear screw jack
• supplement to IA 500, process automation
• part of the DigiSkills programme
• programming the motor controller (stepper motor)
• manufacturer software for the motor: Plug&Drive Studio from Nanotec
• path measurement via linear potentiometer
• can be operated manually via crank
• software for communication with the experimental unit
• multimedia instructional materials online in Media Center
